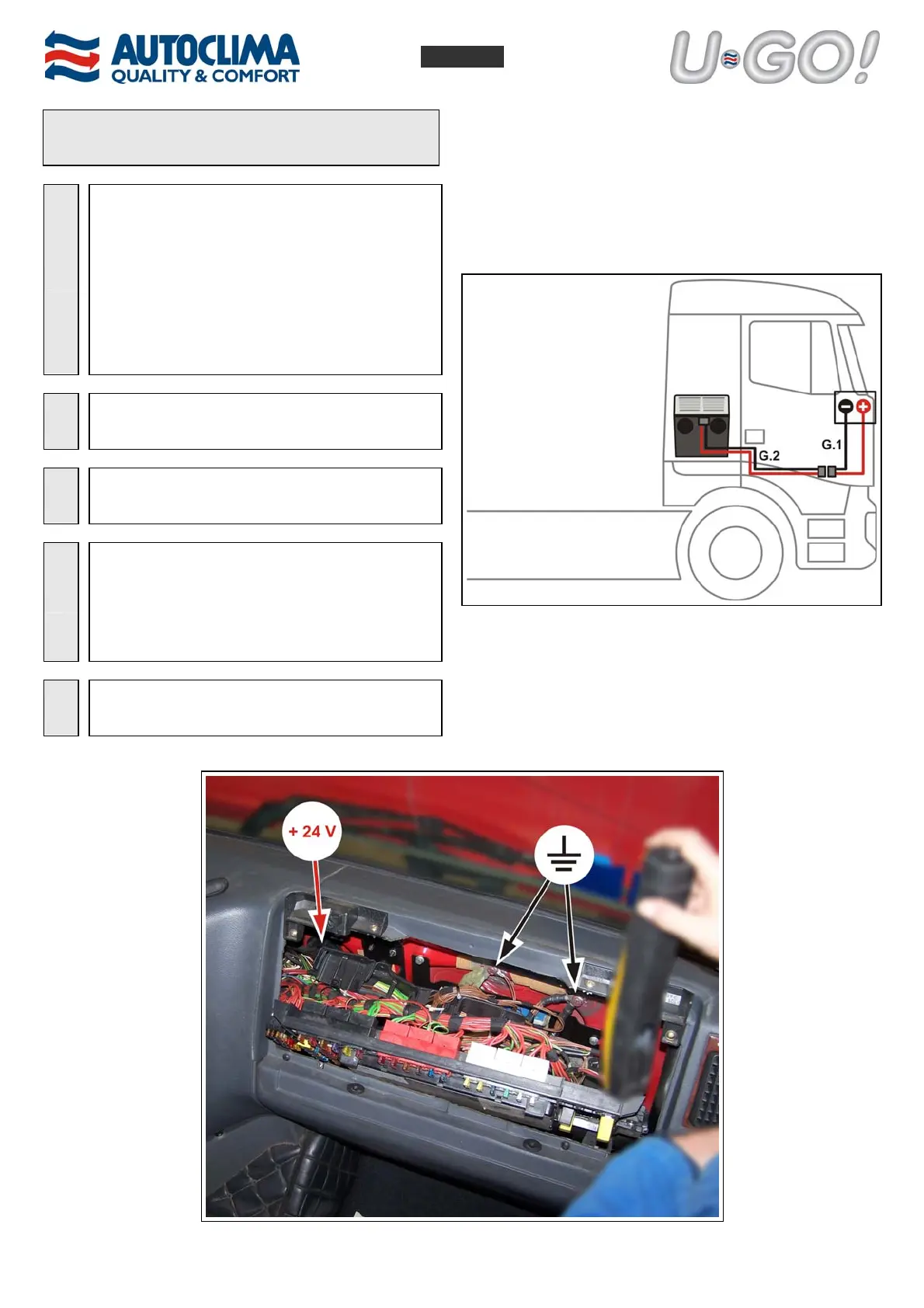

Method for connection to the power and grounding
points:
Normally the vehicles have one or more points in
which the 24V power is fed directly from the
battery; these points are normally used to
connect utilities, so that the battery doesn’t have
to be directly accessed.
They are normally located behind the dashboard
on the passenger’s side in the relay and fuse
section and can be readily recognised from the
large cables they use.
1
Identify the positive terminal + (red cable) and
the mass - (black cable).
2
Connect the bridle’s (G.1) power wiring eyelets to
the relative terminals (red wire + / black wire -).
3
Slide the bridle (G.1) for example behind the
dashboard, under the carpet and leave it there.
By leaving the bridle permanently connected, you
can now have “U-GO”’s power supply at your
disposal.
4
Connect the extension cable (G.2) to the bridle
(G.1) and to “U-GO”.
