Diamond PD Power Drive : Instruction Manual
Shed Master Instruction Manual GDO-8V3
23
© Copyright 2017

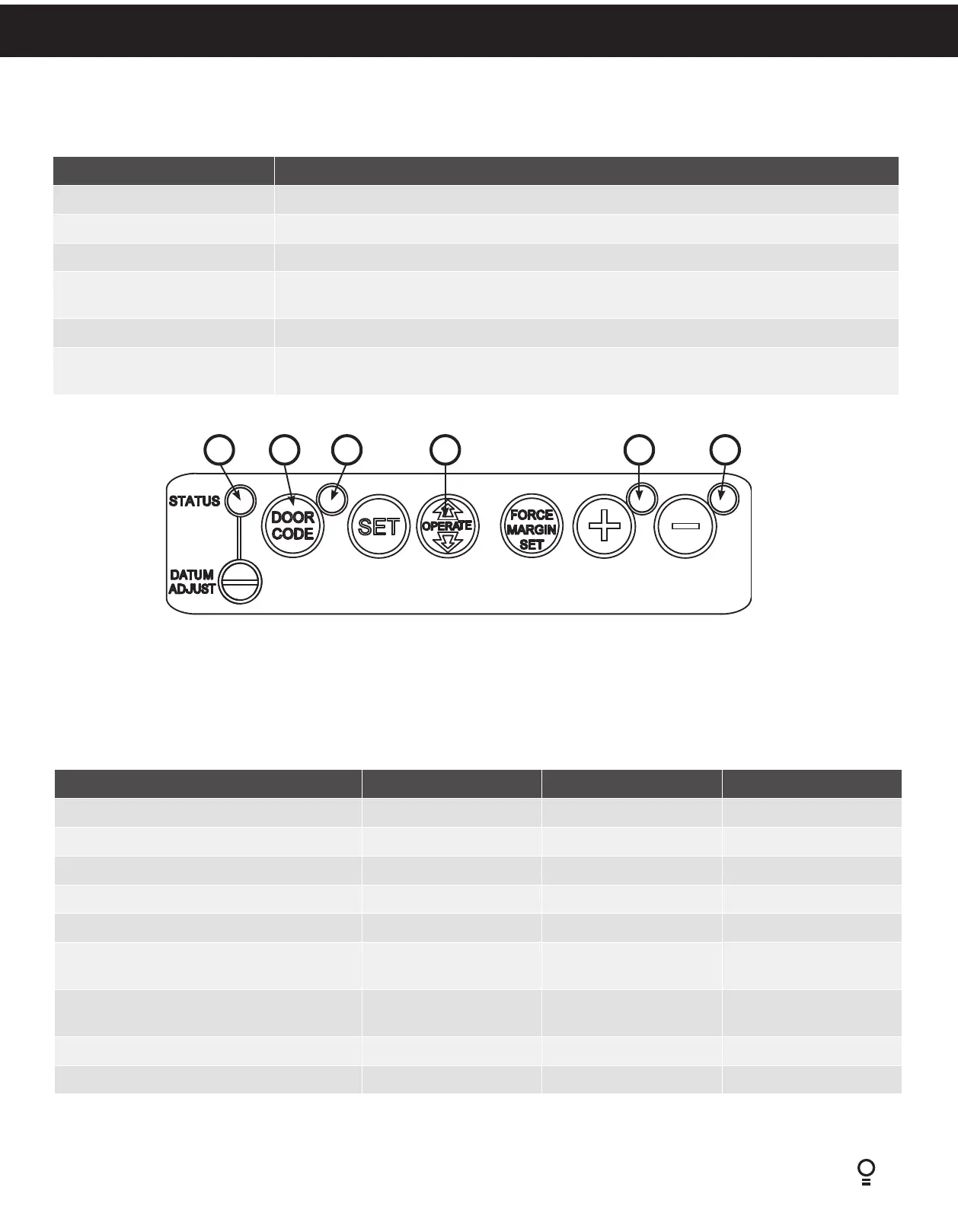

7.2 User Operating Controls
7.3 Door Status Indicators
05
06
01
0203 04
Button Function
1. OPERATE Opens/stops/closes the door
2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed
3. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation
4. PLUS (+) LED (Green) Illuminates and flashes as the door opens and remains on when the open limit position has
been reached.
5. DOOR STATUS LED (Yellow) Illuminates when Service is due.
6. MINUS (-) LED (Red) Illuminates and flashes as the door opens closes, and remains on when the close limit
position has been reached.
Door Status Indicators PLUS (+) LED (green) MINUS (-) LED (red) Beeper
Open On
Close On
Opening Flashing
Closing Flashing
Door travel stopped Flashing Flashing
Door obstructed when opening Flashing Beeps while door is
moving
Door obstructed when closing Flashing Beeps while door is
moving
Opener overloaded Alternating flashes Alternating flashes
Mains power interrupted Rapid flashes
Fig.7.3
