Chapter 2: Installation
Page 2–3SureServo2 User Manual – 1st Edition – 05/20/2021
Parameters DI/DO Codes MonitoringWiring Alarms
Attention:
•

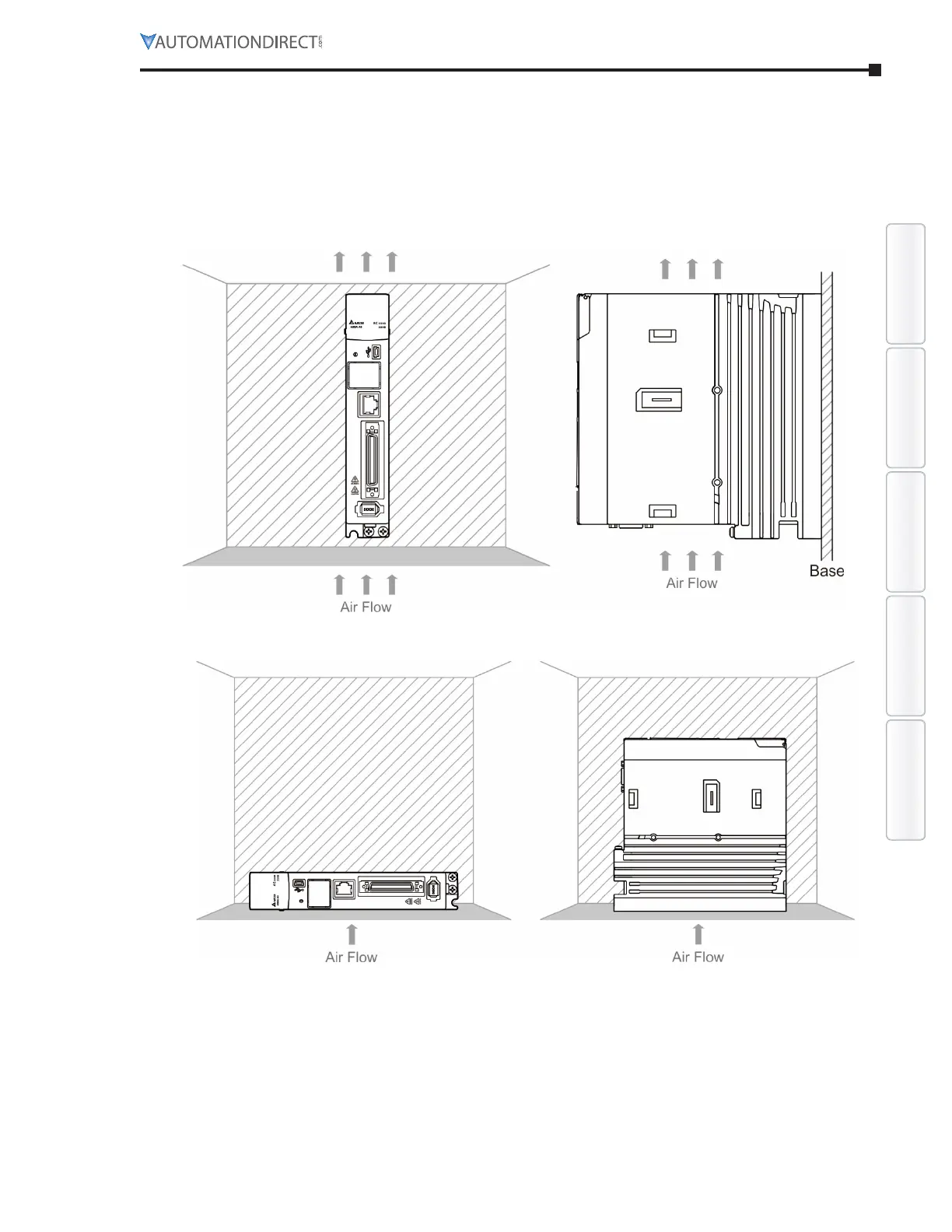

Mount the servo drive according to the illustration below� The base of heat sink must be
mounted vertically on the wall� Incorrect installation may result in a drive malfunction�
•
For better ventilation and cooling, make sure there is sufficient space between the adjacent
objects and the wall; otherwise, product malfunction may occur�
•
Do not obstruct the ventilation holes when mounting the servo drive� Make sure you mount it
in the correct orientation or malfunction may occur�
CORRECT
INCORRECT
