Chapter 2: Installation
Page 2–9SureServo2 User Manual – 1st Edition – 05/20/2021
Parameters DI/DO Codes MonitoringWiring Alarms

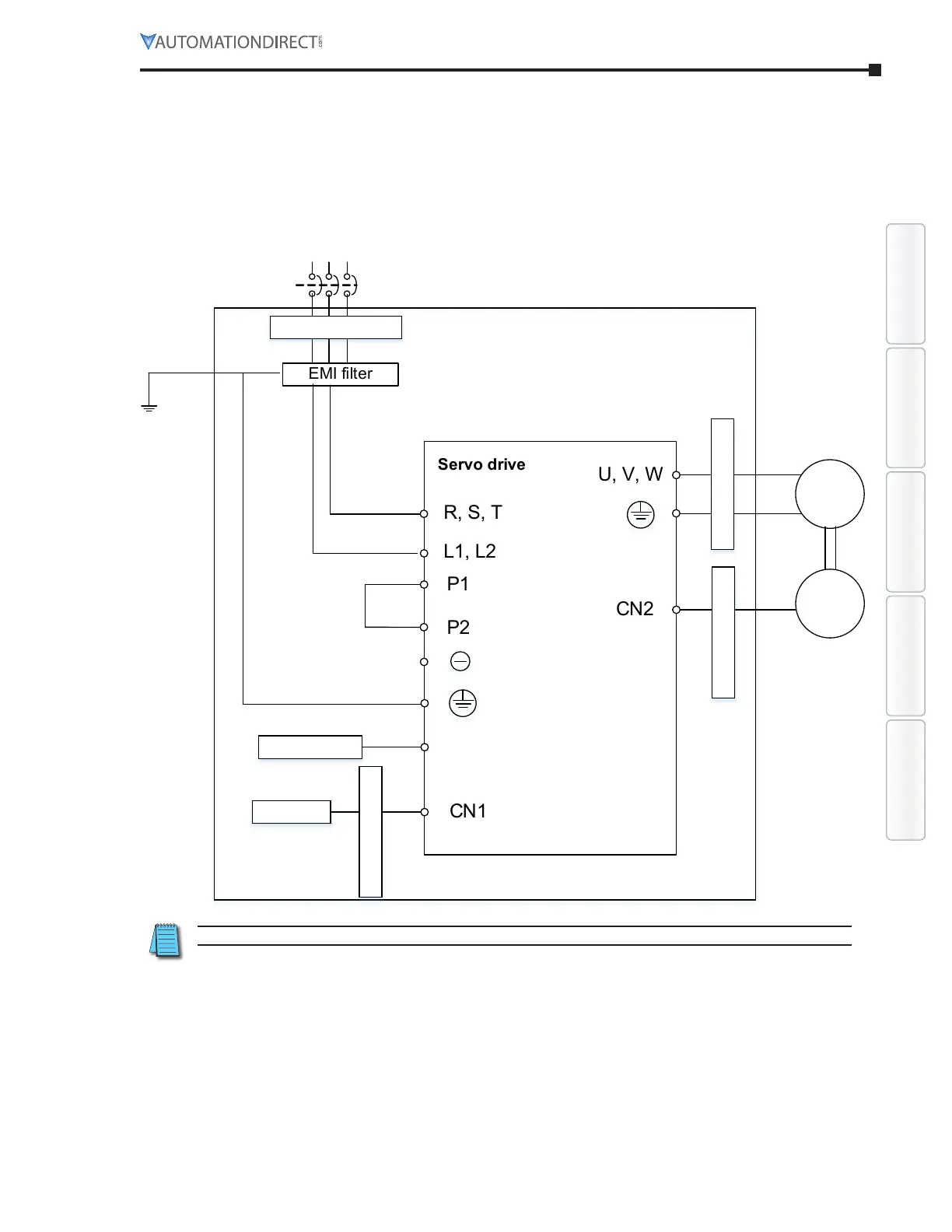

This section illustrates the installation requirements for passing the EMC test. Please note
that the EMC rating varies based on the installation structure or wiring. SureServo2 products
are designed to conform to the specifications of the EMC test. Please refer to the following
diagram for the standard installation. For further information and techniques on reducing EMI
and its affects please see the EMI best practices paper here:
https://support.automationdirect.com/docs/emi_mitigation.pdf
Servo drive
R, S, T
EMI filter
RS
U, V, W
MCCB
P1
P2
T
L1, L2
CN1
CN2
EMC Cable Clamp
EMC Cable Clamp
EMC Cable Clamp
Controller
EMC Cable Clamp
STO
Safety relay
Motor
Encoder
Shielded Metal Enclosure
*1
*1
*1
*1
*1
*1
Note *1: Use of shielded cables is highly recommended.
To Next Page
