Page 2–8 SureServo2 User Manual – 1st Edition – 05/20/2021
Chapter 2: Installation
Monitoring DI/DO Codes ParametersAlarms Wiring

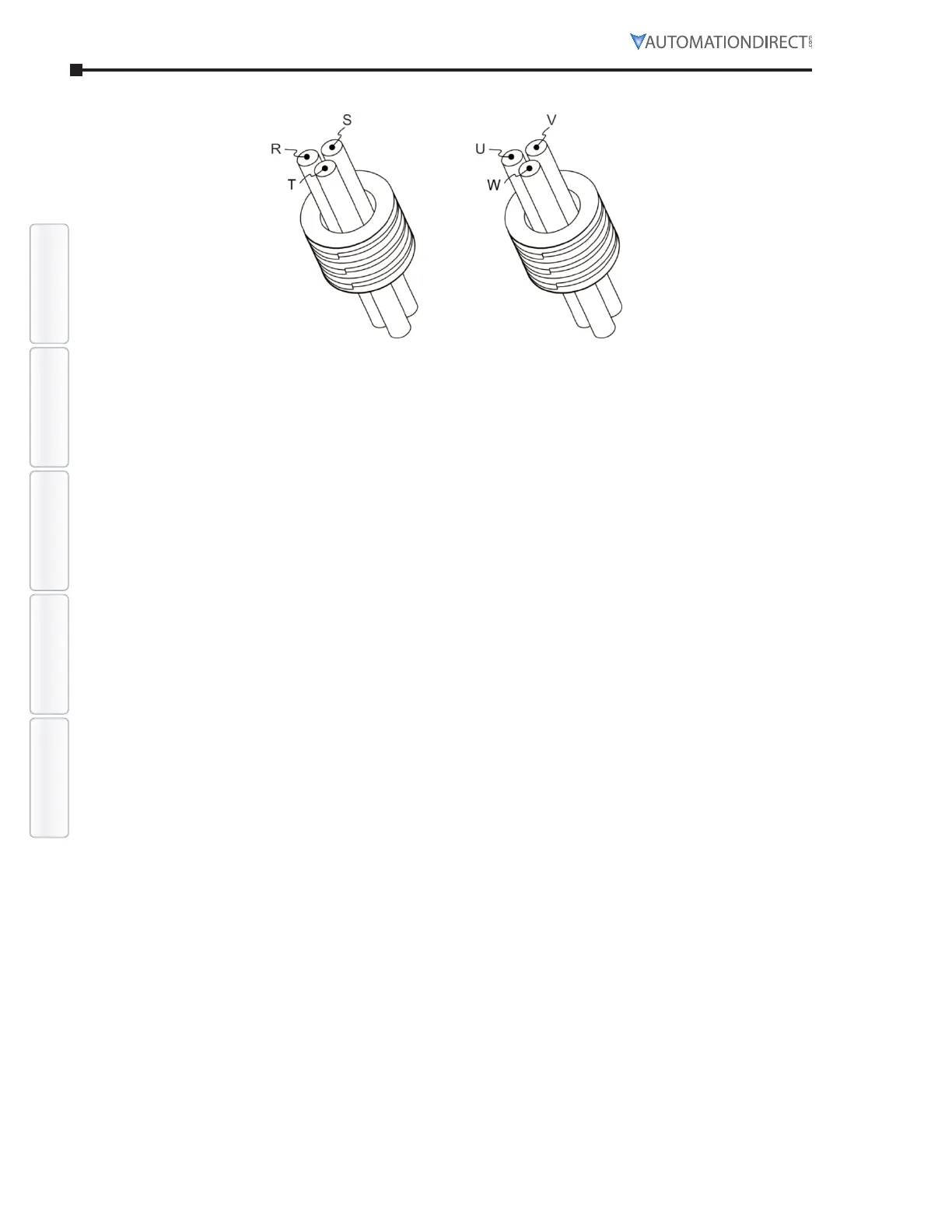

2) When the wire size (AWG) is too large to wrap around the ferrite core at least once:
Recommended for 5.5 kW and larger systems
Notes:
•
Please refer to Section 3�2 for the selection of the motor power cable�
•
Only the motor power cable or drive power cable can run through ferrite ring� If needed,
please prepare extra ferrite rings for grounding�
•
An EMI filter may be required for the drive input power for absorbing radiation when using a
longer motor power cable�
