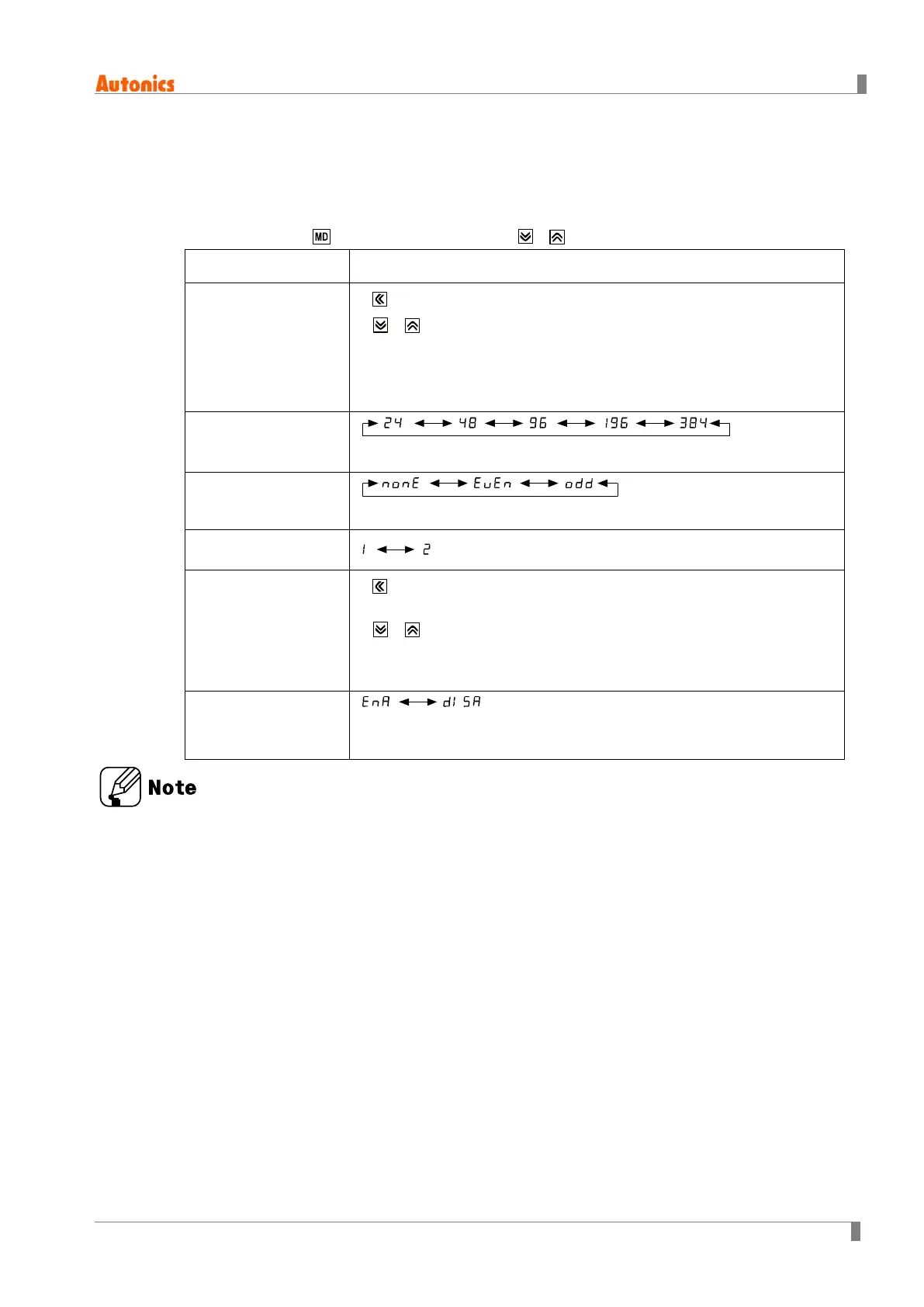

9.1 Parameter Setting (Counter/Timer)
( key: moves parameters, , key: changes parameter setting value)
Parameter Parameter setting value
Communication
address [ADDR]
※ key: To shift flashing digits of comm. address.
※ , key: To change the flashing digits.
※If the same address is applied during multiComm., it will not work
correctly.
※Setting range of Comm. address: 1 to 127
Communication speed
[BPS]
※Multiply 100 to read the setting value.
Communication parity
bit [PRTY]
※NONE: none, EVEN: even, ODD: odd
Communication stop
bit [STP]
Communication
response waiting time
[RSwT]
※ key: To shift flashing digits position of comm. response waiting
time.
※ , key: To change the flashing digits position value.
※For more information the setting range according to comm. speed,
refer to the 9.1.5 Communication response waiting time [RSwT].
Communication write
[COmW]
※ENA: Permits comm. write (enable),
DISA: Prohinits comm. write (disable)
※Communication parameters area are read coil status, read input register, read holding register.
※The operation in RUN mode does not stop during all area register read action and
setting value saving group write action of Read Holding Register.
※When changing counter/timer parameters of read holding register area, RESET starts.
※When changing communication parameters via communication, it does not reset.
Communicate starts when response about the dedicated query is completed by applying
the changed data.
※No communication models does not enter parameter 2 group.
