Autonics CX Series Manual

J-26
CX Series

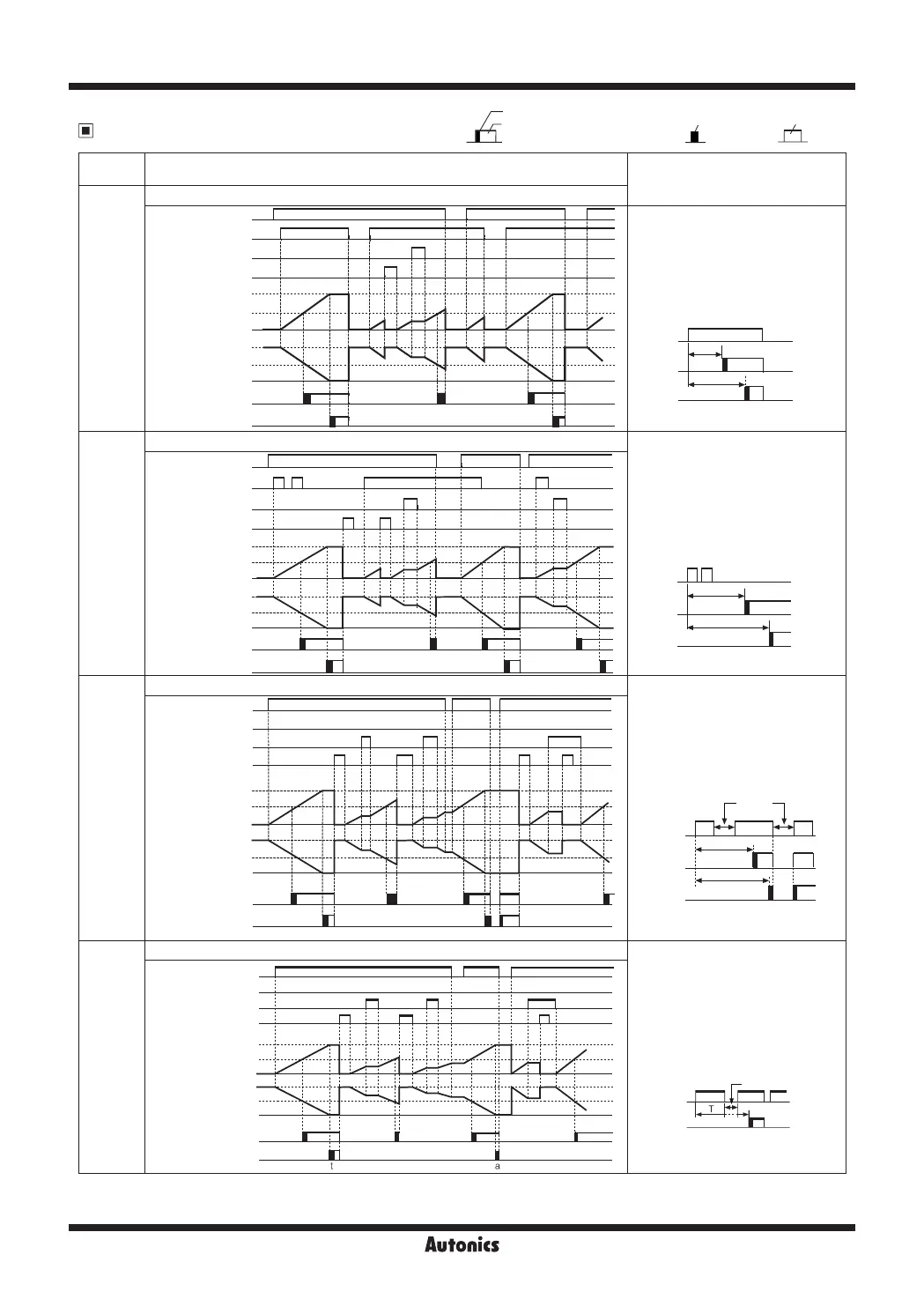

Output Operation Mode (Timer)
Retained output
One-shot output (0.01 to 99.99 sec)
Retained output
One-shot output
※
Power RESET: There is no memory protection. (resets the display value when power is off)
※
Power Hold: There is memory protection.
(memorizes the display value at the moment of power off, indicates the memorized display value when power is resupplied.)
Output
mode
Time chart
Operation
OND
[
OND
]
Signal On Delay (Power RESET)
RESET
Setting time 2
Setting time 2
Setting time 1
POWER
INA(START)
INH(INHIBIT)
Setting time 1
0
0
UP
Display
Down
OUT1
OUT2
1) Time starts when INA signal turns ON.
2) When INA signal turns OFF,
time resets.
3) When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
4) Control output operates as retained
(Hold) or one-shot output.
OND.1
[
ONd1
]
Signal On Delay 1 (Power RESET)
1) Time starts when INA signal turns ON.
2) When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) Control output operates as retained
(Hold) or one-shot output.
4) Only rst INA input signal is valid in
case INA input signal is repeatedly
applied.
RESET
Setting time 2
Setting time 2
Setting time 1
POWER
INA(START)
INH(INHIBIT)
Setting time 1
0
0
UP
Display
Down
OUT1
OUT2
OND.2
[
ONd2
]
Power On Delay 2 (Power Hold)
1) Power ON Time Start
(there is no INA function)
2) RESET ON: Time RESET
RESET ON→OFF: Time Start
3) Control output operates as retained
(Hold) or one-shot output.
4) It memorizes display value at the
moment of power OFF.
RESET
Setting time 2
Setting time 2
Setting time 1
POWER
INA(START)
INH(INHIBIT)
Setting time 1
0
0
UP
Display
Down
OUT1
OUT2
t a t-a
OND.3
[
ONd3
]
Power On Delay 3 (Power Hold/RESET)
1) Power ON Time Start
(there is no INA function)
2) RESET ON: Time RESET
RESET ON→OFF: Time Start
3) Control output operates as retained
(Hold) or one-shot output.
4) If time reached setting time at
the moment of power ON, it is
automatically reset.
RESET
POWER
INA(START)
INH(INHIBIT)
Setting time 1
Setting time 1
Setting time 2
Setting time 2
0
0
UP
Display
Down
OUT1
OUT2
T1: Setting time 1
T2: Setting time 2
INA
T1
T2
OUT1
OUT2
(OUT)
T1: Setting time 1
T2: Setting time 2
T1
T2
OUT1
POWER
HOLD
OUT2
(OUT)
T1: Setting time 1
T2: Setting time 2
INA
T1
T2
OUT1
OUT2
(OUT)
HOLD
POWER
OUT2
(OUT)
