Up/Down Counter/Timer
● Input mode: Up
● Input mode: Up/Down-A, B, C
● Up mode
● Input mode: Down
● Input mode: Up/Down-D, E, F
● Down mode
RESET
+Max. display value
0
RESET
+Max. display value
-Max. display value
0
RESET
INHIBIT
+Max. display value
-Max. display value
0
RESET
+Max. display value
-Max. display value
0
RESET
+Max. display value
-Max. display value
0

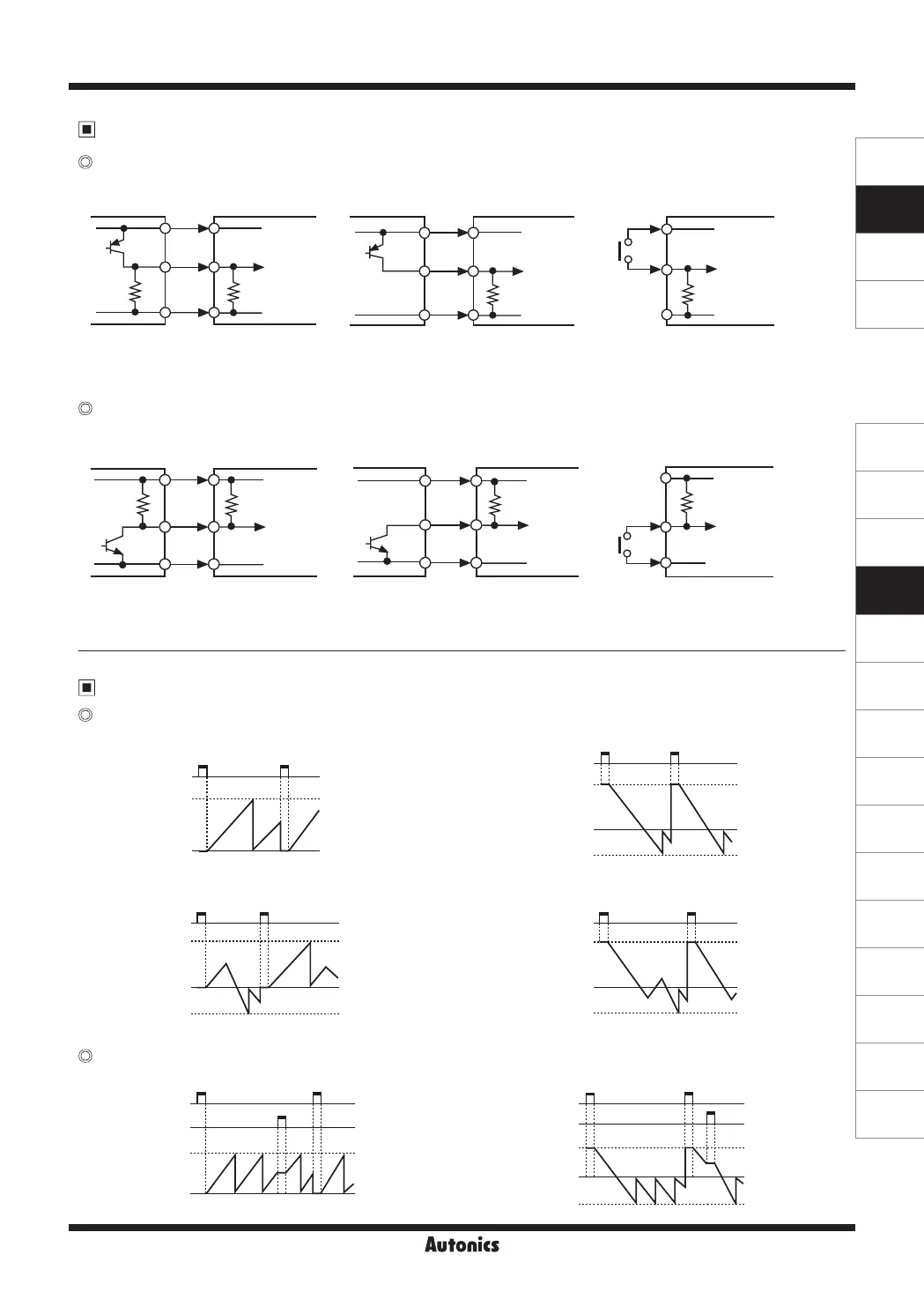

Counting & Time Operation
● Solid-state input (standard sensor: NPN output type sensor)
● Solid-state input (standard sensor: PNP output type sensor)
● Contact input
● Contact input
Input Connections
※
CP1, CP2 (INHIBIT), RESET input part
Sensor
※
Brown
Brown
Black
Black
Blue
Blue
※
+12V
+12V
Inner circuit
Inner circuit
10.8kΩ
10.8kΩ
0V
0V
SensorCounter/Timer
(PNP output)
(PNP open collector output)
Counter/Timer
※
+12V
Inner circuit
10.8kΩ
0V
Counter/Timer
※
Counting speed
: Set as 1 or 30cps
No-voltage input (NPN)
Voltage input (PNP)
Counting operation
Time operation
Sensor
Brown
Black
Blue
※
+12V
Inner circuit
5.4kΩ
0V
Counter/Timer
Sensor
Brown
Black
Blue
※
+12V
Inner circuit
5.4kΩ
0V
Counter/Timer
(NPN output)
(NPN open collector output)
※
Counting speed
: Set as 1 or 30cps
※
CP1, CP2 (INHIBIT), RESET input part
※
+12V
Inner circuit
5.4kΩ
0V
Counter/Timer
RESET
+Max. display value
INHIBIT
0
