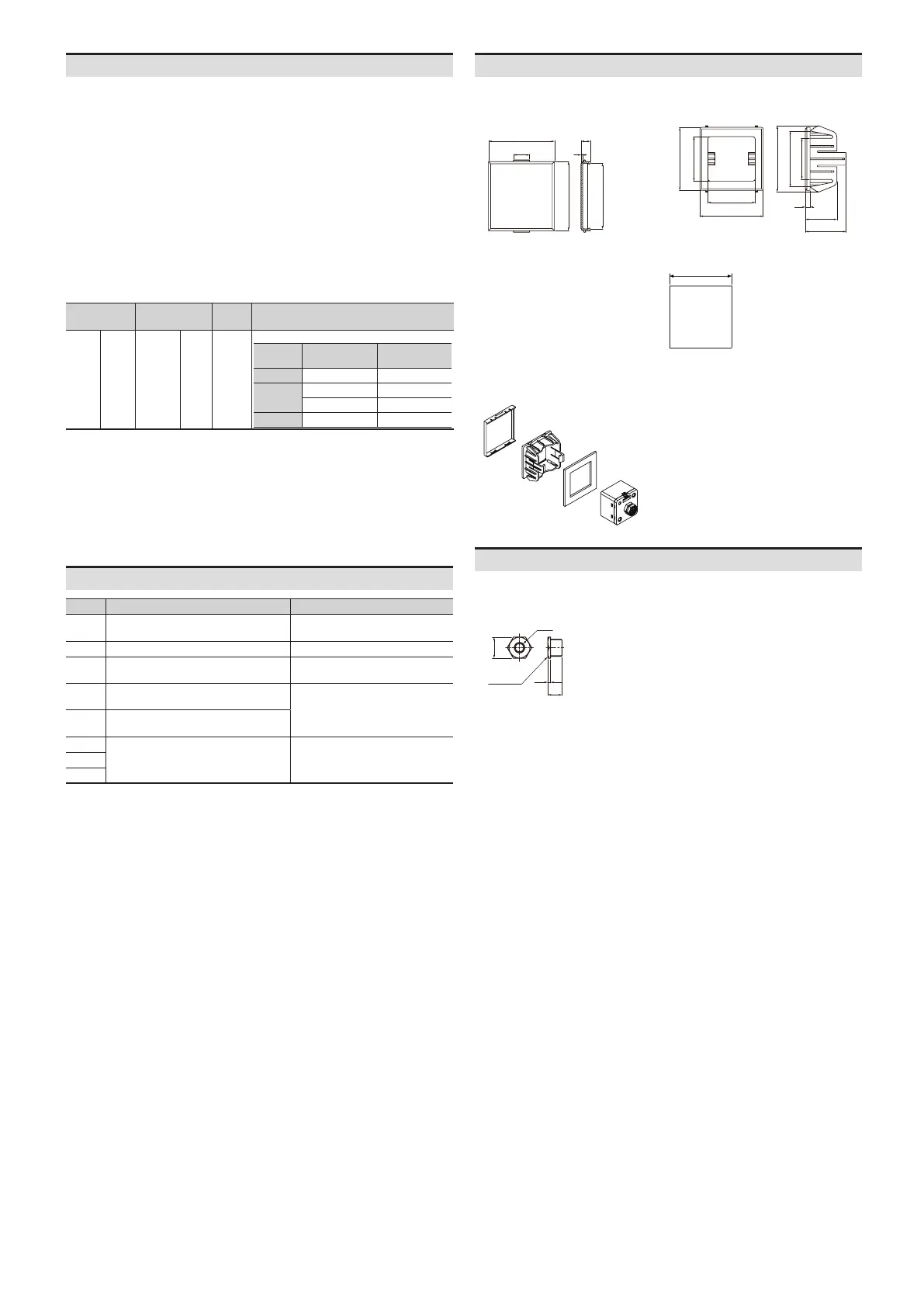

Precaution
• Auto shift correction is reset as 0 when changing P-2
OUT operation mode and preset
value.
• Preset setting range is wider than the rated pressure with the source pressure
uctuations.
• In case of forced output control mode or PV HHHH/LLLL, Auto shift function does not
operate.
[Parameter setting]
1. Select P-9 External input terminall: SHFT.
2. Press the [▲] key for over 3 sec. in RUN mode to enter Max / Min monitoring / Auto
shift menu.
3. Press the [M] key to entering Auto shift setting and press the [▼] or [▲] key to
change preset.
4. When reset the set correctiong value, press the [▼] + [▲] keys for over 1 sec .
[External input setting]
1. At the desired preset value pressure, maintain low level for over 1 ms of Auto shift
input (orange).
2. The pressure at this time is measured and applied after 7.5 ms and is stored in the
auto shift correction value.
mode
Preset Default
Auto-
shift
SHFT
Auto-shift
ShIN
0
Min. preset setting＜ SH.IN ≤ Max. preset setting
Pressure
Setting range
(after correction)
Setting range
(preset range)
Negavive -101.3 to 5.0 kPa -101.3 to 101.3 kPa
Static
-5.0 to 110.0 kPa -110.0 to 110.0 kPa
-50.0 to 1100 kPa -1100 to 1100 kPa
Compound -101.3 to 110.0 kPa -101.3 to 110.0 kPa
Error
Cause
ERR1
When external pressure is input while
adjusting zero point.
Try again after removing external
pressure.
ERR2 When overload is applied on control output Remove overload.
ERR3
When 'ST1', 'ST2' setting range is not met in
auto sensitivity setting mode.
Check setting conditions and set
proper setting values.
HHHH
When applied pressure exceeds high-limit of
display pressure range.
Apply pressure within display pressure
range.
LLLL
When applied pressure exceeds low-limit of
display pressure range.
-HH-
Auto shift correction error.
Set the corrected setting value within
setting pressure range.
-LL-
-HL-
• Unit: mm, For the detailed drawings, follow the Autonics website.
8.1
1.6
M5
PT1/8,
NPT1/8
12
• Unit: mm, For the detailed drawings, follow the Autonics website.
42
9.7
40
40 5.7
1
28.2
40
30
40
42
35
26
3
20
25.8
• Panel cut-out
Panel thickness: 0.8 to 3.5 mm
□36
+0.5
0
• Panel thickness: 0.8 to 3.5 mm
Front cover (PSO-P01)
Installation panel
Panel bracket (PSO-B02)
Pressure sensor
