Autonics TC Series User Manual

H-62
TC Series
※

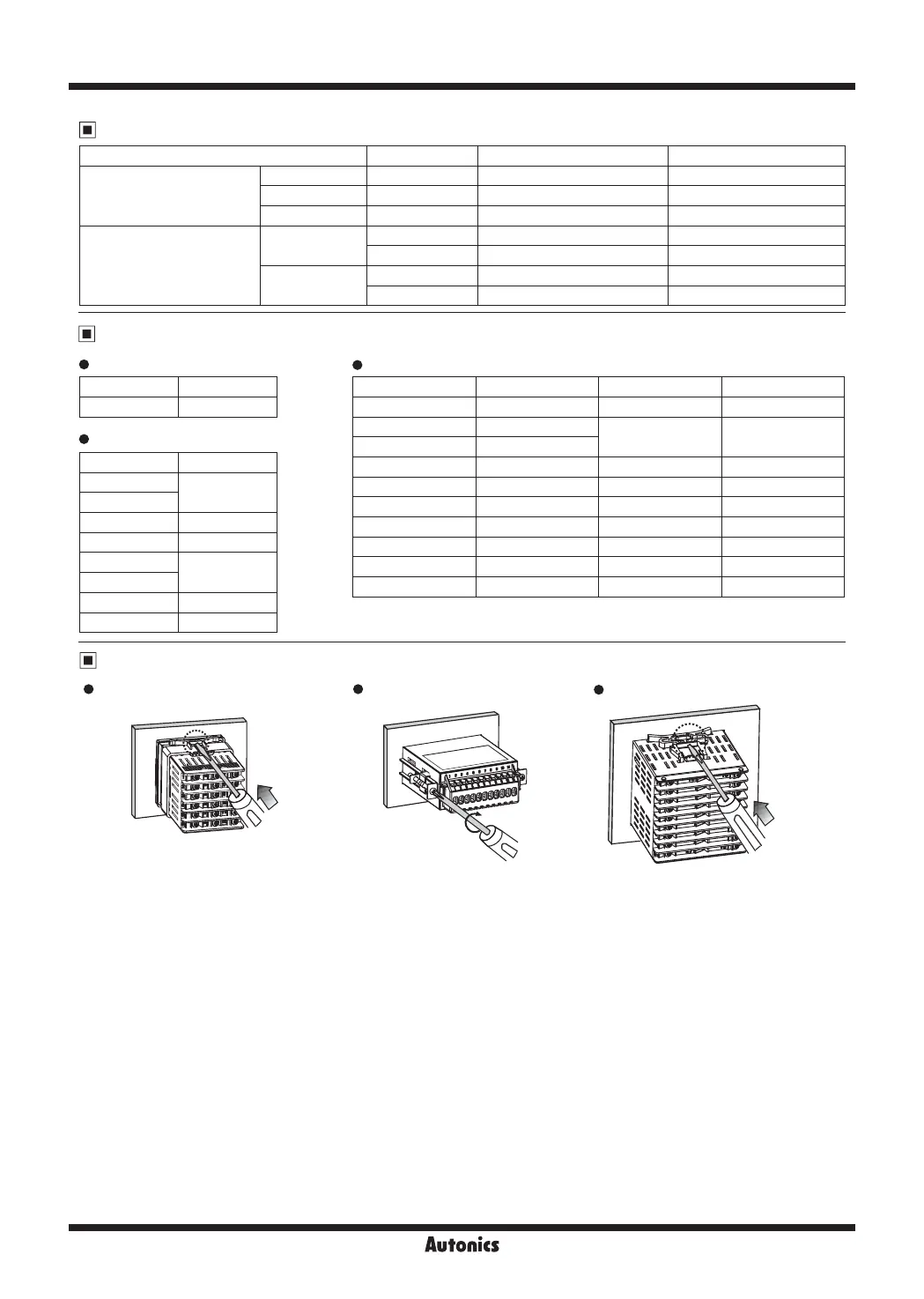

Mount the product on the panel, fasten bracket by pushing with tools as shown above.
(In case of TC4Y, fasten bolts for bracket.)
TC4S/SP (48×48mm) Series TC4Y (72×36mm) Series Other Series

Mounting
※
AC/DC power type has no SSR drive output method [
SSrM
] and supports only ON/OFF
output when selecting
SSR
in control output [
OUT
].

Factory Default
SV setting
Parameter group 1
Parameter group 2
Parameter Factory default
-
0
Parameter Factory default
AL1
1250
AL2
AT OFF
P 01)0
I
0000
D
REST 05)0
HYS 002
Parameter Factory default Parameter Factory default
IN-T KCA T 02)0
UNIT ?C
AL-1 AMiA
IN-B 0000
MAvF 00)1 AL-2 AM@A
L-SV -050 AHYS 0001
H-SV 1200 LBaT 0000
O-FT HEAT LBaB 002
C-MD PID DI-K STOP
OUT RLY ErMV 00)0
SSrM STND LOC OFF

Input Sensor And Temperature Range [
IN-T
]
Input sensor Display Input range (
℃
) Input range (
℉
)
Thermocouple
K (CA)
KCA
-50 to 1200 -58 to 2192
J (IC)
JIC
-30 to 500 -22 to 932
L (IC)
LIC
-40 to 800 -40 to 1472
RTD
DPt100Ω
DPtH
-100 to 400 -148 to 752
DPtL
-100.0 to 400.0 -148.0 to 752.0
Cu50Ω
CUsH
-50 to 200 -58 to 392
CUsL
-50.0 to 200.0 -58.0 to 392.0
