Page - 19
INSTALLATION
Electrical Installation
WARNING - Failure to heed the following may result in permanent injury or death.
l RISK OF ELECTRICAL SHOCK - Disconnect all AC power when installing or servicing this system.
Follow all state, local, and National Electrical Code(s) (provincial and Canadian Electrical Code(s) if
applicable). Use copper conductors only.
l RISK OF ELECTRICAL SHOCK - All electrical connections should be made by a licensed electrician or
certified electrical contractor.
CAUTION - Failure to heed the following may result in equipment damage.
l Connecting 230 Vac to a unit that has been configured to 110-120 Vac will result in permanent damage
to the unit. Damage due to incorrect wiring is not covered under the warranty.
Mounting the Power Center
Choose a mounting location for the power center that is close to the circulation pump electrical
source.
The power center should be mounted in a vertical position on the wall (flat surface), no more
than 15 ft. (4.6 m) away from the ChlorSync
®
cell. The wiring inputs should be facing downward.
Electrical conduit (rigid or flexible) must be used and installed as per NEC guidelines.
Circuit Protection: Single-pole 20 AMP device for 115V installations, or a two-pole 20 AMP
device for 220V installations, at the electrical panel.
Input: 95-130 VAC, 50/60Hz, 220 Watts (2 AMP) or 220-240 VAC, 50/60Hz, 220 Watts (1 AMP).
Output: 22-39 VDC @ 7.5 AMPS maximum from the power center.

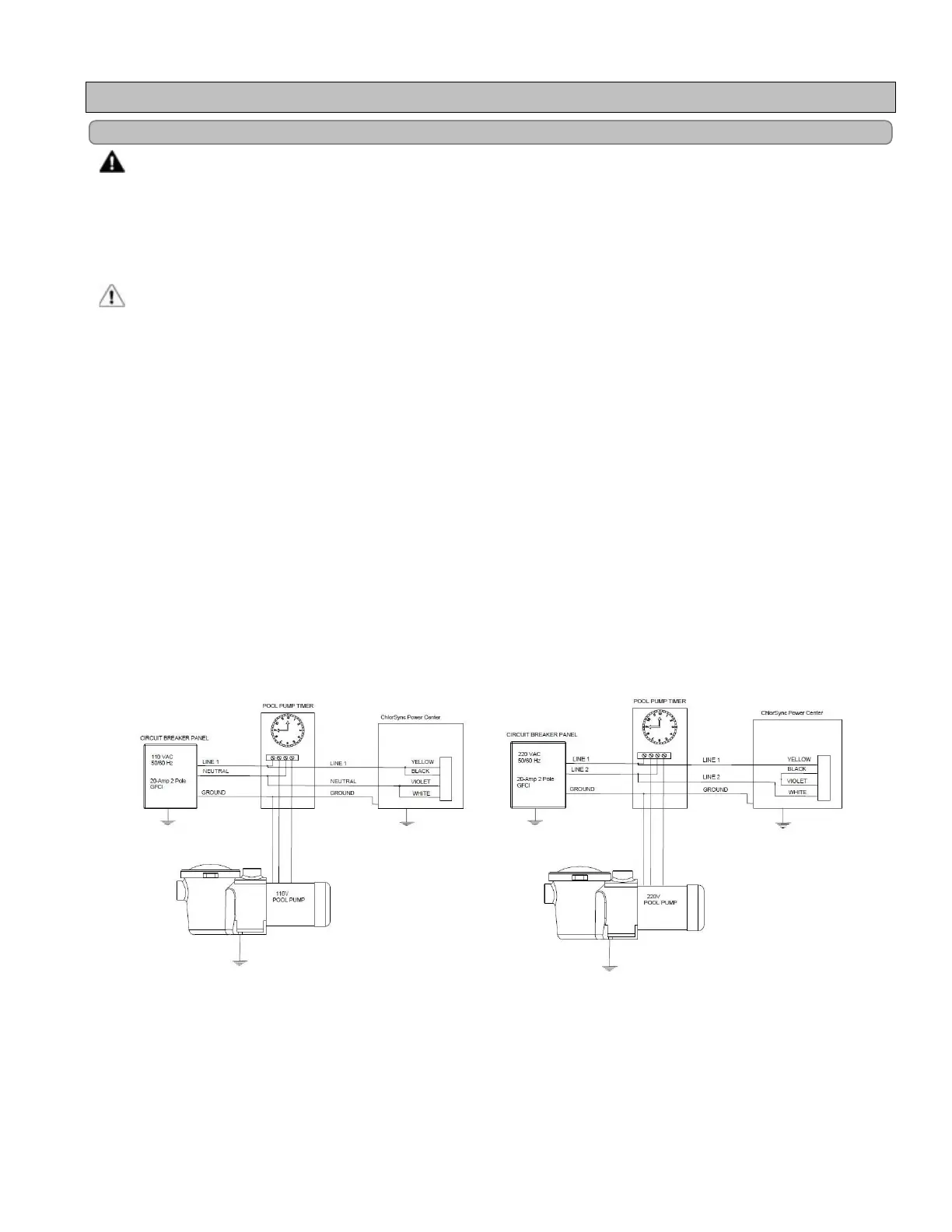

110VAC Basic System Wiring
Figure 8
220VAC Basic System Wiring
Figure 9
Connect power to the LINE side.
