Autostacker™ Parking Lift 24 P/N 5900248 — Rev. B — May 2021
Connect the Hydraulic Hoses
Both Hydraulic Hoses are routed through the Bottom Connector Tube, which is hollow.
If you have a Multi-Lift setup, this procedure will be different for you
; see Multi-
Autostacker towards the end of this manual for modified instructions.

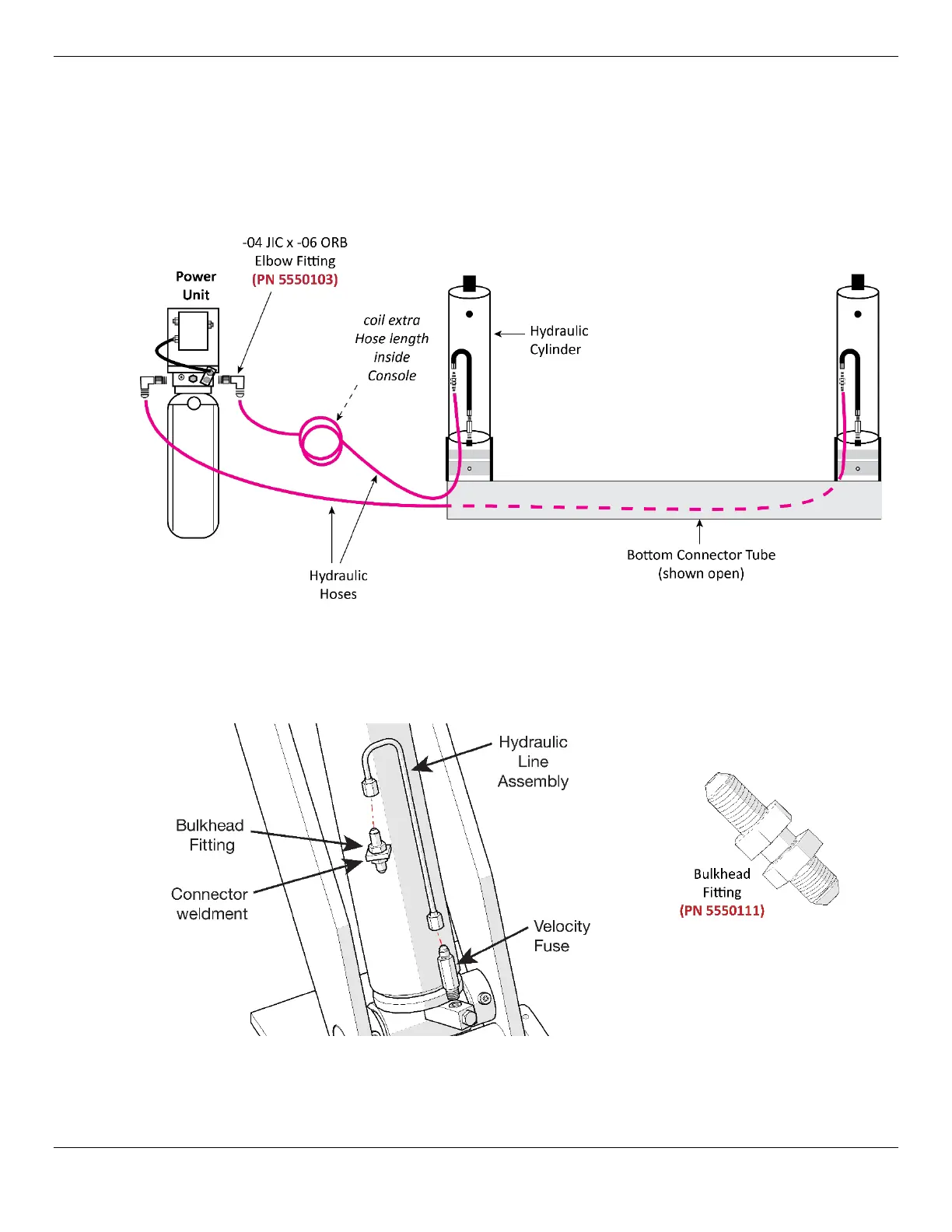

The following drawing shows how the Hydraulic Hoses are routed to the Hydraulic Cylinders.
Not drawn to scale. Sample Power Unit shown, Console not shown. Hoses are routed through the
Bottom Connector Tube.
The following drawing is a close-up of the connections to make to the Hydraulic Cylinders.
Not all components are shown.
