Autostacker™ Parking Lift 29 P/N 5900248 — Rev. B — May 2021
Depending on your Power Unit, the connector locations may be different. Use the drawing below to
identify your layout and then attach your Hydraulic Hoses and Return Line appropriately.
⚠ CAUTION The Hydraulic Power Ports are almost always labeled P1/P2; the Hydraulic Return
Ports are commonly labeled T1/T2 or CV1/CV2. Do not accidentally attach a
Hydraulic Hose to the Return Line Port. Your Autostacker will not work right unless
the Hydraulic Hoses and the Return Line are attached to the correct connector.

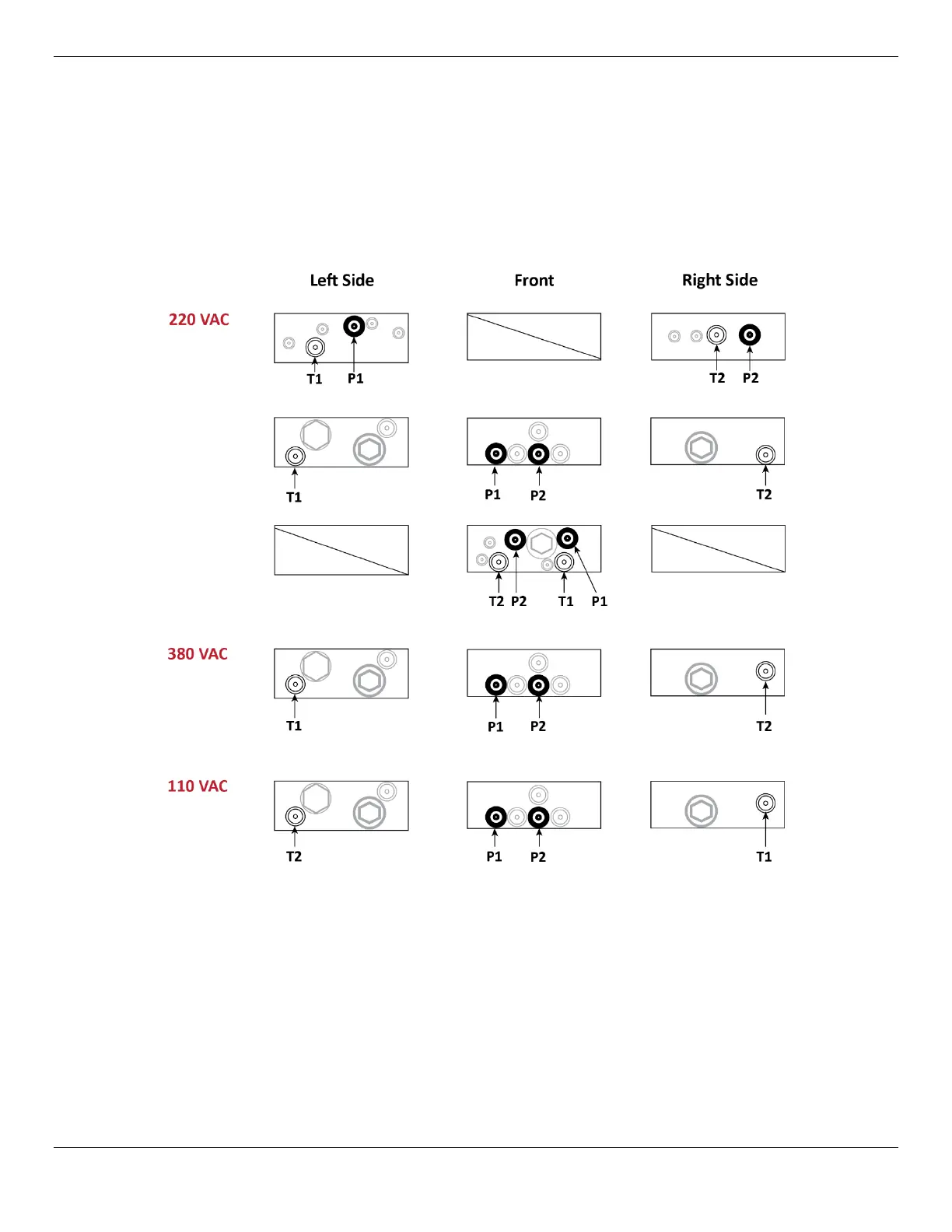

The following drawing shows the possible configurations for your Power Unit.
Not to scale. Not all components of the Power Unit shown.
