Connect the Power Unit
The Power Unit comes assembled from the factory. You need to attach it to the back of the Console
and then make the proper connections.
If you have a Multi-Lift setup, this procedure will be different for you
; see
Multi-Autostacker for more information.
The Power Units that can be used with your Autostacker include either 110 VAC, 220 VAC at 50/60
Hz, 1 Ph or 380 VAC at 50 Hz, 3 Ph.
⚠ DANGER All wiring
must
be performed by a licensed, certified Electrician.
Refer to Wiring Diagrams for wiring information.
⚠ CAUTION The Power Unit’s motor is
not
thermally protected.
The Power Unit has multiple connections:
• Two Hydraulic Hoses and One Return Line. Already in place and connected.
• Power Cable. The Power Cable on the Power Unit connects to the top of the Power Disconnect
Switch. A licensed, certified Electrician is required for this connection.
• Power Source. The Power Source connects to the bottom of the Power Disconnect Switch.
Also requires a licensed, certified Electrician.
• Controls. The Female (Molex™) Connector on the Power Unit connects to a Male Connector
coming down from the Controls in the Top of the Console.

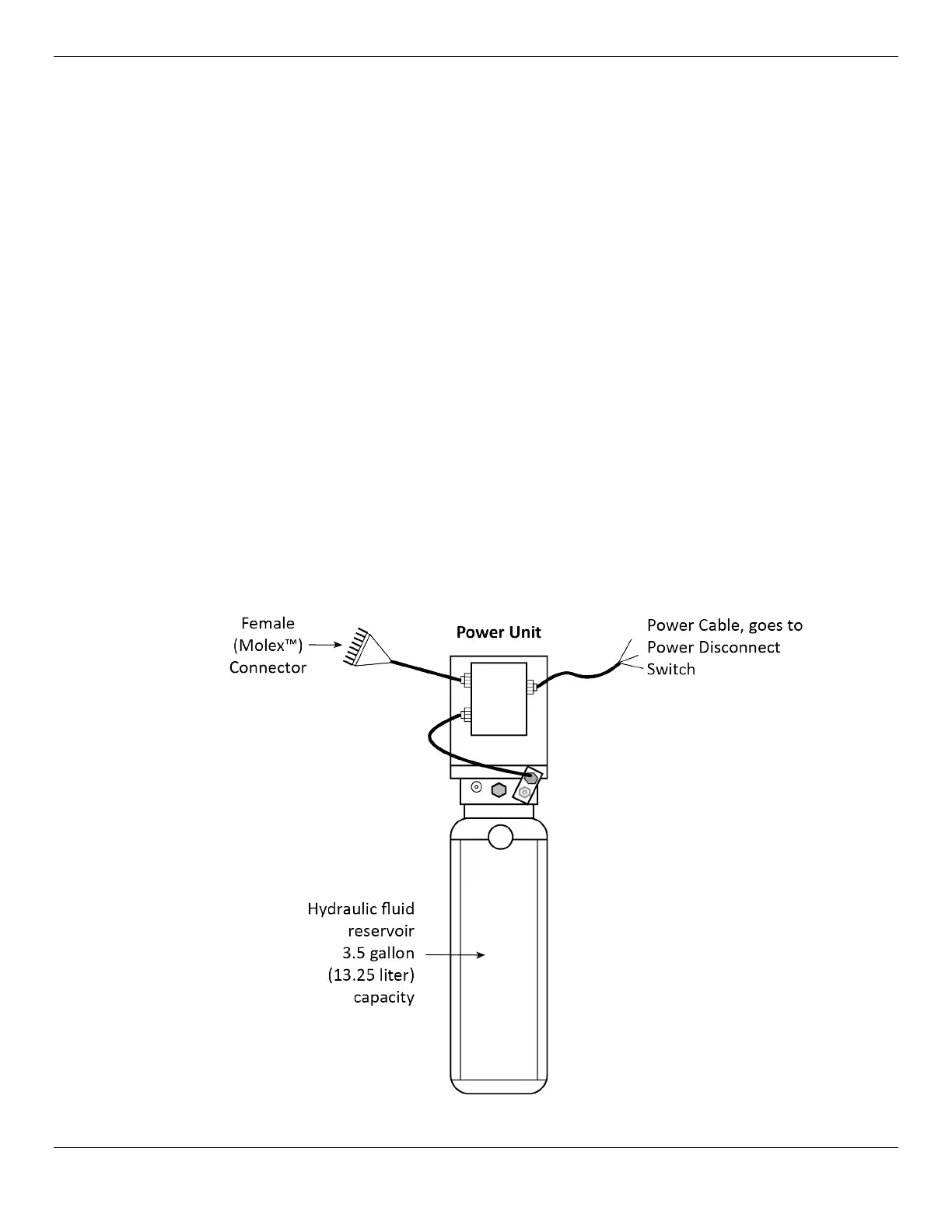

The following diagram shows a sample Autostacker Power Unit.
