Autostacker™ Parking Lift 46 P/N 5900248 — Rev. B — May 2021
Optional Access Panel
The Access Panel gives you access to the underside of the Vehicle that is raised on an Autostacker;
you can install up to two Access Panels per Autostacker.
An Access Panel is made up of two pieces:
• The Structure. Is bolted to the Lift in place of three Platform sections. Holds the Removable
Panel.
• The Removable Panel. Sits in the Structure. Remove to access the underside of a Vehicle
parked on the Platform. Dimensions are 35 inches by 53 inches.
⚠ WARNING: The Removable Panel does not take up the entire width of the Platform; when
parking a Vehicle on the Platform, try to keep the tires off the Removable
Panel — keep them on the Structure instead.

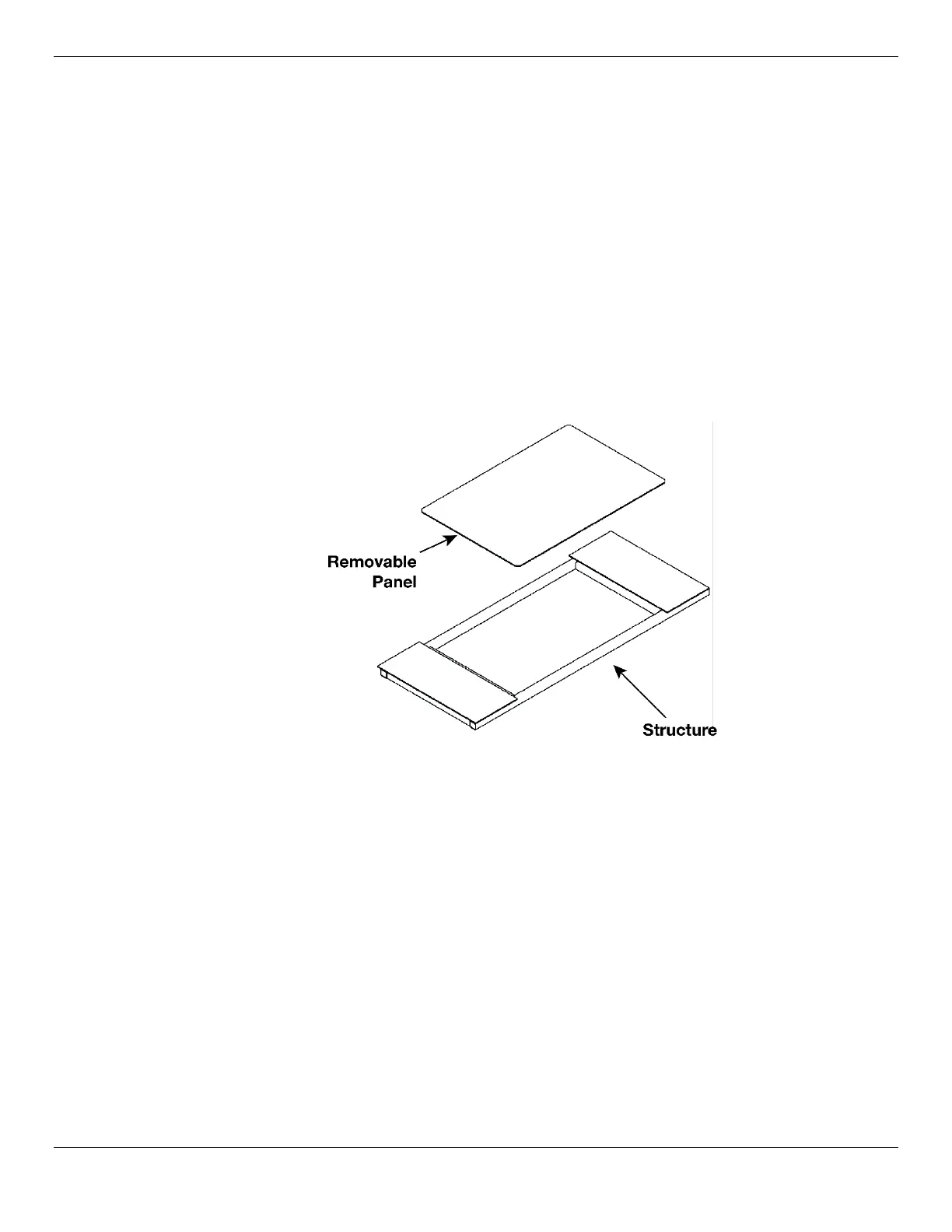

The following image shows the major parts of the Access Panel.
