Autostacker™ Parking Lift 52 P/N 5900248 — Rev. B — May 2021

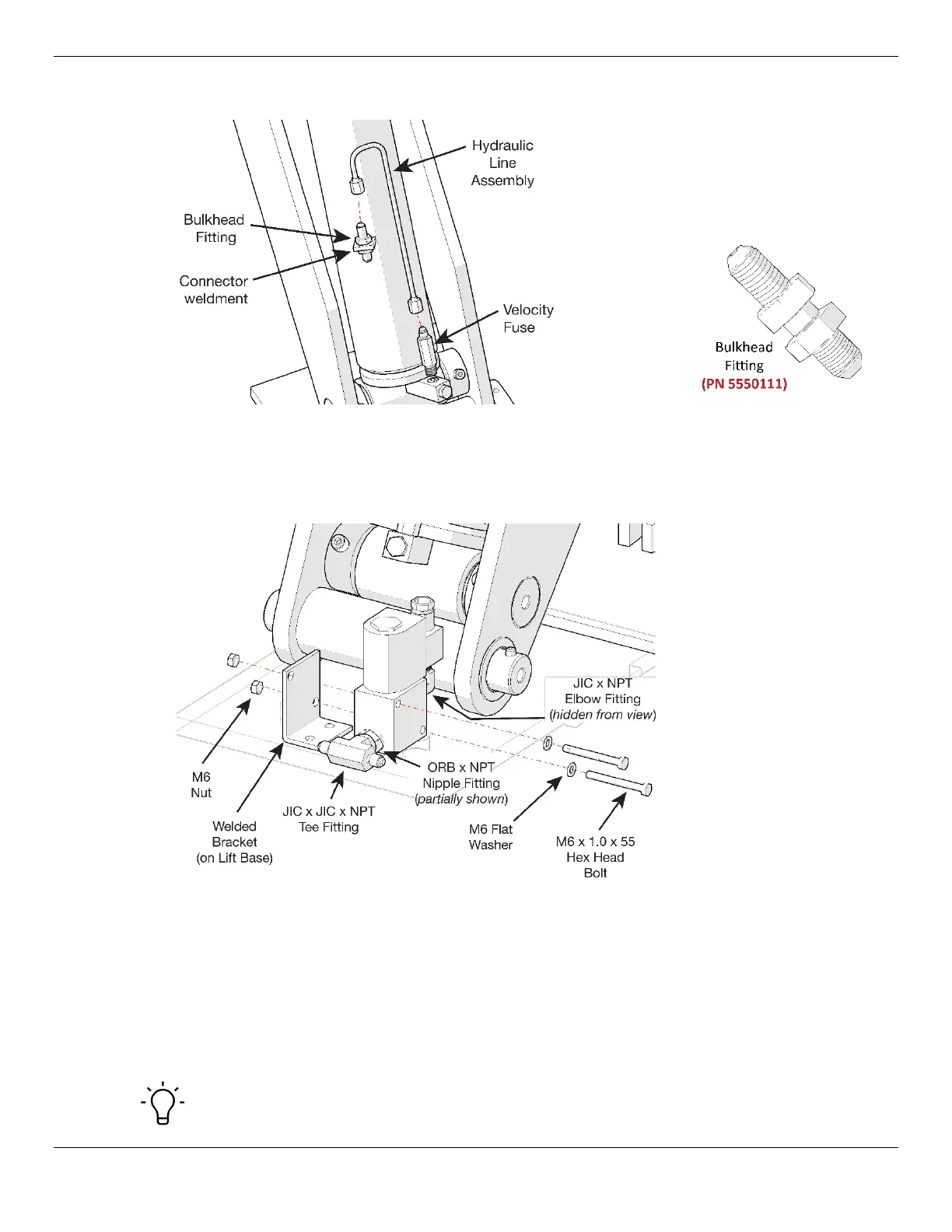

The following drawing shows a close-up of the connections to make to the Hydraulic Cylinders.
View is a close-up of the
Hydraulic Cylinders on the
Lift.
Not all components are
shown.
4. Find the necessary components for preparing the Solenoid Valve Blocks.
5. Prepare two Solenoid Blocks, with an Elbow Fitting and a Nipple Fitting in their required locations.
Use Thread Sealant on NPT Threads only
.
Drawing shows a close-up
of the Solenoid connections.
Not all components are
shown.
6. Attach the NPT end of the Tee Fitting to each Straight Fitting, then secure the Solenoid Blocks to
the Lift Bases using two M6 x 1.0 x 55 Bolts, M6 Nuts and M6 Flat Washers per each Block.
Use Thread Sealant on NPT Threads only.
7. Attach a Short Hydraulic Hose to each Hydraulic Line Assembly, then attach the other end of each
Hose to the Elbow Fitting on the Solenoid Blocks.
The Solenoid Valve Blocks are
not
labeled S1 through S4; they are only labeled in this section to
distinguish between the various components.
Tip Reference the illustration on Page 51 for the overall Hydraulic Hose routing.
