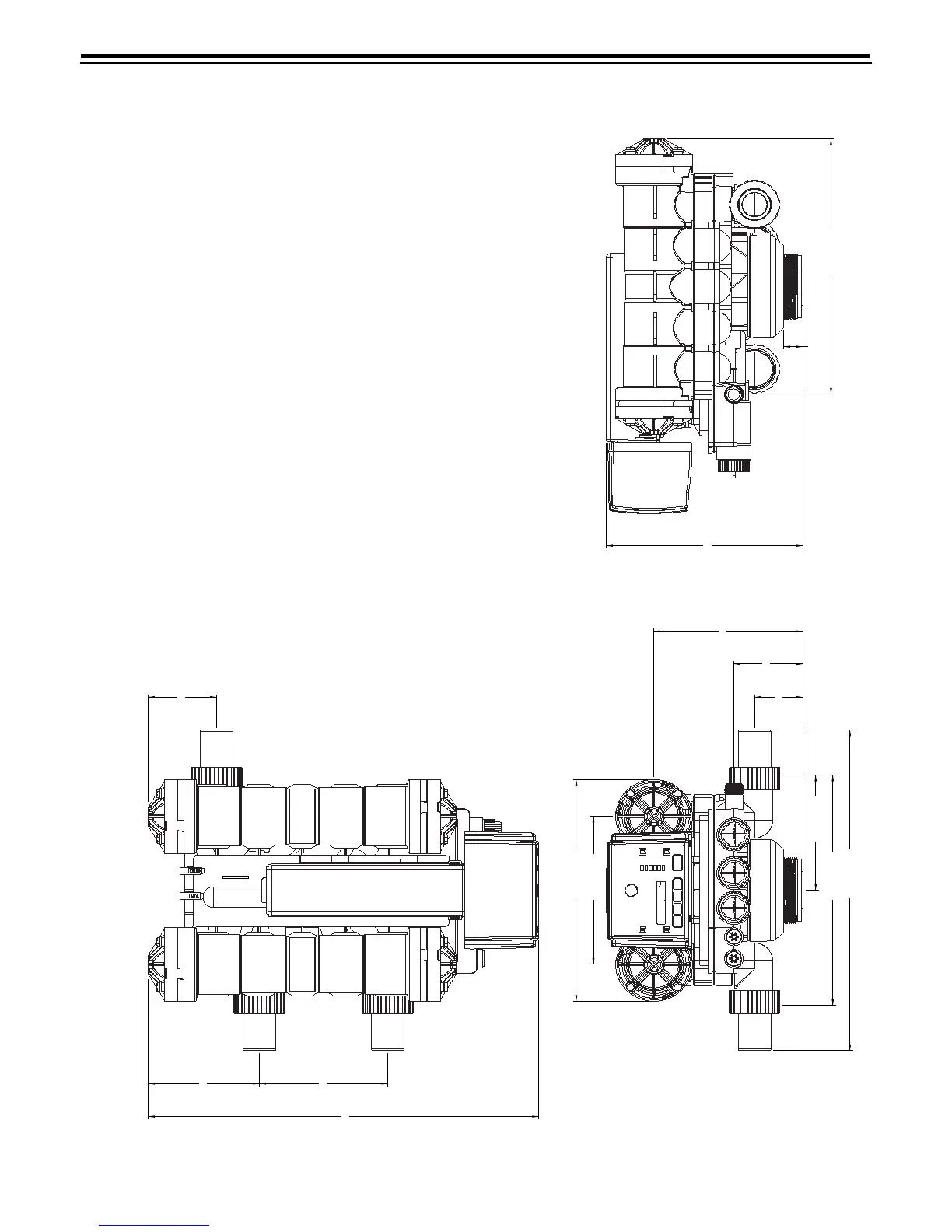

2.3 Magnum Cv Dimensional Specifications

1 1/2-inch Inlet, Outlet and Drain

3.993 (10.14 cm)

6.493 (16.5 cm)

7.500 (19.05 cm)

22.796 (57.90 cm)

2.817 (7.15 cm)

4.018 (10.20 cm)

8.680 (22.04 cm)

9.000 (22.86 cm)

13.481 (34.24 cm)

19.500 (49.53 cm)

7.000 (17.78 cm)

14.000 (35.56 cm)

15.539 (39.47 cm)

1.113 (2.82 cm)

11.471 (29.13 cm)
