10.2 Magnum Flow Controls
Note: All flow rates are based on an inlet pressure of 60 psig (413 kPa). Actual rates will vary with pressure,
temperatures and other system variables.
X X
X X X
X
.495
Cavity Number
Flow Rate (gpm)

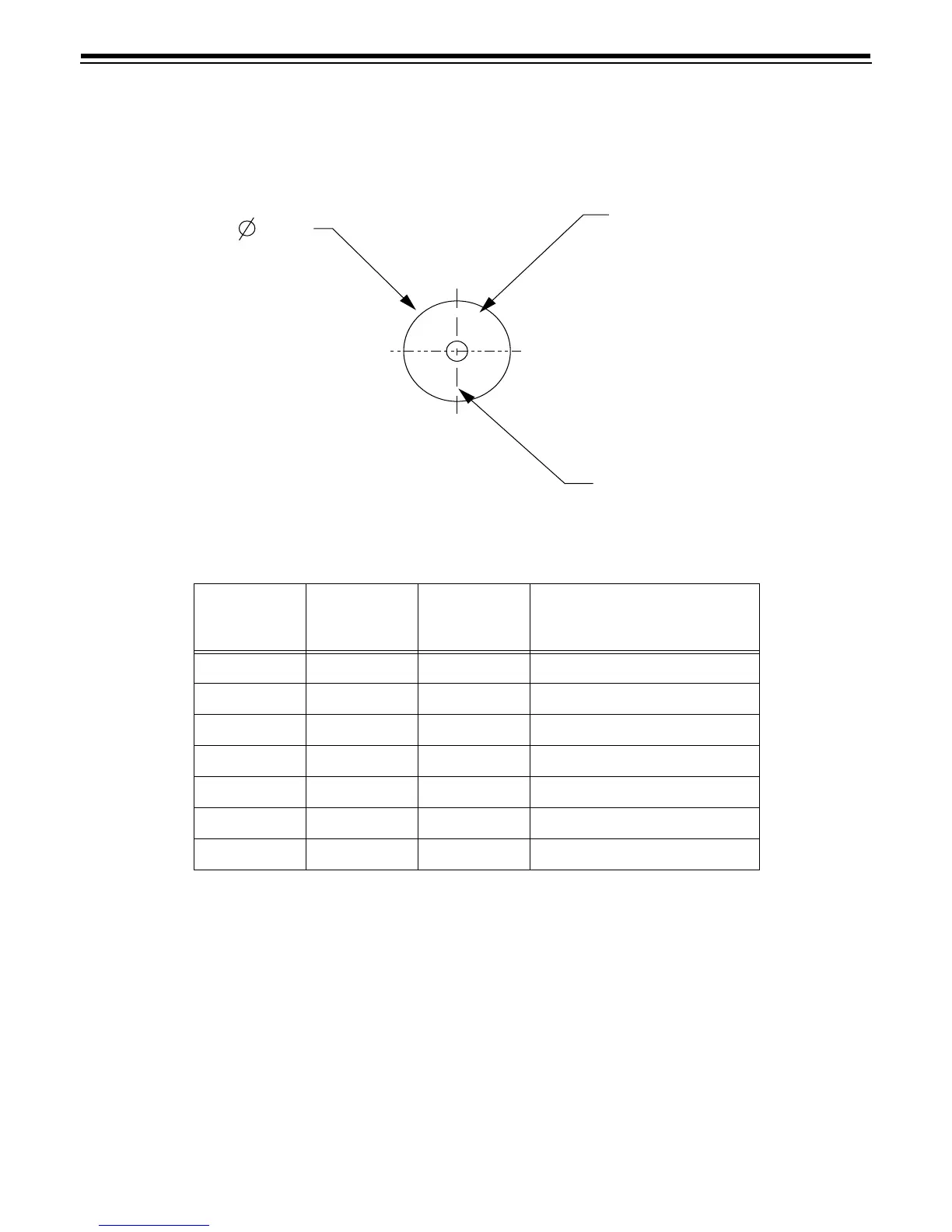

Refill Control Identification
Table 10.1 Magnum Refill Control Chart (P/N Indicates 3-Pack)
Part Number
Tank
Diameter
In. (cm)
Flow Rate
GPM (LPM)
Program P6 Value
1040679 14 (35.6) 0.7 (2.65) 7
1040680 16 (40.6) 0.8 (3.03) 8
1040681 18 (45.7) 1.0 (3.79) 10
1040682 21 (53.3) 1.4 (5.30) 14
1040683 24 (61.0) 2.0 (7.57) 20
1040684 30 (76.2) 3.0 (11.36) 30
1040685 36 (91.4) 5.0 (18.93) 50
