AUX-Light CAC 50Hz R410A Trouble shooting
106

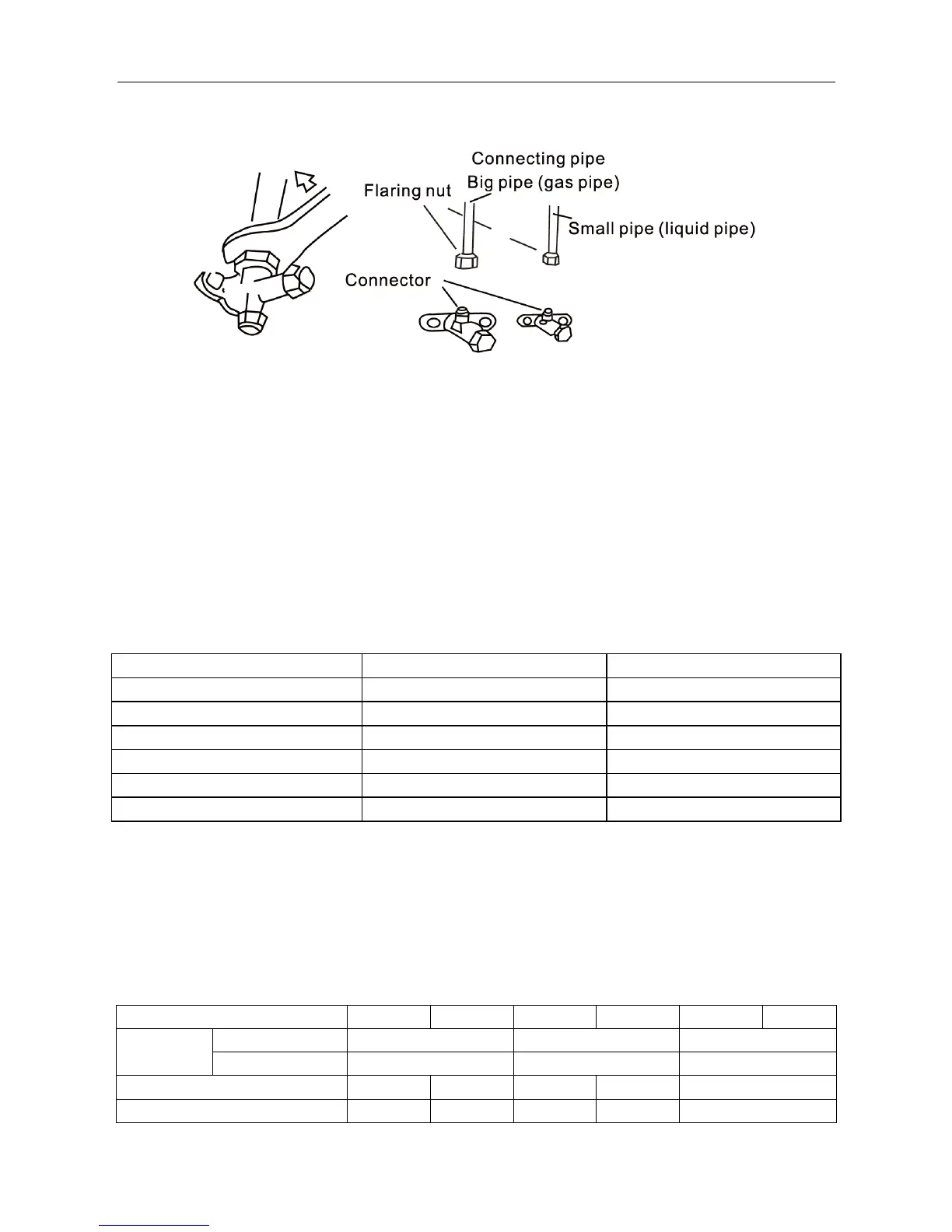

Piping connection
◇Using expanding machine to expand accessories, the size of horn shown in the above figure:
◇Paint a thin layer of frozen oil at both inside and outside part of the expanding.
◇Make the expanding right to the screw thread shape connection of the indoor unit, using hands to
tighten the nut then using a wrench to tighten the nut again, the tighten torque as follows figure.
◇Take out the cover of the indoor unit gas valve and liquid valve, make the expanding right to the stop
valve of outdoor unit, using hands to tighten the nut then using a wrench to tighten the nut again, the
tighten torque as follows figure.
Equivalent pipe length conversion
Equivalent pipe length meansconverting pipe elbow to straight pipe length after considerate the pressure
loss.
Elbow and Oil loop conversion tablet
Pipe Dia.(mm)
Bend
Oil Loop
6.35
0.10
0.7
9.52
0.18
1.3
12.70
0.20
1.5
15.88
0.25
2.0
19.05
0.35
2.4
22.02
0.40
3.0
Equivalent pipe length L＝ActualPipe length L+ Bend Qty× Equivalent pipe bend length+ Oil Loop Qty ×
Equivalent Oil Loop length
Sample:
ALCA-H42A5/C5 Actual Pipe length is 25 meters, Gas pipe diameter is 19.05mm. If there’s 5 bends and 2
oil loops during the installation, then the equivalent pipe length should be:
L=25+0.35×5+2.4×2=31.5(m)
◇Specification of connection pipe for indoor unit and outdoor unit
Cooling Capacity(Btu/h)
12000
18000
24000
36000
48000
60000
Connection
Pipe (mm)
Liquid Pipe
Φ6.35
Φ9.52
Φ9.52
Gas Pipe
Φ12.7
Φ15.88
Φ19.05
Max. Length
15
20
30
50
50
Max. Height (m)
10
15
15
30
30
