AUX ALCA-H**R1AA User Manual

AUX Light Commercial Air Conditioners T1,50Hz, R410a,ON/OFF
55

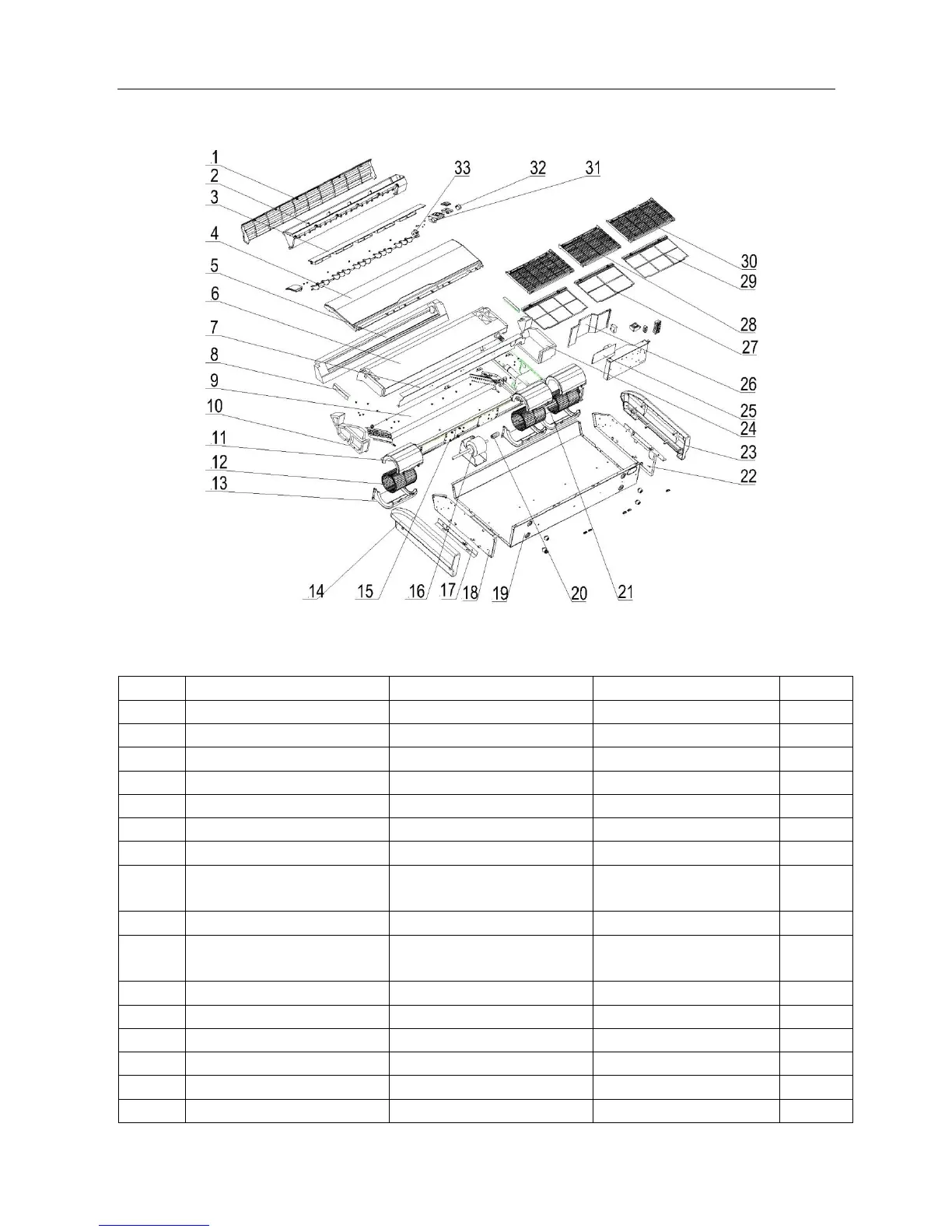

ALCF-H24/4R1C
ALCF-H24/4R1C
N0.
Parts No.
Chinese name
Part Name
Quantity
1
ALCe-H24B4/C5 顶盖板
The top covers
1
2
ALCe-H24B4/C5 导风架组件
Air guide louver assembly
1
2.1
ALCe-H24B4/C5 导风架
Air guide louver
1
3
导风门 ALCe-H24B4/C5
Sway a breeze leaf
1
4
ALCe-H24B4/C5 面板
Panel
1
5
ALCe-H24B4/C5 顶泡沫
The top foam
1
6
ALCe-H24B4/C5 集水盘组件
Draining tray
1
7
ALCe-H24B4/C5 集水盘固定板
组件
Draining tray fixed plate
1
8
ALCe-H24B4/C5 集水盘压板
Draining tray plate
2
9
ALCE-H24A4/R1DCC5-B6 蒸发
器总成
Evaporator assembly
1
10
ALCe-H24B4/C5 左泡沫(开模)
Left foam
1
11
上涡壳 ALCe-H24B4/C5(白色)
Volute assembly
3
12
风轮 φ145×190×φ15(白色)
fan
3
13
下涡壳 ALCe-H24B4/C5(白色)
Volute assembly
3
14
ALCe-H24B4/C5 左盖板
The left side covers
1
15
ALCe-H24B4/C5 电机固定板
Volute fixing board
1
