AUX ALCA-H**R1AA User Manual

AUX Light Commercial Air Conditioners T1,50Hz, R410a,ON/OFF
59

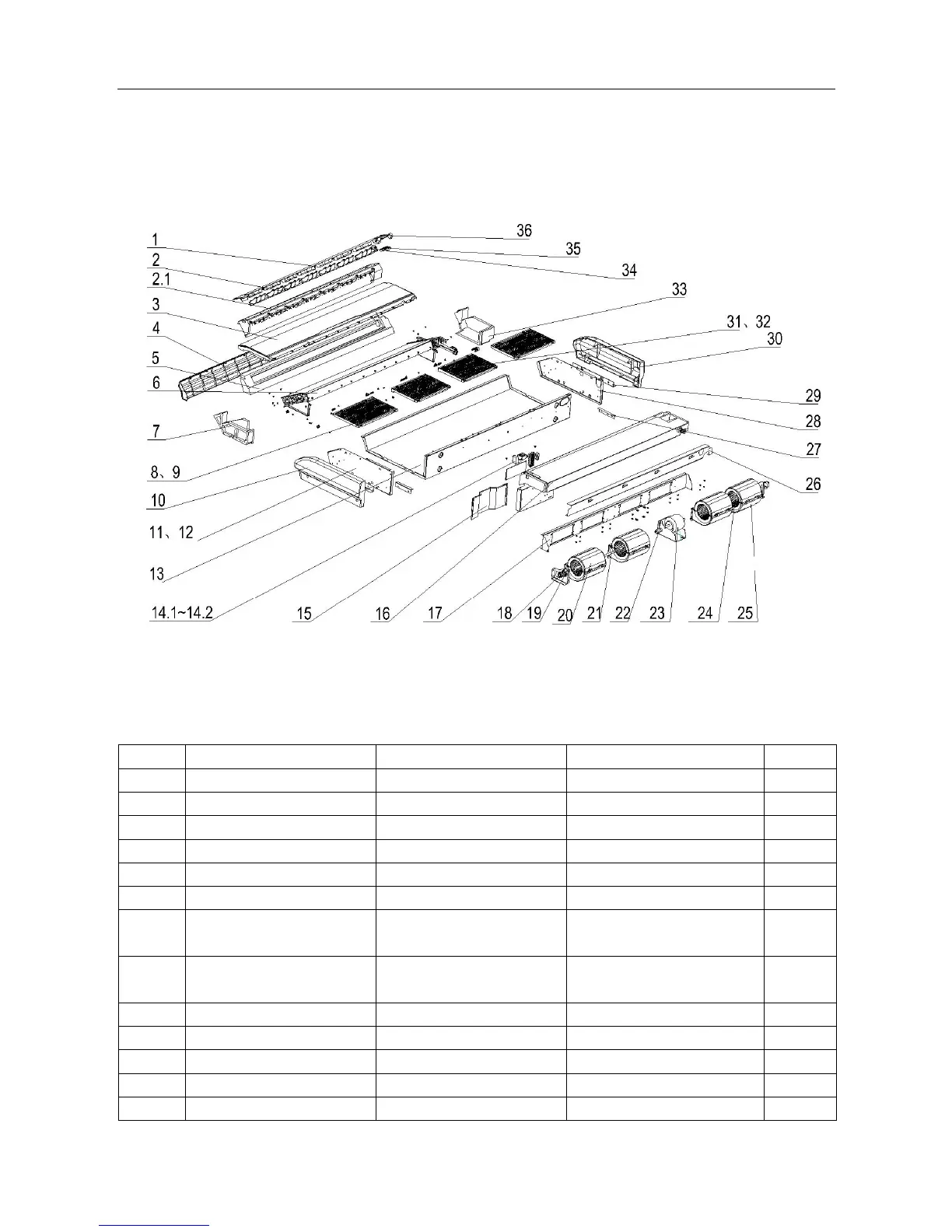

ALCF-H48/5R1C, ALCF-H60/5R1C
ALCF-H48/5R1C, ALCF-H60/5R1C
N0.
Parts No.
Chinese name
Part Name
Quantity
1
导风门 ALCe-H42A5/C5
Sway a breeze leaf
2
2
ALCe-H42A5/C5 导风架组件
Air guide louver assembly
2
2.1
ALCe-H42A5/C5 导风架
Air guide louver
2
3
ALCe-H42A5/C5 面板
Panel
2
4
ALCe-H42A5/C5 顶盖板
The top covers
1
5
ALCe-H42A5/C5 顶泡沫
The top foam
1
6
ALCe-H60A5/C5 蒸发器总成
(片距 1.6)
Evaporator assembly
1
7
ALCe-H24B4/C5 左泡沫(开
模)
Left foam
1
8
ALCe-H24B4/C5 格栅
Air-inlet grill
1
9
ALCe-H24B4/C5 滤网
Air-inlet filter
1
10
ALCe-H24B4/C5 左盖板
The left side covers
1
11
ALCe-H24B4/C5 左侧板组件
Left side panel assembly
1
12
ALCe-H24B4/C5 左挂架
Left suspend plate
1
