AUX DC Inverter Free Match 50HZ R32
181
3. Wall Mounted

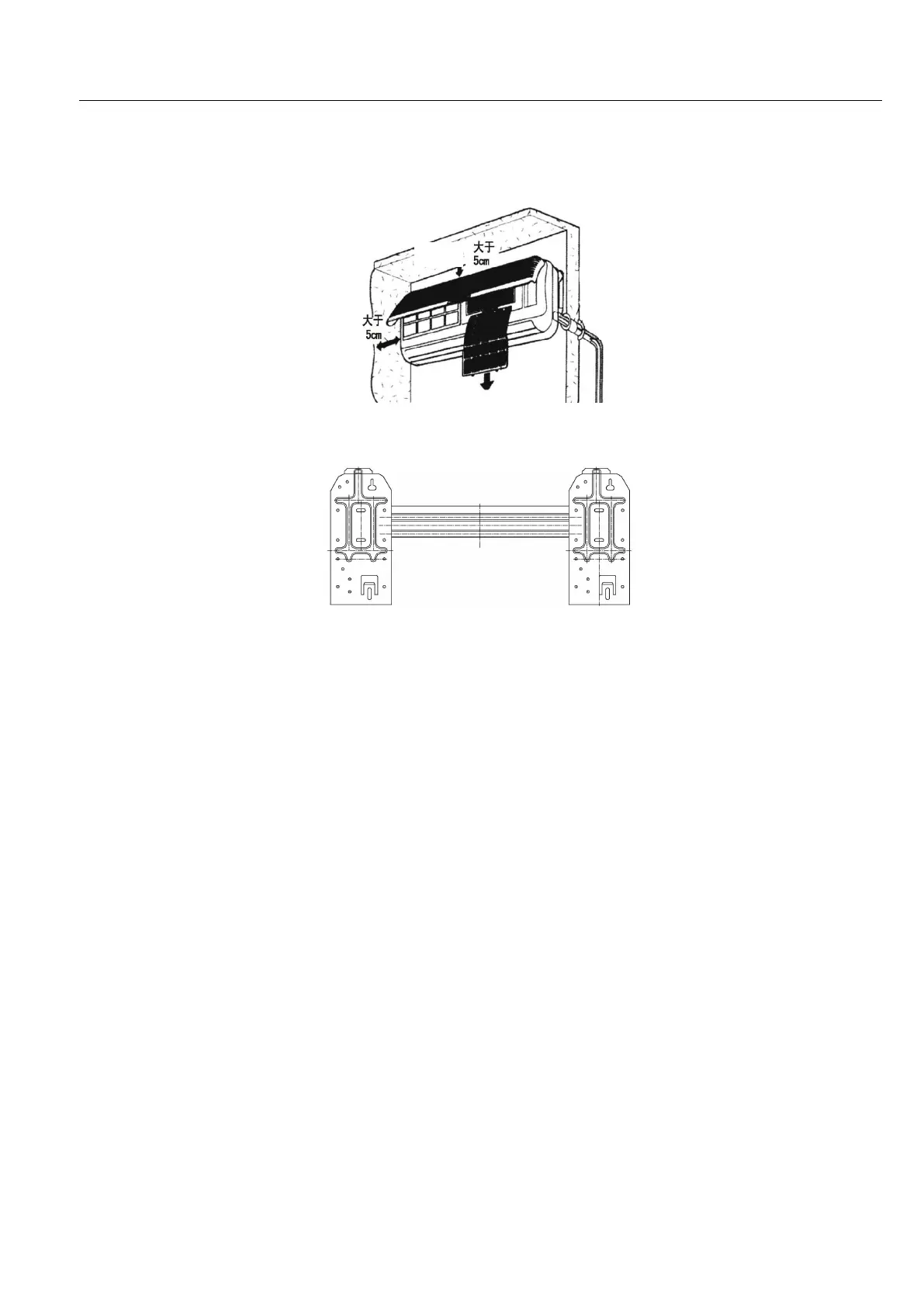

3.1 Spacing Reserved
3.2 Hoisting of Indoor Unit
◇ The wall for installing indoor unit should be firm to prevent vibration. Horizontally install
hanging plate on the wall with four cruciform screws to keep laterally horizontal and longitudinally
vertical.
◇ Drill a Φ70 Auxiliary pipeline hole on lower left side or lower right side of hanging plate. The
position of hole should slightly incline downwards.
◇ Hang indoor unit on hanging plate and move the unit to left or right to ensure hanging hook is
correctly positioned on the hanging plate.
3.3 Installation of Sterilization Net
◇ Uplift panel of indoor unit, pull out the bulge in the middle of air filter downwards after uplifting;
◇ Completely snap sterilization net inside accessory bag into sterilization mounting support on
air filter;
◇ Put back air filter in the original way, close the panel of indoor unit and tightly clamp;
◇ Push the lower left side and lower right side of indoor unit towards hanging plate until hanging
hook inserts into groove and sends click sound.
