AUX ANB66FVAMT - Correction of Capacity

DC inverter ARV Individual Series technical manual
79
3.6 Correction of capacity

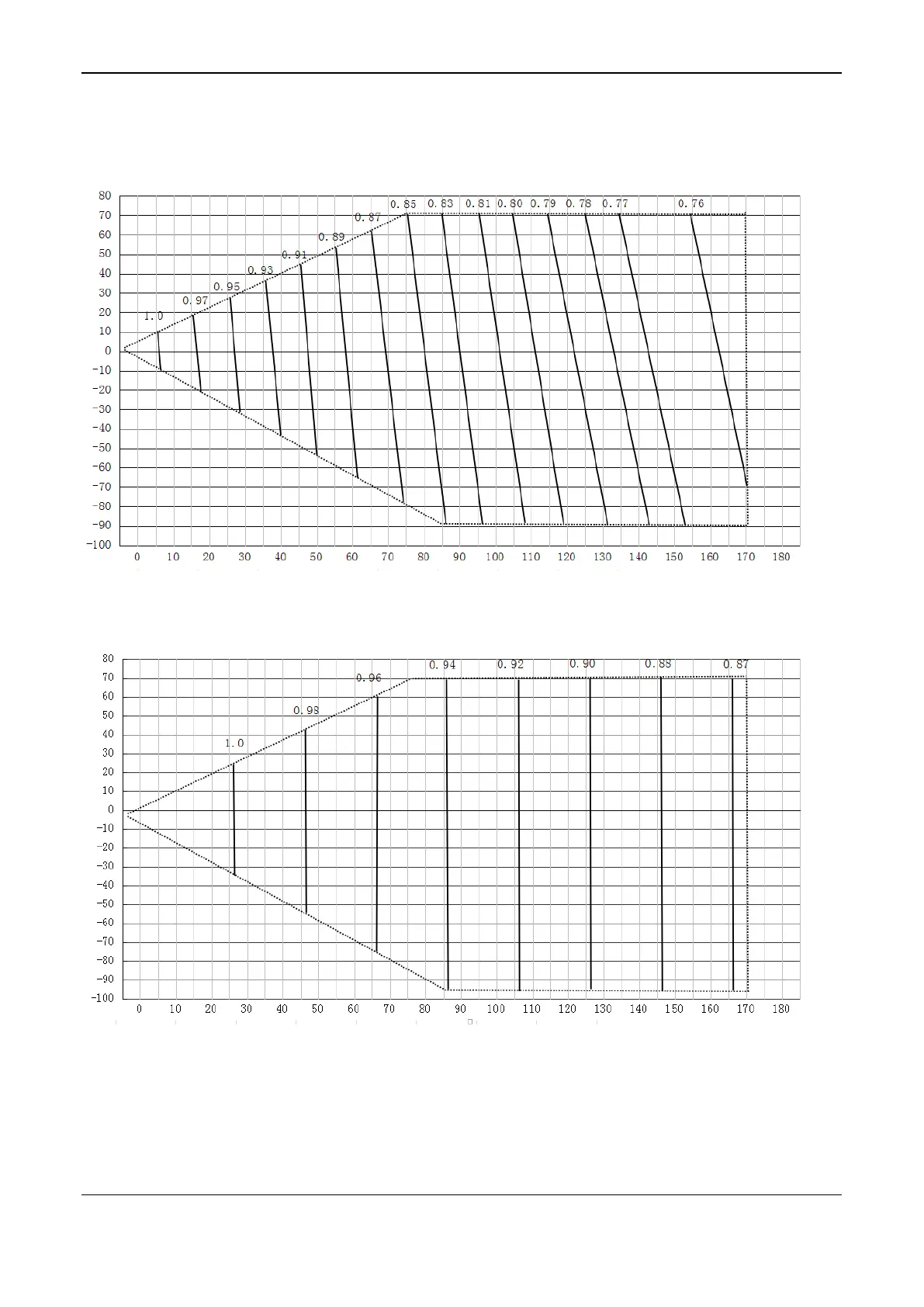

 Length Correction Coefficient “K3” of Indoor/Outdoor Unit Connecting Tube.
Rate of change in cooling capacity
Rate of change in heating capacity
Positive side of high head means installation height of outdoor unit is higher than indoor unit;
Negative side of high head means installation height of outdoor unit is lower than indoor unit;
Coefficient “K3” is the change ratio of basic capacity.
Equivalent pipe length(m)
Equivalent pipe length(m)
High head(m)
High head(m)
