AUX-DC inverter ARV outdoor unit individual series technical manual
94
Note:
If miscellaneous articles are piled around the outdoor unit, it should be at least 1000mm higher than the
top of outdoor unit. Otherwise, a mechanical discharge device must be add to improve the ventilation.
2.3 Installation of outdoor unit
Tighten outdoor unit on mounting support with M10 bolt and nut, and keep it horizontal. The bolt
should have a proper length of 20mm more than base surface.
In case of installing on roof, it is necessary to firmly secure A/C system to prevent the attack of
earthquake or strong wind;

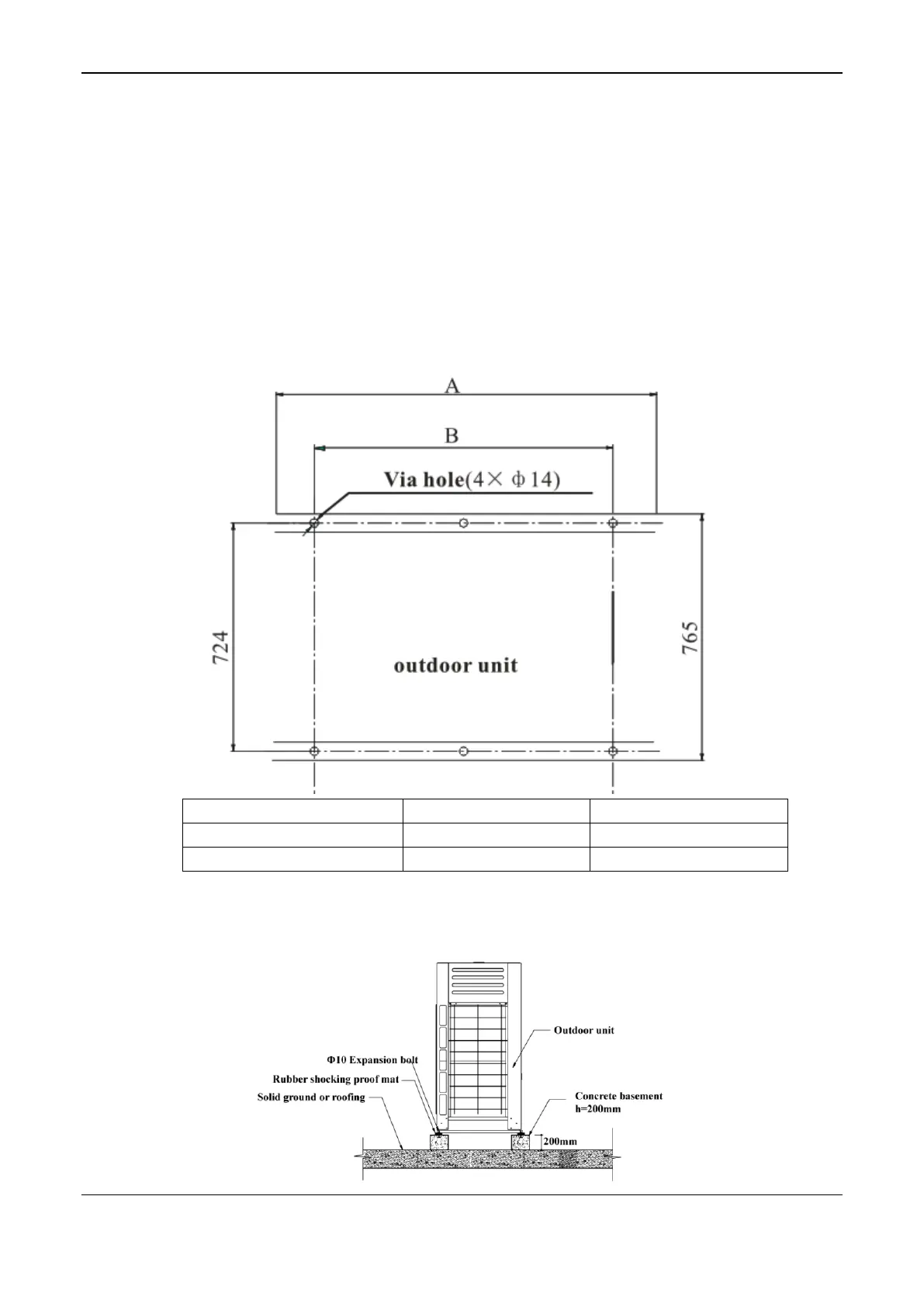

The installation space for anchor bolt please refer to the following drawing
The foundation can be made of channel steel or concrete. Reserve the space for discharging the
condensate water from outdoor units.
