12 Installation (for qualified installers only)
© Travis Industries 4101110 100-01256_000

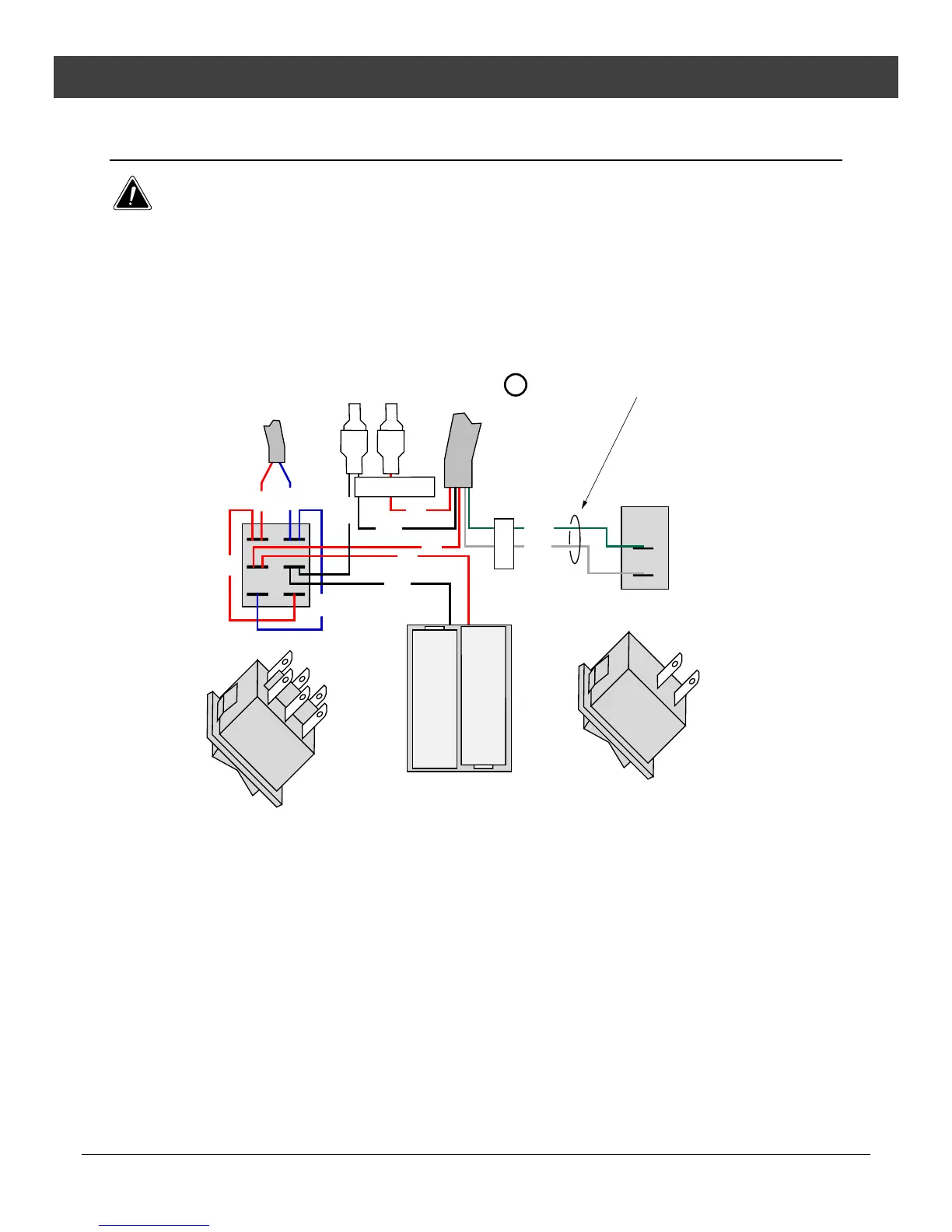

Optional Wall Switch or Thermostat Installation
Do not connect 110-120 VAC to the gas control valve or wiring system of this stove. The switch must
be installed by a qualified installer.
This stove may be installed with an optional wall switch or thermostat. The thermostat (or on/off switch)
wires will interrupt the burner circuit (see item “a” below).
1. If you wish to bypass the switch, connect the thermostat (on/off switch) wires directly to the green and
white wires (see “a” below).
2. If you wish keep the switch and connect the wires in parallel or series, use wire splitters.
White
Green
ON / OFF
COMFORT
CONTROL
AA
BATTERY
TRAY
MAIN
BURNER
Red
Red
Black
Black
Red
Red
Blue
Red
Blue
Black
POWER SUPPLY
a
Burner Circuit Wires
To Next Page
