Avalon Cypress - Placement, Utilities, and Clearances

Installation (for qualified installers only) 9
© Travis Industries 4101110 100-01256_000

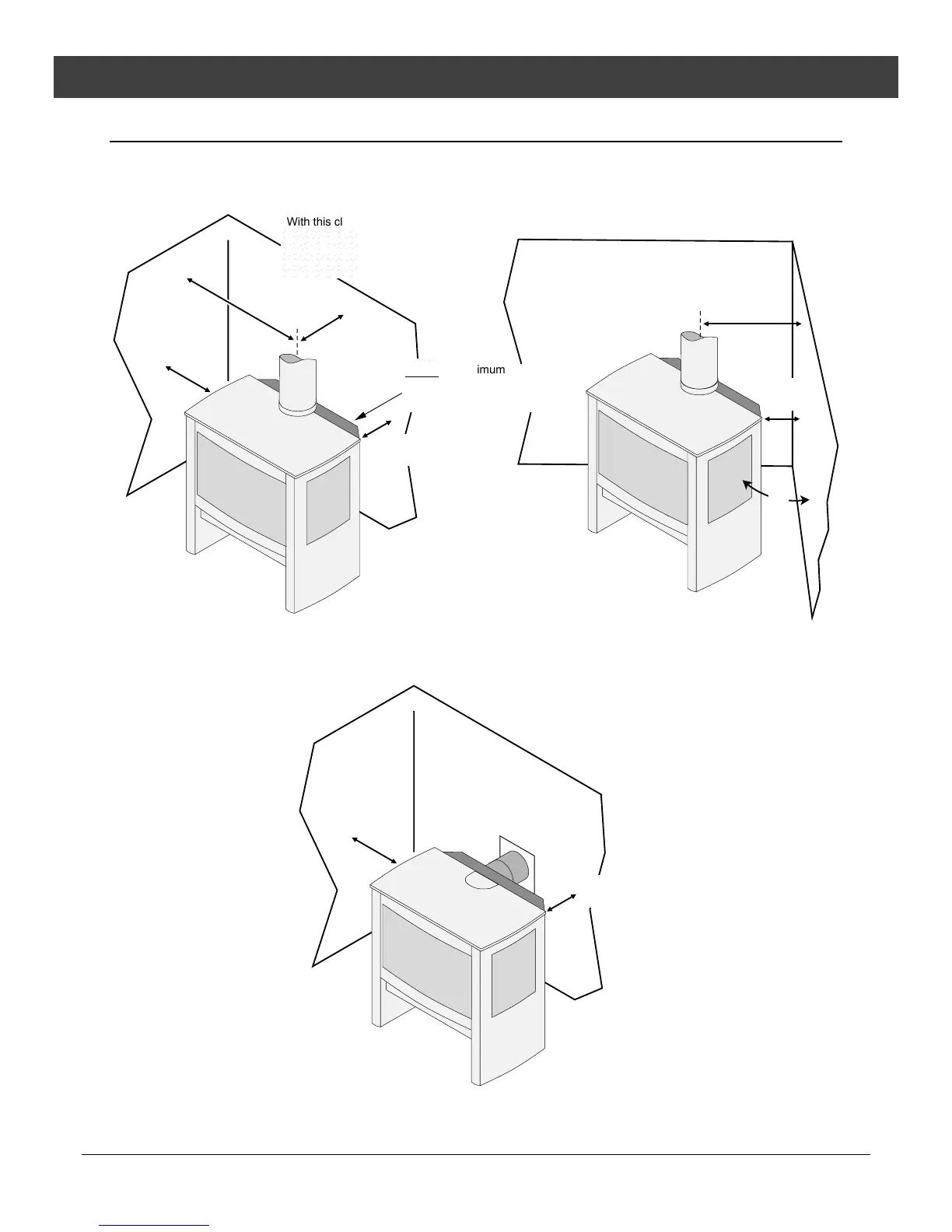

Stove Clearances
10" Min.
254mm
Top Vent
Straight Installations
Top Vent
Corner Installations
With this clearance, the vent is
centered 16-1/2" (420mm)
from the wall.





With this clearance the top vent is
centered 6-7/8" (175mm) from the
back wall, 25-1/8" (638mm) from
the side wall.
5" Min.
127mm
5" Min.
127mm
45°
10" Min.
254mm
Rear Vent (Straight) Installations
8-1/4" Min.
210mm


NOTE: At minimum clearance
the switch box is very close
(1/8" 3mm) to the rear wall.
