Accent Light Replacement

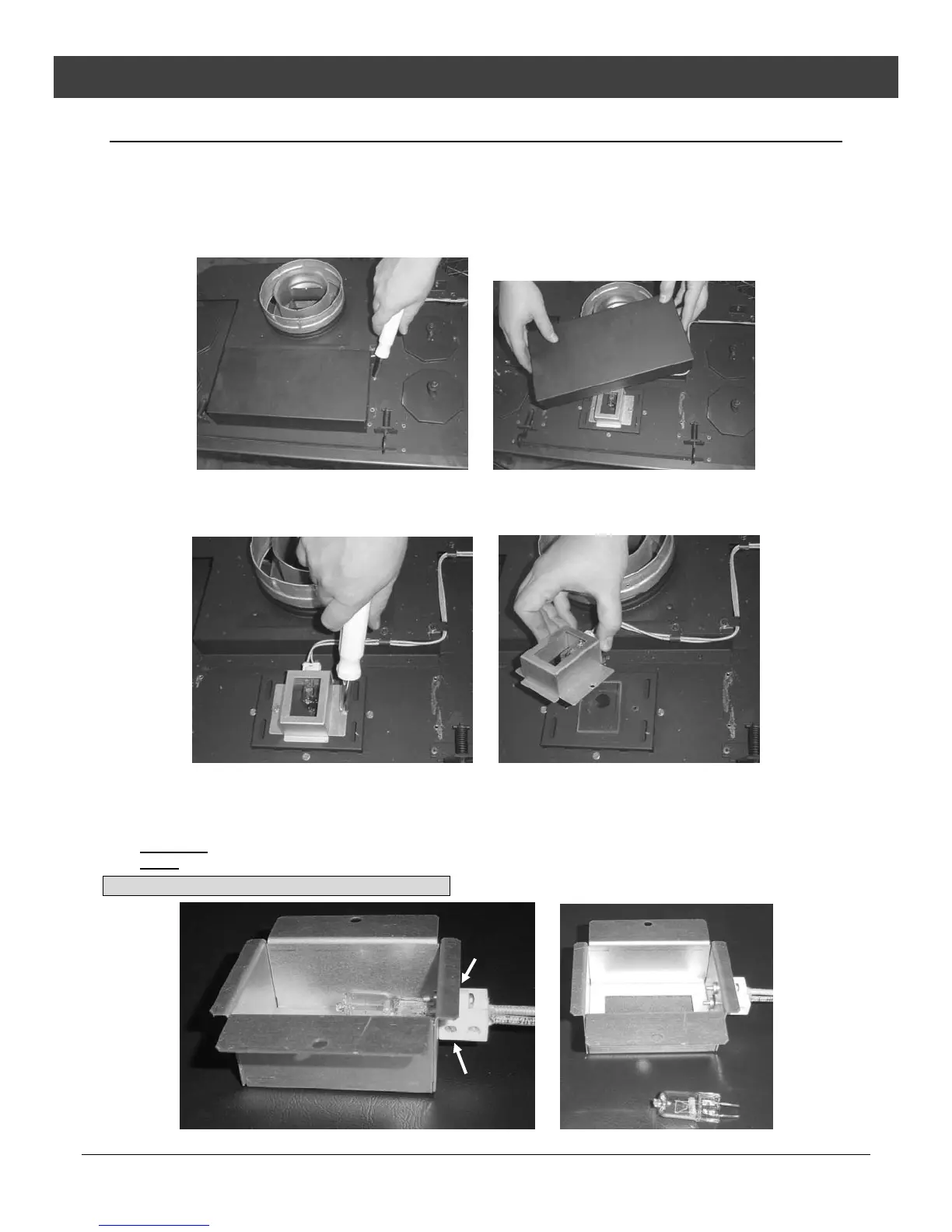

An accent light is included in your stove to provide additional lighting. To replace the bulb, follow the directions below:
• Disconnect stove from power. Shut off gas to the stove. Make sure the stove is cool before proceeding (15
minutes).
• Remove the stove top and place it aside (see page 26).
• Remove the four screws securing the accent light cover. Place the cover to aside.
• Remove the two screws securing the accent light assembly. Place the assembly upside down on the firebox top,
making sure the wiring is not damaged or dislodged. When replacing, make sure the glass is aligned below the
assembly.
•
Use a small slotted screwdriver to loosen the two set-screws holding the bulb in place. (see arrows below). The
second set of screws, near the wires, hold the wires in place (do not loosen these wires). Replace the halogen
bulb with the bulb listed below. When the bulb is inserted into the socket the two posts will be exposed
approximately ¼” (6mm) – this is normal.
WARNING
: Do not over-tighten the set-screws, this may deform the posts and break the bulb.
NOTE
: .Take care to not touch the bulb with your fingers – use foam packing or paper towel to hold the bulb
35 Watt 120 Volt T4 Halogen Bulb (G6.35 Base)
