26 Finalizing the Installation (for qualified installers only)
© Travis Industries 4101110 100-01256_000

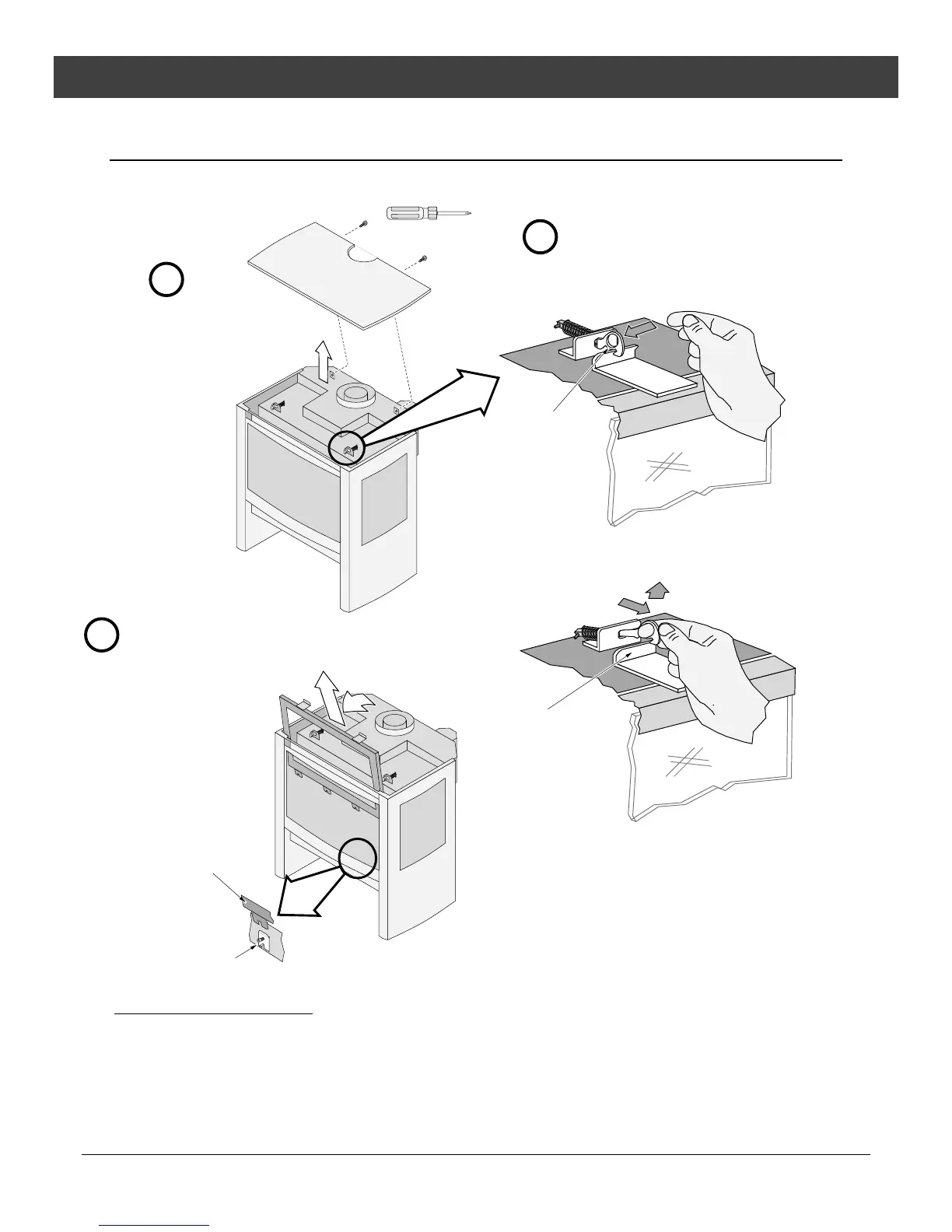

Face and Glass Removal
! Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service.
Remove the two screws
securing the stove top.
Lift the stove top off the
stove and place it aside.
a
Re-Attaching the Glass Frame:
a) Slide the two brackets on the bottom of the glass frame into the glass
frame guides (hold the glass frame at a slight angle.
b) Swing the glass frame into place - you may have to lift it slightly to
allow it to fit over the top of the firebox.
c) Attach the upper latches (follow the instructions above in reverse).
d) Replace the stove top and secure with the two screws.
Open the two latches holding the
glass frame in place - follow the
directions shown below
c
b
Lift the glass frame slightly, swing the top forward, then lift
the glass frame to disengage it from the bottom guides.
Glass Frame Guide
Glass Frame
Glass
Top of
Firebox
Latch
Catch
(on glass frame)
Phillips
Screwdriver
