Avaya Scopia XT Meeting Center | Quick Setup Guide
Avaya Scopia XT Meeting Center | Quick Setup Guide
Included Components
Single Screen
Mount
Dual Screen
Mount
Column
Screen
Mount
x2
Extension
Brackets
x4
Screen
Mount
Brackets
x4
Screen
Mount
x1
Extension
Brackets
x2
Screen
Mount
Brackets
x2

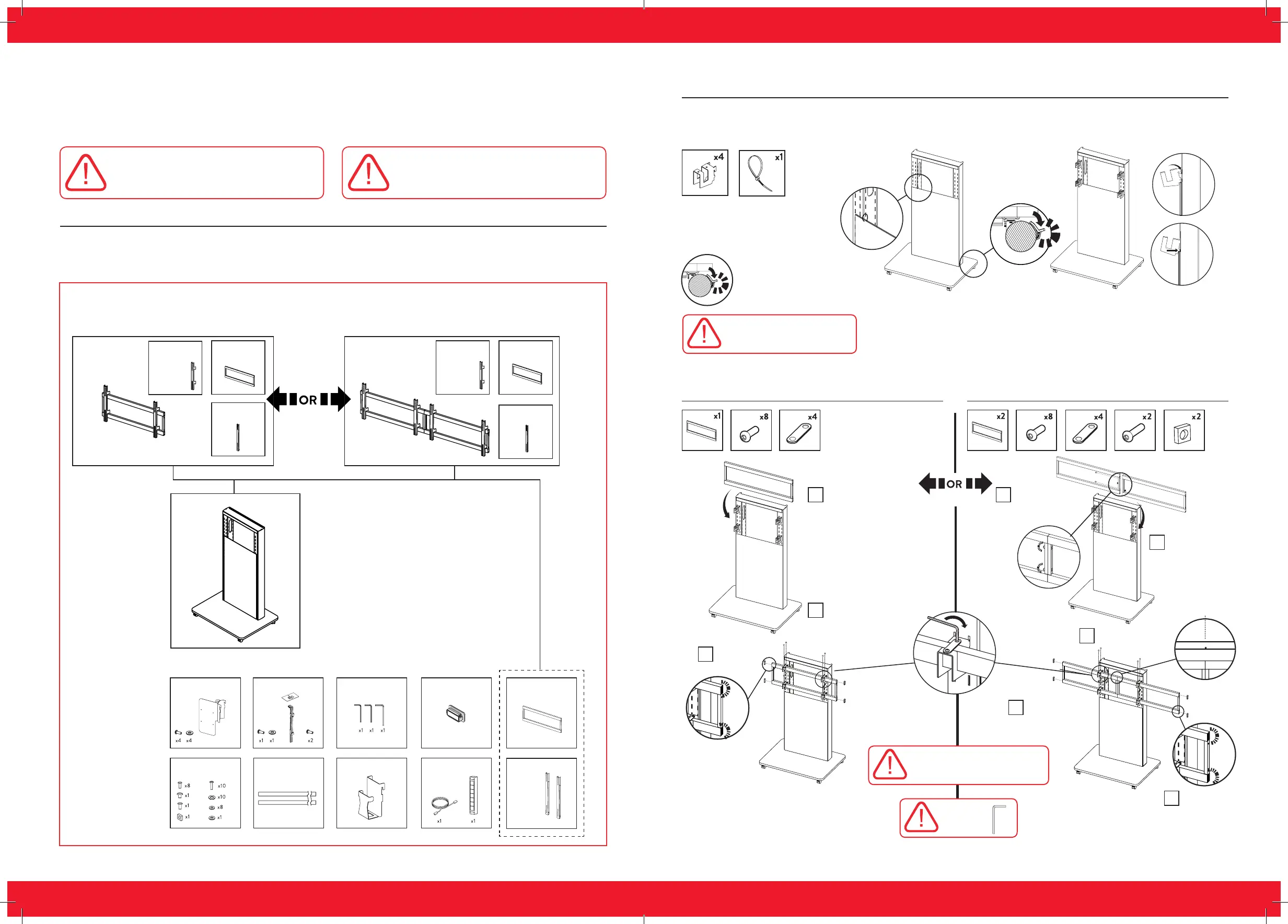

Step 2. Install The Single Screen Mount Step 3. Install the Dual Screen Mount
iii
Insert End Caps
v
Insert End Caps
i
Fit 2 x M6 screws
to Dual screen
mounting frame
as shown
i
Fit screen mounting
frame to beam brackets
Fit screen
mounting frame to
beam brackets
ii
iii
Align using centre-
line mark
iv
Fit 8 x M5 screws
and tighten
ii
Fit 8 x M5 screws
and tighten
Before You Begin:
Check that you have the necessary tools, parts, and accessories required for assembly.
Step 1. Install Screen Mount Beam Brackets
Unless the panel needs to be removed, leave
zip tie in place during installation
The above symbol is meant
to represent snapping the
component into place.
Always use all 4
beam brackets
Setting Up this Device
Connect the cables as detailed in the diagram overleaf, then follow the steps below to complete the setup of the
Avaya Scopia XT Meeting Center. For details on how to use the system after setup, see the User Guide for Avaya
Scopia XT5000 endpoint or the Quick Start Guide for Avaya Scopia XT Meeting Center.
CAUTION: Make sure all units are
switched off whenever connecting or
disconnecting devices.
IMPORTANT NOTE: Read the safety
precautions and notifications carefully
before setting up this product.
Avaya Scopia
®
XT Meeting Center
Quick Setup Guide
IMPORTANT NOTE:
Ensure brakes are locked
during assembly / installation.
USE ALL 8 M5 SCREWS:
Secure screen mounting
frame using locking plate.
TIGHTEN
A
A
Codec
Mount
Spare
Fixings
Camera
Mount
Velcro
Fasteners
Transformer
Mount
Power Block and
Radvision-Avaya
cable set
Extension
Brackets
Allen Keys End Caps Screen
Mounts
x1 x1
x2 x1
x3 x4
