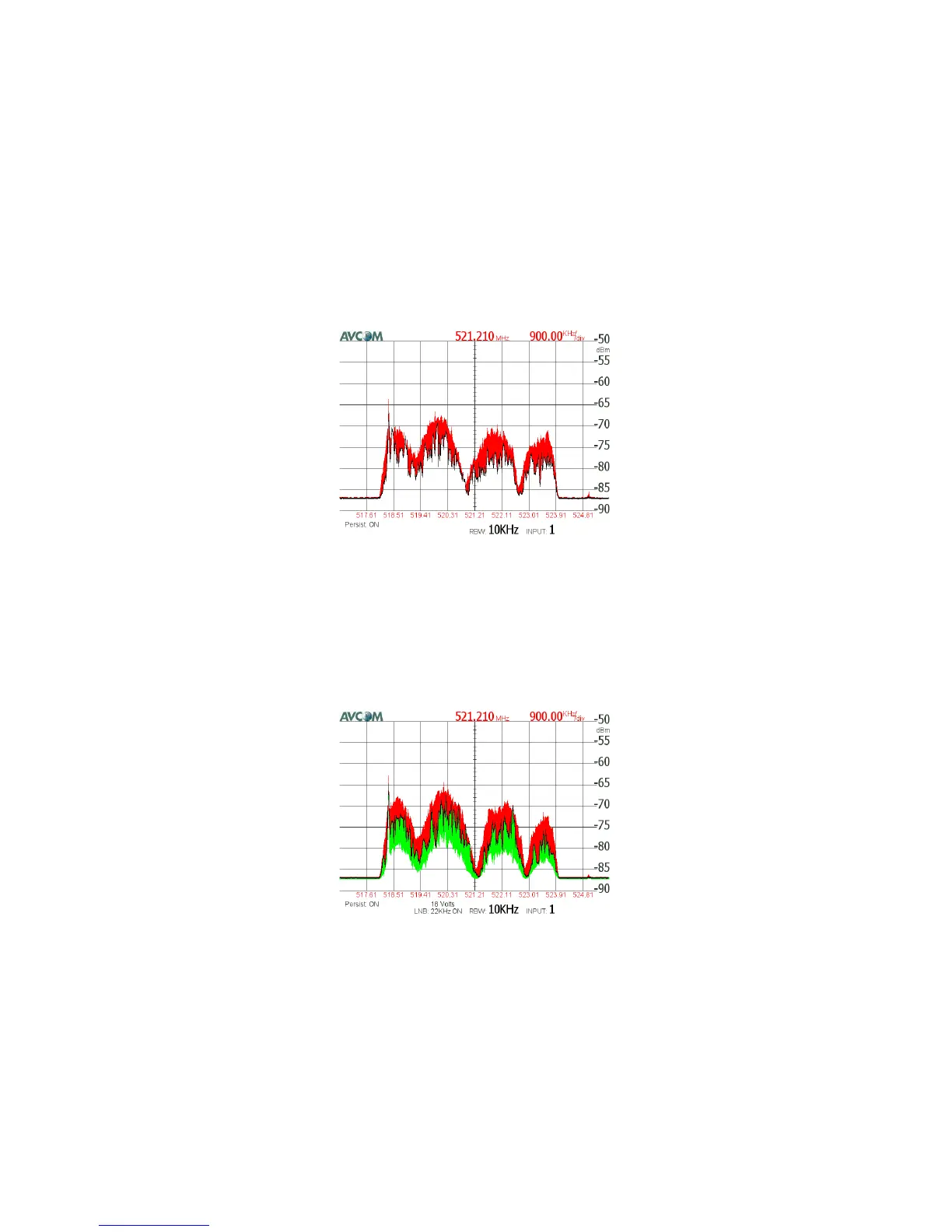

o Start Polling after Close – Enabled when more than one Window is shown. Polling allows
signals on different RF Inputs of the same analyzer to be updated and displayed in separate
Windows of the same GUI. Polling can also be used to monitor signals that are widely separated
in the spectrum on the same RF Input. Any tuning parameter is allowed to be changed and
multiple analyzers are allowed to be polled. Prior to selecting Start Polling after Close
1. Go to the Window #1 and Run the analyzer.
2. Tune the analyzer and select the RF Input you want to get the signal of interest
displayed. If Shape Alarms are needed set them up now and Lock the tolerances.
3. Stop that window, go to the next window and repeat step #1.
4. When all windows are showing the signal to your satisfaction go into CFG>Misc
and select Start Polling after Close. This enables Poll Time and you can change this
timer. Startup time delays limits how fast the Polling currently can Run and update
the signal so the Poll Time may not be able to be set much lower than 3-5 seconds
depending on how you are connected to the analyzer and network delays, etc.
5. After Closing CFG>Misc the GUI will automatically Run and update the signal on
each window one by one.
o GUI Network – Allows multiple GUIs to view and control the same spectrum analyzer. See
Section 7 for more details.
o Desired Refresh Rate - can be reduced to conserve CPU or network traffic if necessary
o GUI Administrator – Used to prevent unauthorized changes. If selected and a password entered,
the next time the GUI opens up and the correct password is not entered, then the entire Configure
menu is disabled.
o Engineering Password – Enables functions for engineering use.
o Start Running Automatically – If selected the GUI will automatically run on the last spectrum
analyzer at the next GUI startup
• RF Switches – Lets you configure and control other manufacturers such as Quintech SRR/MRF and ETL
LS series models. License. Contact AVCOM if you need us to support other devices.
• Admin Password – Will be enabled if GUI Administrator and password in CFG>Miscellaneous are
turned On and a password is entered. If selected, or when the GUI is next opened up, and the correct
Admin password is not entered, the Configure menu items will be disabled to prevent unauthorized
changes.
• Reflash Firmware – Enabled with GUI is connected a new generation PSA or SNG analyzer.
5.2.8 HELP
• Open User Guide
• Help Wizard – Runs the wizard to help you connect to your SA and configure your SA List.
• AVCOM Home page – If connected to the internet, opens the AVCOM home page for product
information.
• About – Displays GUI version and AVCOM contact information.
