c. “Control Time” is the period that SA control is given before automatically turning off. “Control
Time” can be left at the default value or your organization may decide on a different time period from
15 – 120 seconds.
d. Close the Configure Miscellaneous window.
3. When you return to the main GUI window, a Control button will have appeared beside the Center Frequency
control.
4. The GUI Server has to create a Spectrum Analyzer List profile for the SA by going into Configure>Spectrum
Analyzer List on the Main Menu.
5. To create a Spectrum Analyzer List profile for the Remote GUIs first determine the IP of the GUI Server
computer.
6. Determine the GUI Server port for each of the SAs by the following: The GUI Server listens for Remote
GUIs on a port relative to the how the GUI Server is connected to the SA.
a. If the GUI Server is connected to the SA by ethernet then it will listen on a port equal to the SA’s
ethernet port minus 100. For example, if the SA’s port is 26482, then the GUI Server listens on port
26382 for all Remote Client connections.
b. If the GUI Server is connected to the SA by serial connection then the GUI Server will listen on an
ethernet port equal to 26400 plus the Com port #. For example, if the SA is on COM1 then the GUI
Server listens on port 26401 for Remote Client connections. If the SA is on COM2 then the GUI
Server listens on port 26402.
7. Now that you have determined the GUI Server’s IP and Port for each SA, the Remote GUIs need to create a
Spectrum Analyzer List profile for the GUI Server and the particular SA using the GUI Server’s IP and Port.
The Remote GUIs will use the “LAN – GUI Server” Connection Type in the CFG>SA LIST, the IP will
be the GUI Server’s computer IP, and the port will be the # that the GUI Server is listening to for that
analyzer.

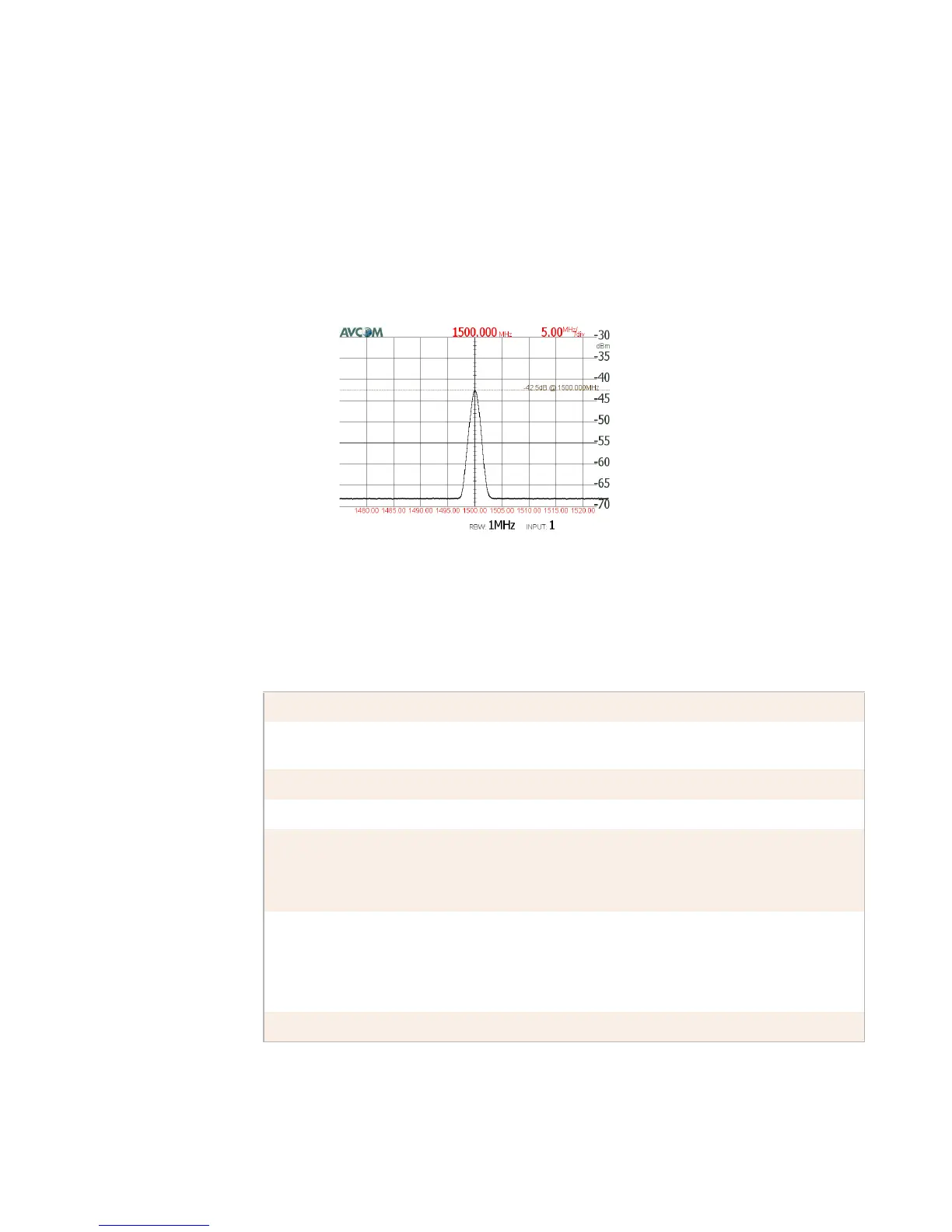

8. You are now ready to run. Power on the SA and open the GUI in the Remote and Server PCs. In the GUI
Server select the new SA List item for the SA and watch it run. In the Remote GUIs select the SA List item
for the GUI Server and the Remote GUI should display the signal as if it were connected directly to the SA.
