Avdel 07340 - Accessories

Hose Connector
part nº 07005-00276
Hose Assembly
part nº 07008-000324
Swivel Connector assembly
part nº 07640-01400
11

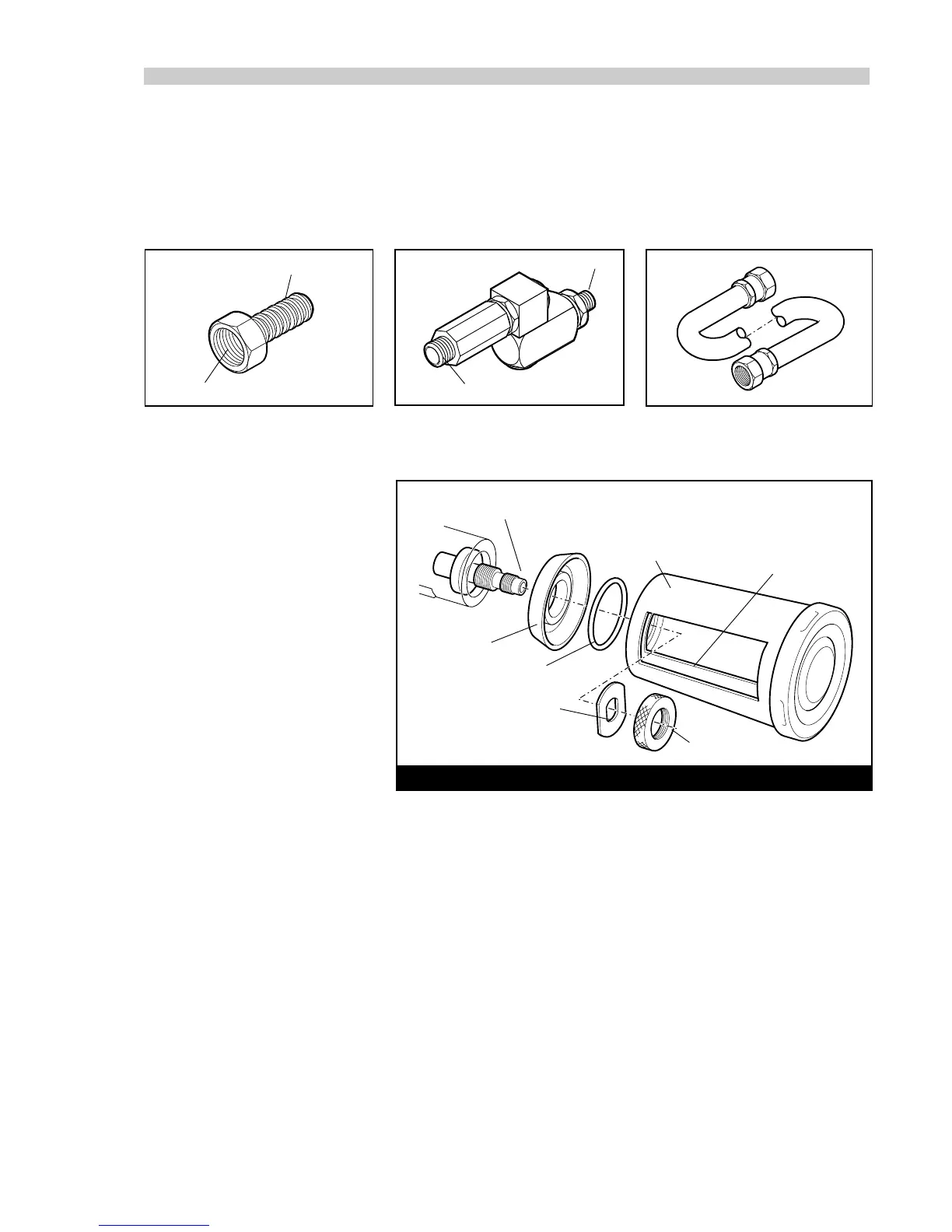

Three different accessories are available to make the connection to your air supply:
A C C E S S O R I E S
1/4” BSP
TO FIT 6.4 mm (1/4”) BORE PIPE
L = 137 cm
Approximate dimensions of assembled unit are:
Length: 107mm (4.2”)
Diameter: 63.5mm (2.5”)
The stem catcher MUST be emptied frequently. (approx. half full or every 120 placings)
CLAMP WASHER
STEM CATCHER
BODY
‘O’ RING
END COVER
LOCKING RING
Part number: 07340-08800
STEM CATCHER
ADAPTOR
STEM CATCHER
OUTER
1/4” BSP
1/4” BSP
You may want to consider one more accessory to improve efficiency. FOR USE ON 07340 & 07344 TOOLS ONLY.
STEM CATCHER UNIT
To replace the pin tail deflector with
the stem catcher unit, unscrew the end
cap and remove together with pintail
deflector (items 56 and 55 of page
22).
Assemble all items in the order shown
on the diagram opposite.
Offer the assembly to the new stem
catcher adaptor.
Start tightening the locking ring onto
stem catcher adaptor.
Rotate the stem catcher body until the
opening is in the desired position.
Fully tighten the locking ring.
■
■
■
■
■
■
