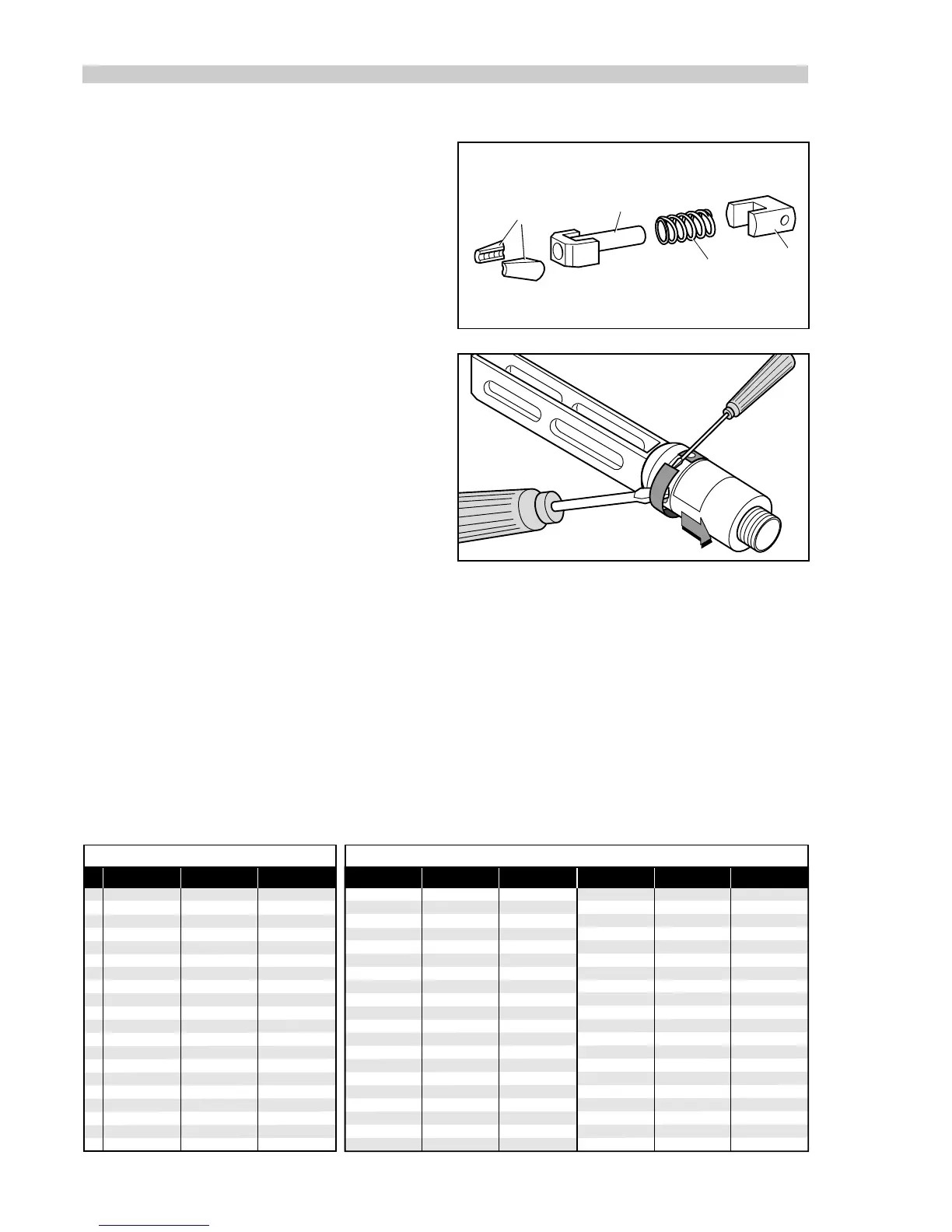

SERVICING INSTRUCTIONS
Nose assemblies should be serviced at weekly intervals.
Item numbers refer to both illustrations on page 15.
Remove the complete nose assembly using the reverse proce-
dure to the ‘Fitting instructions’.
If guard 1 is at all damaged it must be replaced by a new one.
Any worn or damaged parts should be replaced.
Pay particular attention to jaw carrier items in the upper
illustration on the right as follows:
Check wear on jaws 17.
Check that jaw spreader tube 18 is not distorted.
Check that spring 19 is neither broken or distorted.
Check that spring guide 20 is not damaged.
Check that spring clip 7 is not distorted. When removing
spring clip 7, use two screwdrivers as shown in the lower
illustration opposite.
Check for excessive wear on slots of body 5.
Assemble according to fitting instructions.
■
■
■
■
■
■
■
NOSE ASSY NOSE TIP(14) JAWS(17) NOSE ASSY
NOSE TIP(14)
JAWS(17)
07345-03000 07345-03600 07340-00213
07345-03100 07345-03700 07340-00213
07345-03200 07345-03800 07490-04602
07345-03300 07345-03301 07340-00229
07345-03400 07345-03401 07340-00229
07345-03500 07345-03501 07498-04401
07345-04000 07165-00701 07340-00229
07345-04100 07165-00702 07340-00229
07345-04200 07165-00703 07498-04401
07345-04300 07165-00801 07340-00229
07345-04400 07165-00802 07498-04401
07346-03000 07345-03600 07340-00213
07346-03100 07345-03700 07340-00213
07346-03200 07345-03800 07490-04602
07346-03300 07345-03301 07340-00229
07346-03400 07345-03401 07340-00229
07346-03500 07345-03501 07498-04401
07346-04000 07165-00701 07340-00229
07346-04100 07165-00702 07340-00229
07346-04200 07165-00703 07498-04401
07346-04300 07165-00801 07340-00229
07346-04400 07165-00802 07498-04401
07494-03000 07494-03011 07340-00213
07494-03400 07494-03401 07340-00222
07494-03600 07494-03601 07340-00229
07494-03700 07494-03701 07340-00229
07494-03800 07494-03801 07498-04401
07494-06000 07494-06001 07340-00213
07494-06100 07494-06101 07340-00213
07494-06600 07494-06601 07340-00213
07494-06700 07494-06701 07340-00213
07495-03000 07494-03011 07340-00213
07495-03400 07494-03401 07340-00222
07495-03600 07494-03601 07340-00229
07495-03700 07494-03701 07340-00229
07495-03800 07494-03801 07498-04401
07495-04000 07494-06001 07340-00213
07495-04100 07494-06101 07340-00213
07495-04700 07494-06601 07340-00213
07495-04800 07494-06701 07340-00213
VARYING COMPONENTS
ITEM 07345 07346
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
18
19
20
21
22
GUARD
BLADE SCREW
JAW CARRIER
LEVER
BODY
PIVOT PIN
SPRING CLIP
ROLLER
ADAPTOR
LOCKING RING
SPINDLE
DOWEL PIN
SCREW
PIVOT PIN
SCREW
JAW SPREADER
SPRING
SPRING GUIDE
CSK. SCREW
PLATFORM
07494-05000
-
07494-03026
-
07494-03015
07343-02207
07495-03900
07007-00039
07345-03001
07345-03003
07345-03002
07007-00038
07342-02207
-
07494-03028
07166-01100
07166-01102
07494-03027
07001-00368
07345-00401
07495-03003
07210-02015
07494-03026
07495-03004
07495-03002
07343-02207
07495-03900
07007-00039
07345-03001
07345-03003
07345-03002
07007-00038
07342-02207
07495-03005
07494-03028
07166-01100
07166-01102
07494-03027
-
-
CONSTANT COMPONENTS
07345 & 07346 NOSE ASSEMBLY COMPONENTS
Nose tips and jaws will vary for each nose assembly while other components remain the same as shown in the tables below. Jaws are
always in pairs.
