Avenger JHS-A018-10KR - Electric Circuit Diagram; Appendix

www.factorybuysdirect.com
M130004/5-0114
APPENDIX
Fuse Parameters
Type: FSD or 50F
Voltage: 250V
Current: 3.15A
Schematic Diagram
For model, technology and specic parameters please refer to product name-
plate.
Treatment: Don't put the abandoned appliance with other unsorted
waste. Such waste should be placed separately for other special use.

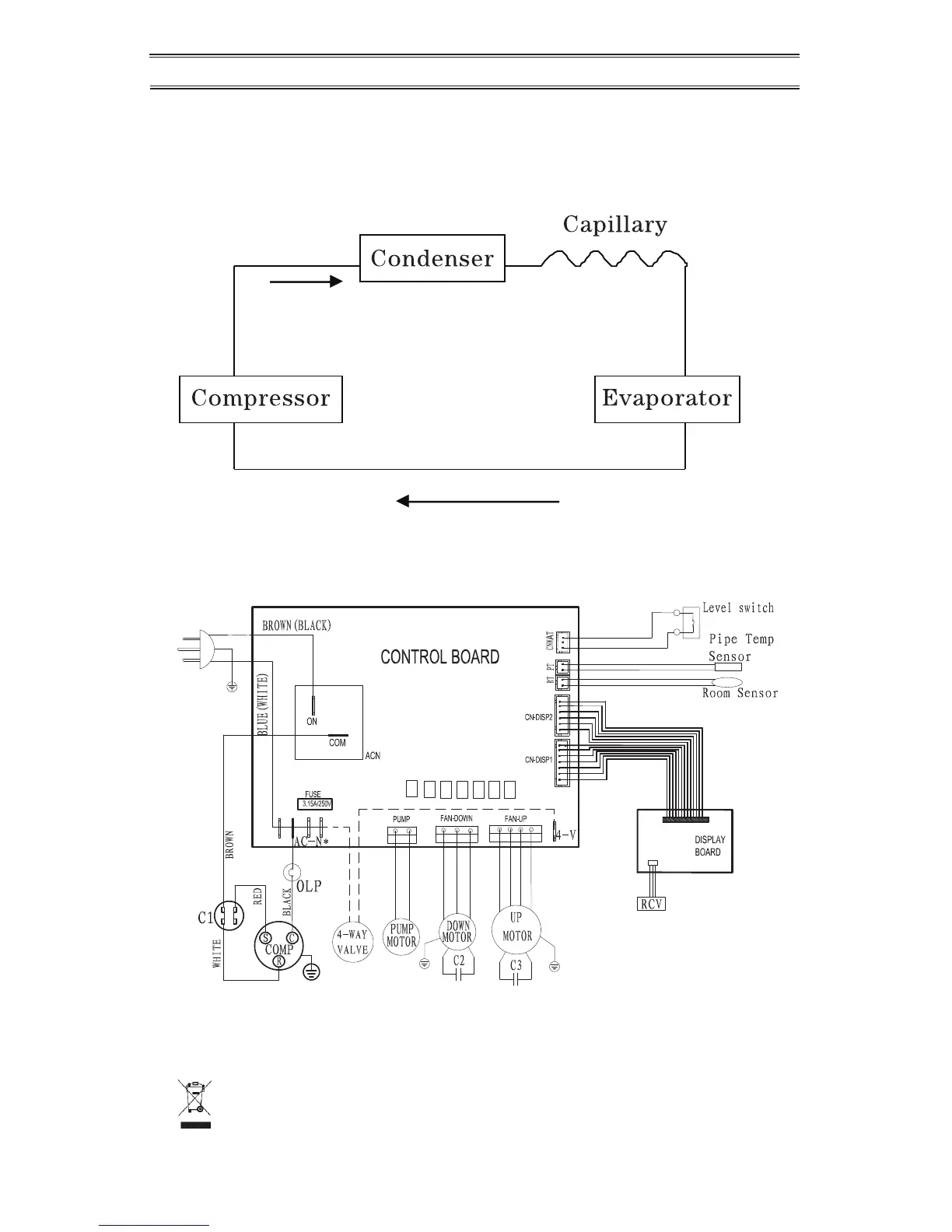

ELECTRIC CIRCUIT DIAGRAM
