WARNING: Before using the portable air conditioner, keep upright for at
least two hours.
INSTALLATION
The air conditioner can be easily moved in the room. In the moving process,
ensure that the air conditioner is in the upright position and the air conditioner is
placed on a at surface. Do not install and use the air conditioner in the bathroom
or other humid environment.
1. Install the heat pipe assembly (as shown in Figure 1):
Screw the heat pipe assembly (exhaust tting end) into the exhaust port on the
rear panel (counterclockwise).
2. Half open the window, and mount the window sealing plate assembly to the
window (as shown in Figure 2 and Figure 3); the assembly can be placed in hori-
zontal and vertical directions depending on your need.
2a. Pull various components of the window sealing plate assembly open, adjust
their opening distance to bring both ends of the assembly into contact with the
window frame.

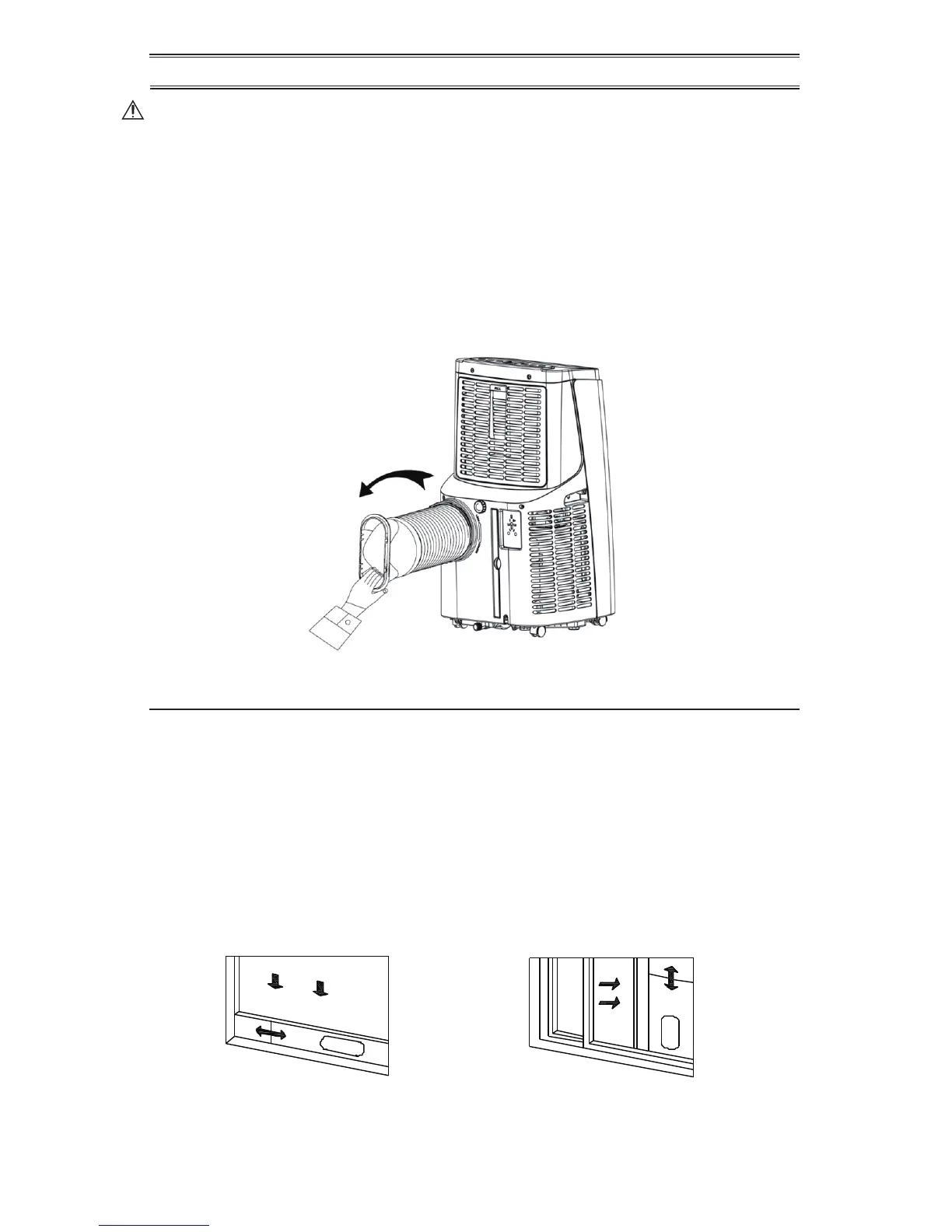

Figure 1
Figure 2 Figure 3
To Next Page
