Avenger JHS-A018-10KR - Appliance Placement and Heat Pipe Connection; Heat Pipe Installation Notes

www.factorybuysdirect.com
7M130004/5-01
INSTALLATION CONT.
3. Move the appliance with installed heat pipe and ttings in front of the window.
The distance between the body and walls or other objects shall be least .20
inches (as shown in Figure 4).
4. Elongate the heat pipe and snap the at end of the heat pipe into the elliptical
hole of the window sealing plate assembly (as shown in Figure 5 and Figure 6).
NOTE:
1. The at end of the heat pipe joints must be snapped into place.
2. The pipe cannot be distorted or have substantial turning (greater than 45
degrees). Keep the ventilation of the heat pipe unobstructed.
*IMPORTANT NOTICE:
The length of the exhaust hose should be 11"-59", and this length is based on the
specications of the air conditioner. Do not use extension tubes or replace it with
other different hoses as this may cause a malfunction. Exhaust must be unob-
structed; otherwise it may cause overheating.

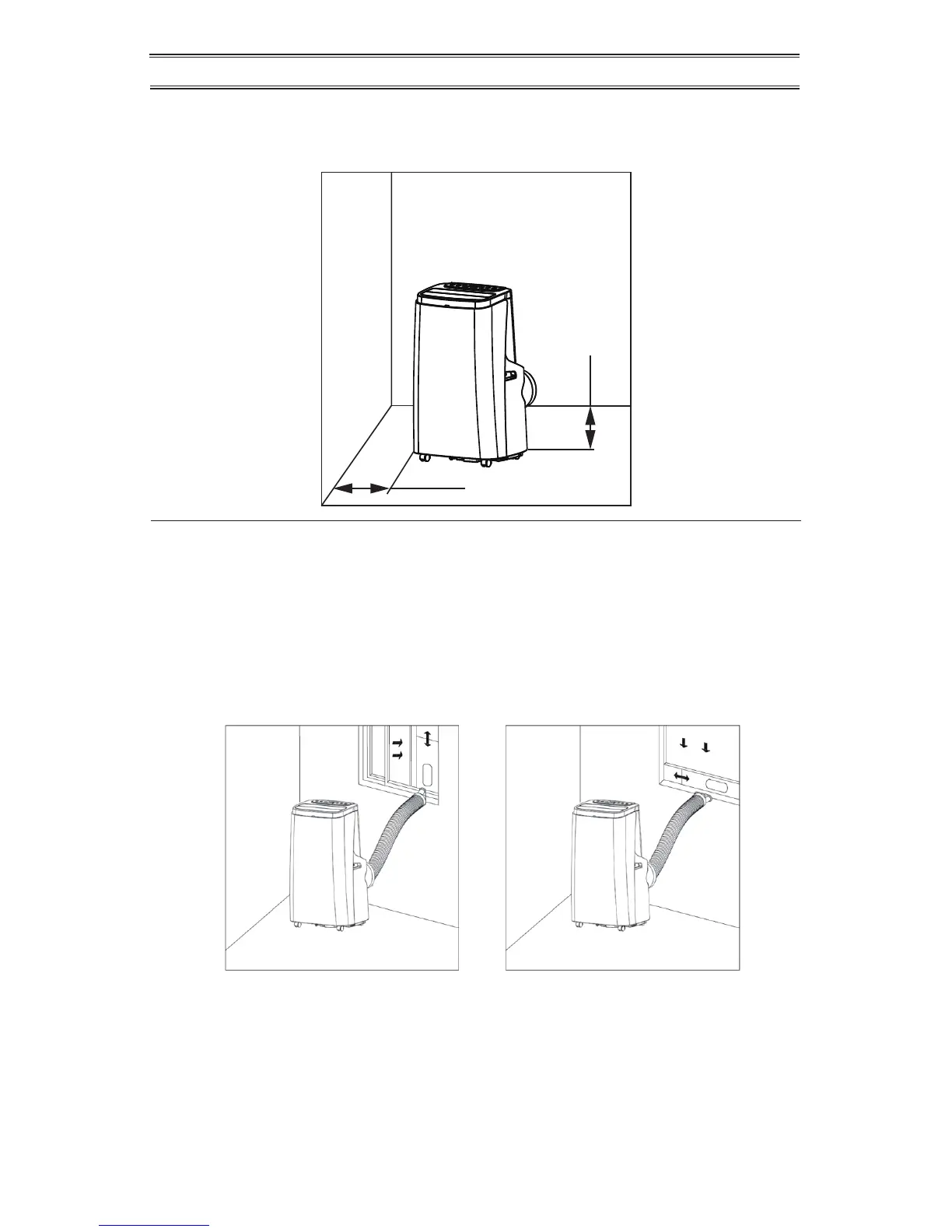

Figure 4
Figure 5 Figure 6
20 in.
20 in.
