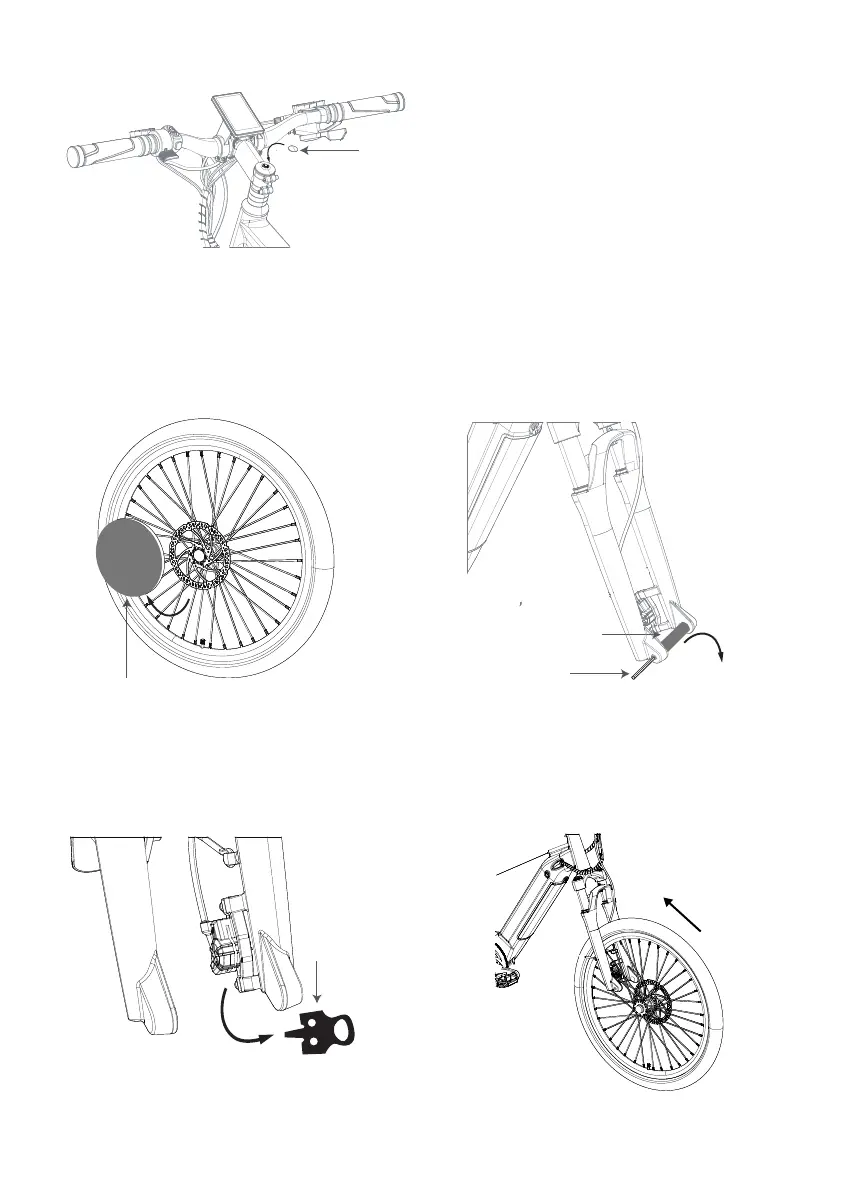

Step 4. Front wheel installation.
A. Take out front wheel, remove black protection
guard.
Rubber Cover
6mm Hex Key
Black Protection Guard
Plastic Insert
Barrel Shaft
C. Take out the plastic insert of front wheel brake
caliper.
B. Use 6mm hex key to loosen front fork barrel shaft
bolt, take out barrel shaft.
D. Place the front suspension fork onto the front wheel
and insert the barrel shaft bolt back. Ensure the brake
rotor is between the brake pads of the brake caliper.
