12
Step 9:

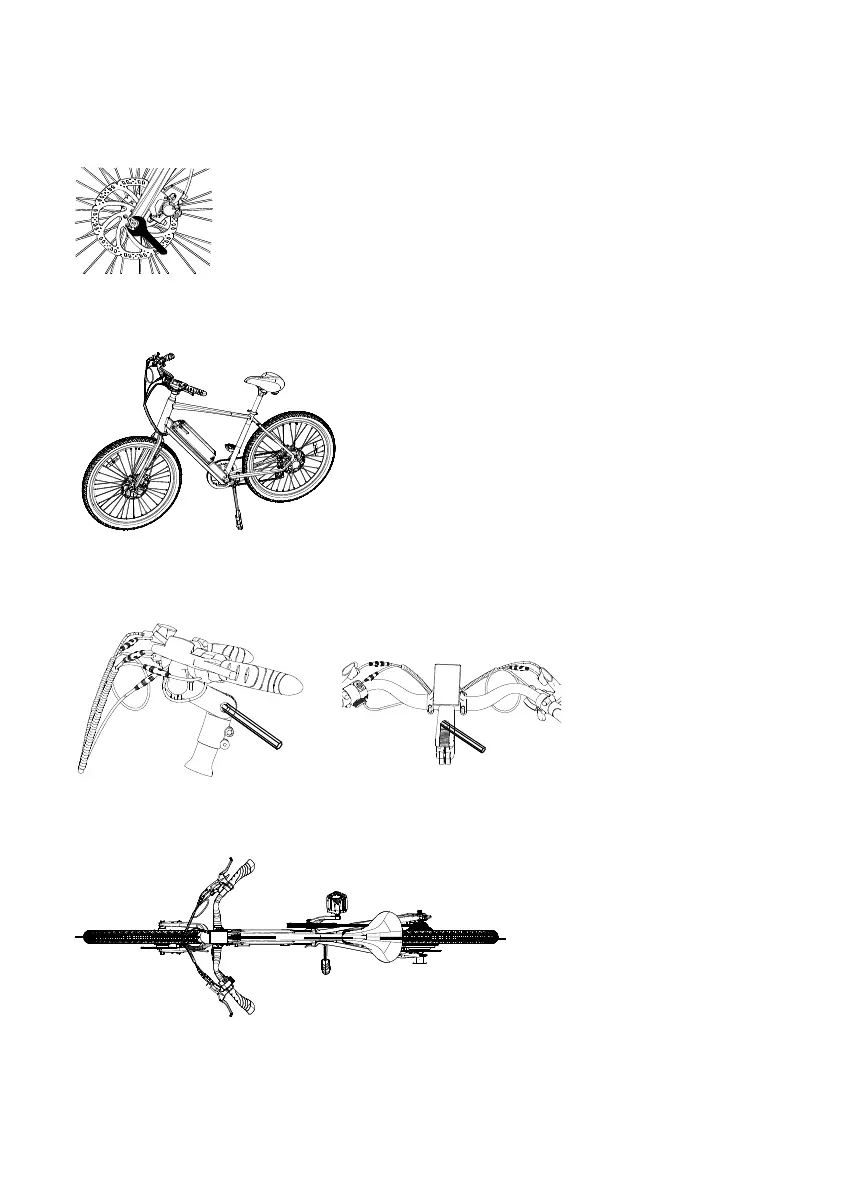

Centralized the stem to make sure it's aligning to the center line of the front tire. Use 5mm hex key to tighten the stem
cap screw ( 8-12 Nm) ; Use 5mm hex key to tighten the two stem screws on the side ( 5-6 Nm). Cover the stem rubber cap.
D.Use a 15mm open wrench to tight the wheel axle bolt to recommended torque value at 25-30 Nm.
Step 10:
Perform a handlebar twist test to ensure the handlebar stem is secure.
WARNING: an improperly secured front wheel and/or handlebar stem can cause loss of control, accidents,
serious injury, or death. Check that the front wheel and handlebar stem are properly secured to
the bike during assembly and before each ride.
Step 8:
Put the kickstand down to hold the bike up.
Brace the front wheel. Stand at the front of the bike, facing the handlebar, and brace the front wheel
between your feet and lower legs.
