13
Try to twist the handlebar.
Hold both handlebar grips and push forward with one hand while pulling back with the other.
Push and pull at the same time with about 20 lb (9 kg) of force with each hand. .
Ensure the handlebar and wheel stay properly aligned. The handlebar and handlebar stem should be tightly secured
perpendicular to the front wheel..
Repeat the twist test pulling/pushing with the opposite hands, again with 20 lb (9 kg)of force pulling with one
hand and 20 lb (9 kg) of force pushing with the other.
If needed, align the handlebar and stem and torque the stem clamp bolts evenly to the specification for
the handlebar stem clamp bolts. After torqueing the stem clamp bolts to the proper specification, perform the twist test again.
If the handlebar still moves, contact Product Support.

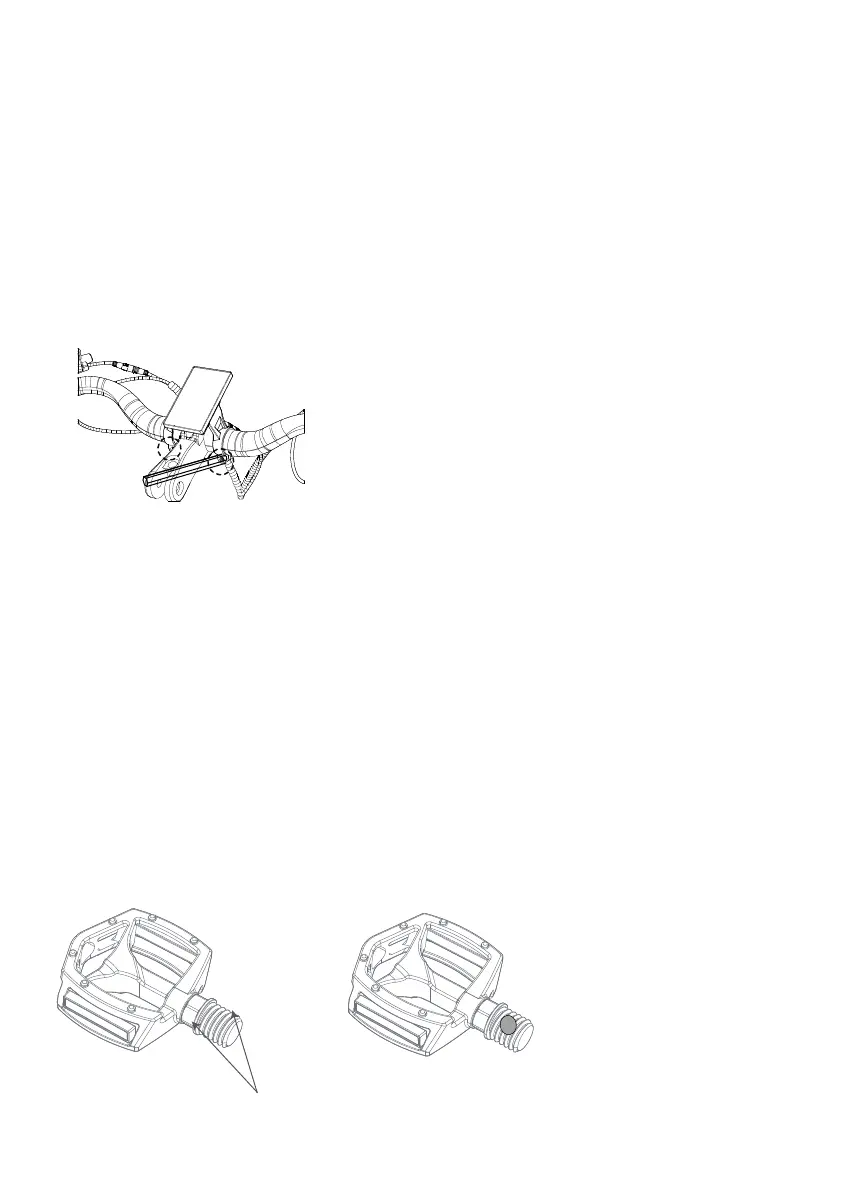

Step 11: Use 3mm hex key to tighten the display clamp to desired angle .
Step 12: Use a pedal wrench to install the pedals. Locate the pedal with a smooth pedal axle exterior and an “R” stamped
into the end of the pedal axle, which indicate it is the right pedal. The right pedal goes on the crank on the right side of the
bike (which has the drivetrain gears and is the same as a rider’ s right side when riding).
The right pedal (1) is threaded so that it is tightened by turning clockwise. Apply grease to the threads and
carefully thread the right pedal onto the crank on the right side of the bike slowly and by hand. Do not cross thread or
damage the threads.
The left pedal (2) is reverse-threaded and tightens counterclockwise. Ensure the remaining pedal has notches
on the exterior of the axle and an “L” stamped into the end of the axle. Apply grease and carefully thread the pedal onto the
left crank by hand slowly. Do not cross thread or damage the threads.
Torque each pedal to 35 Nm.
Identifying marks Right pedal (has a “R” sticker) tightens clockwise Left pedal (has a “L” sticker) tightens
counterclockwise
