11

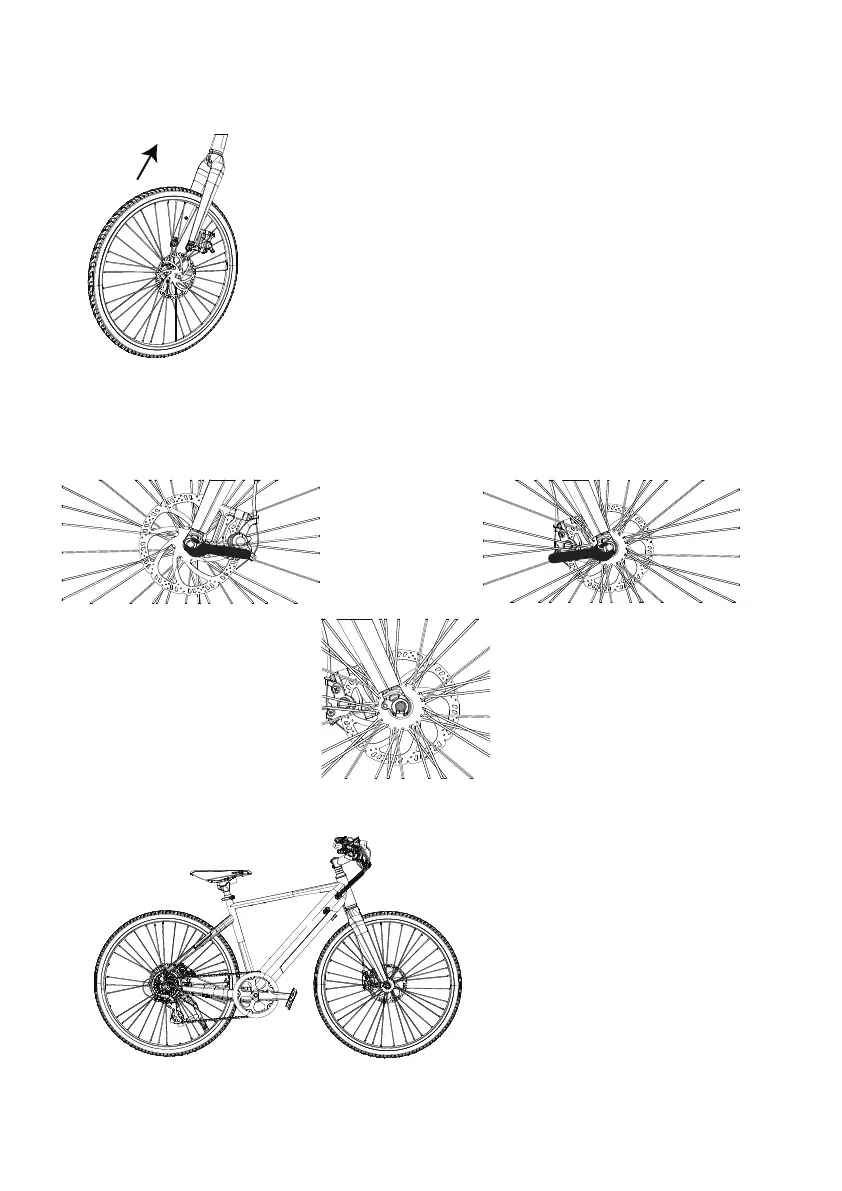

B. Carefully install the front wheel and make sure the brake rotor sits in between the braking pads in the
brake caliper; the flat washer on the axle should sit outside of the fork dropout.
Caution: Never touch the brake rotor, especially when the wheel and/or bike is in motion, or serious injury could occur. Hand
oils can cause squeaking and decrease brake performance.
Step 5: Put the kickstand down to hold the bike up
Step 6: Adjusting the display and handlebar
A. Stand in front of the bike and clamp front wheel between both legs, verify the handlebars are straight and
in line with the frontwheel. Make sure the pinch bolts are tight and you can not turn the stem freely from
the front wheel.
WARNING: an improperly secured front wheel and/or handlebar stem can cause loss of control, accidents,
serious injury, or death. Check that the front wheel and handlebar stem are properly secured to
the bike during assemly and before each ride
C. Use a 15mm open wrench to tight the wheel axle bolt to recommended torque value at 25-30Nm.
