11

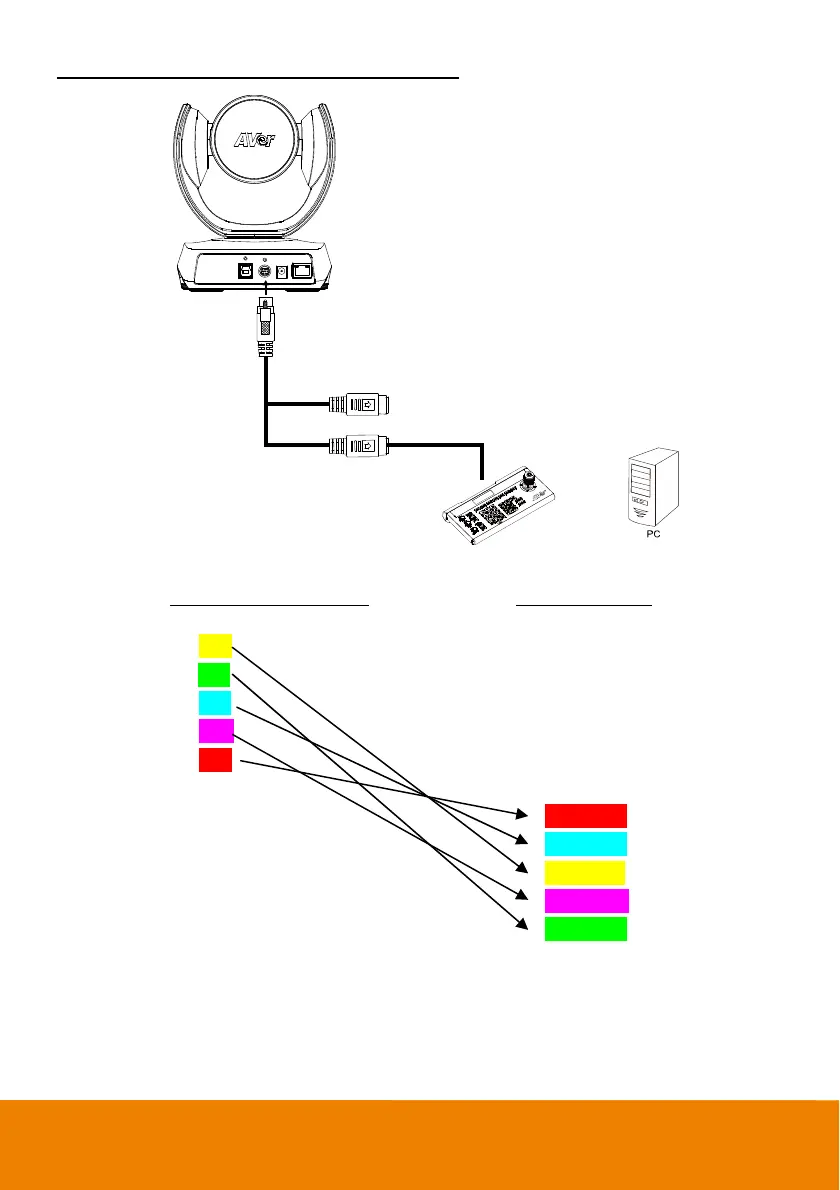

Use the supplied RS232 mini DIN9 to mini DIN8 cable
VISCA out (Female)
VISCA in (Female)
Camera controller
RS232 mini DIN9
to mini DIN8 cable**
or
Mini DIN8
to DB9 cable*

Camera controller or PC
(DB9)
Camera
(Mini DIN8)
1. DCD 1. DTR (IN)
2. RXD 2. DSR (IN)
3. TXD 3. TXD (IN)
4. DTR 4. GND (IN)
5. GND 5. RXD (IN)
6. DSR 6. GND (IN)
7. RTS
8. CTX
1. DTR (OUT)
9. RI
2. DSR (OUT)
3. TXD (OUT)
4. GND (OUT)
5. RXD (OUT)
6. GND (OUT)

