AVer PTZ310 - RS232 Port Pinout; RS232 Cable Pin Configuration

6
●

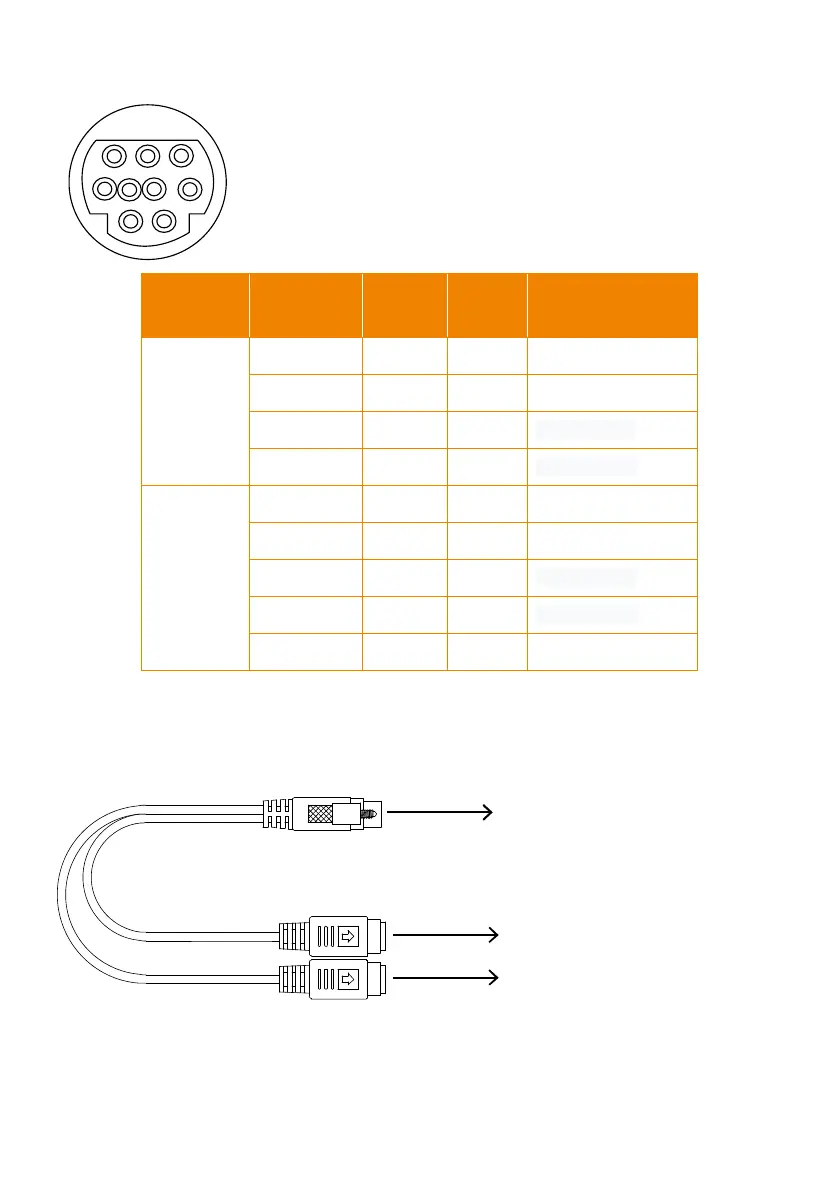

RS232 Port Pin Definition
1
2
345
6
789
Function
Mini DIN9
PIN #
I/O Type Signal Description
VISCA IN
1 Output DTR Data Terminal Ready
2 Input DSR Data Set Ready
3 Output TXD Transmit Data
6 Input RXD Receiver Data
VISCA OUT
7 Output DTR Data Terminal Ready
4 Input DSR Data Set Ready
8 Output TXD Transmit Data
9 Input RXD Receiver Data
5 --- --- Not connect
●
RS232 mini DIN9 to mini DIN8 Cable Pin Definition
Connect to AVer camera
Connect to next camera
Connect to controller or PC
IN(Mini DIN8)
OUT(Mini DIN8)
Mini DIN9
