Assembling the Network Control Module
1. Turn over the 6055 Docking Module and 6054
Network Control Module.
2. Using a Philips screwdriver, remove the end cap from
the Network Control Module.
3. Using a Philips screwdriver, loosen two screws on the
6055 Docking Module and slide the connector plate
under the screws. Tighten the screws.

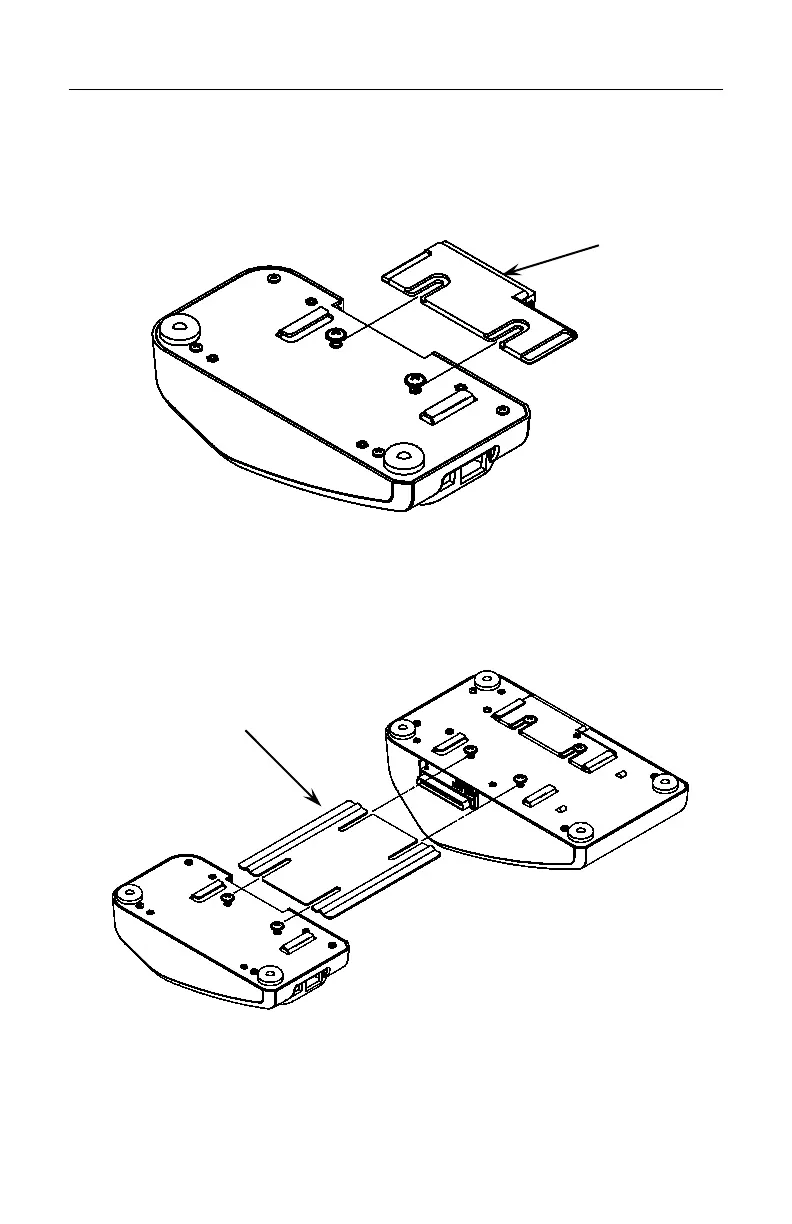

Connector Plate
Docking
Module
Network Control
Module
Network Control
Module
End
Cap
