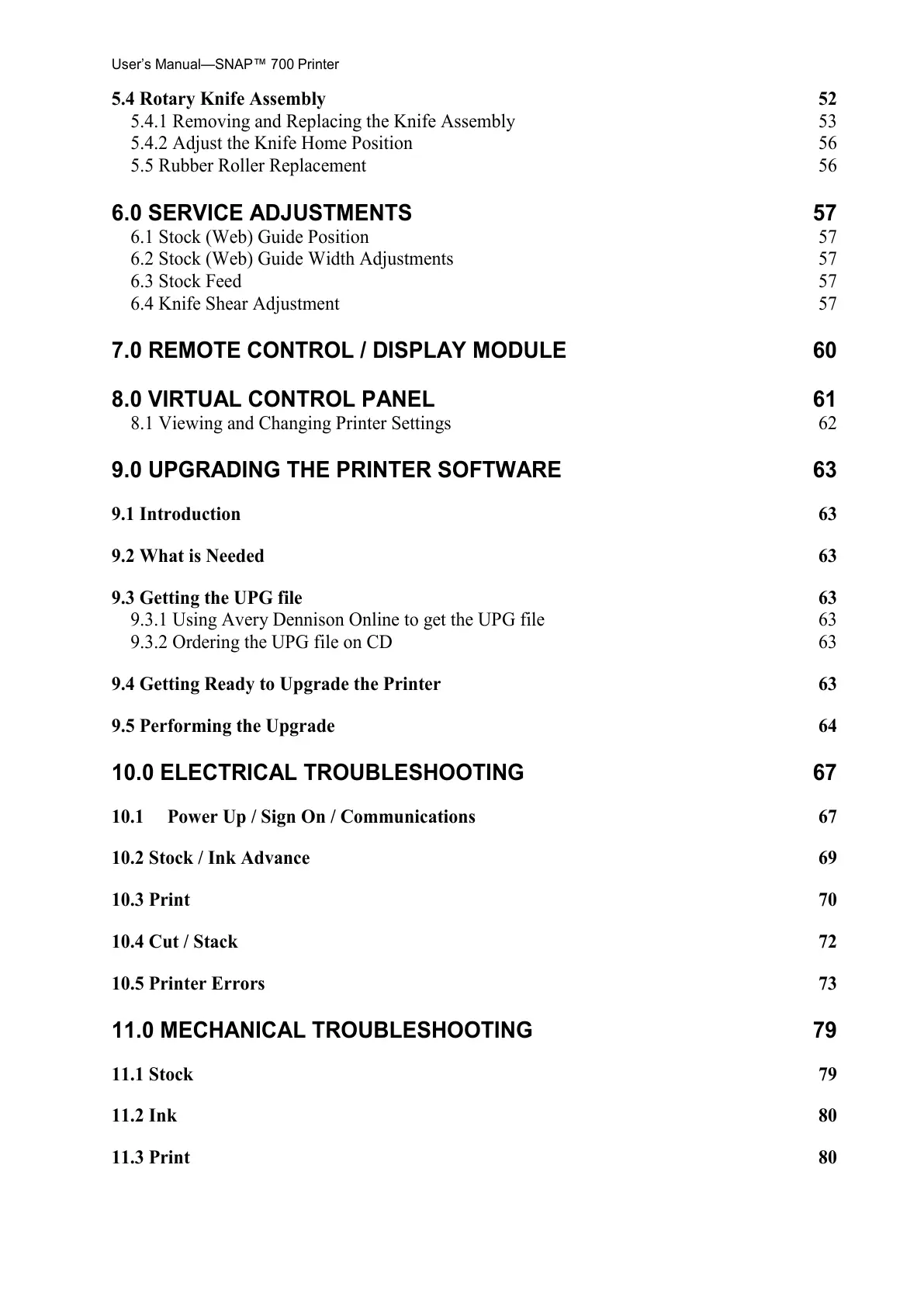

User’s Manual—SNAP™ 700 Printer
5.4 Rotary Knife Assembly 52
5.4.1 Removing and Replacing the Knife Assembly 53
5.4.2 Adjust the Knife Home Position 56
5.5 Rubber Roller Replacement 56
6.0 SERVICE ADJUSTMENTS 57
6.1 Stock (Web) Guide Position 57
6.2 Stock (Web) Guide Width Adjustments 57
6.3 Stock Feed 57
6.4 Knife Shear Adjustment 57
7.0 REMOTE CONTROL / DISPLAY MODULE 60
8.0 VIRTUAL CONTROL PANEL 61
8.1 Viewing and Changing Printer Settings 62
9.0 UPGRADING THE PRINTER SOFTWARE 63
9.1 Introduction 63
9.2 What is Needed 63
9.3 Getting the UPG file 63
9.3.1 Using Avery Dennison Online to get the UPG file 63
9.3.2 Ordering the UPG file on CD 63
9.4 Getting Ready to Upgrade the Printer 63
9.5 Performing the Upgrade 64
10.0 ELECTRICAL TROUBLESHOOTING 67
10.1 Power Up / Sign On / Communications 67
10.2 Stock / Ink Advance 69
10.3 Print 70
10.4 Cut / Stack 72
10.5 Printer Errors 73
11.0 MECHANICAL TROUBLESHOOTING 79
11.1 Stock 79
11.2 Ink 80
11.3 Print 80
