Stage 4810
3 Connect the included IEC power cable(s) between the Power
connector(s) on any Stage 48 units present and your power
source.
4 Press the Power switch on the first Stage 48 to power on the
device. The Status LED indicator is lit solid yellow while the
Stage 48 initializes.
5 If applicable, for the second Stage 48 connect power and
power on the device.
6 Wait for the Stage 48(s) to initialize. Initialization is complete
when the Power and Status LEDs on the Stage 48 front panel
are lit solid green.
7 Power on Mix Rack or SC48 and wait for the Ethernet Snake
card to initialize, indicated by a lit green Status LED. Audio
will not pass until the Ethernet Snake card is fully initialized.
8 Both the Act and Sig LEDs on Stage 48 (s) and the Ethernet
Snake card in Mix Rack or SC48 should be lit for all connected
Ethernet snakes.
9 You should now confirm your I/O in VENUE.
Confirming I/O
After making snake connections and powering up your system,
you can confirm your system’s available Stage I/O.
To confirm I/O in your system:
1 Go to Options > Devices to view your system hardware status.
The newly installed hardware should be displayed. All local
and remote Stage I/O appears in the Mix Rack or SC48 Stage
I/O slots in the graphic.
2 Go to the Patchbay page and click the Stage tab to verify that
the inputs and/or outputs are available in the Patchbay.
In pre-configured SC48 Remote systems, Stage I/O in the Patch-
bay corresponds with physical I/O as follows:
Inputs
Stage inputs 1–32 are located in the top two slots of Stage
48 and appear in the Patchbay under
Analog Card A and Analog
Card B
. Inputs 33–48 are located in slot C of the console and ap-
pear in the Patchbay under
Analog Card C.
Outputs
Stage outputs 1–16 are located in the bottom slot of
Stage 48 and appear in the Patchbay under
Analog Card D. If an
additional optional output card is installed either locally in SC48
or in a second Stage 48, outputs are available as channels 17–32.
A flashing red Power LED indicates a potential power prob-
lem. Power down, unplug Stage 48, and verify the power
source. See “Recessed Pushbutton” on page 6 for informa-
tion on LED indicator codes.
If the Sig LED does not light after you have connected a
Stage 48, make sure the ID switches on all connected
Stage 48 units are set properly.

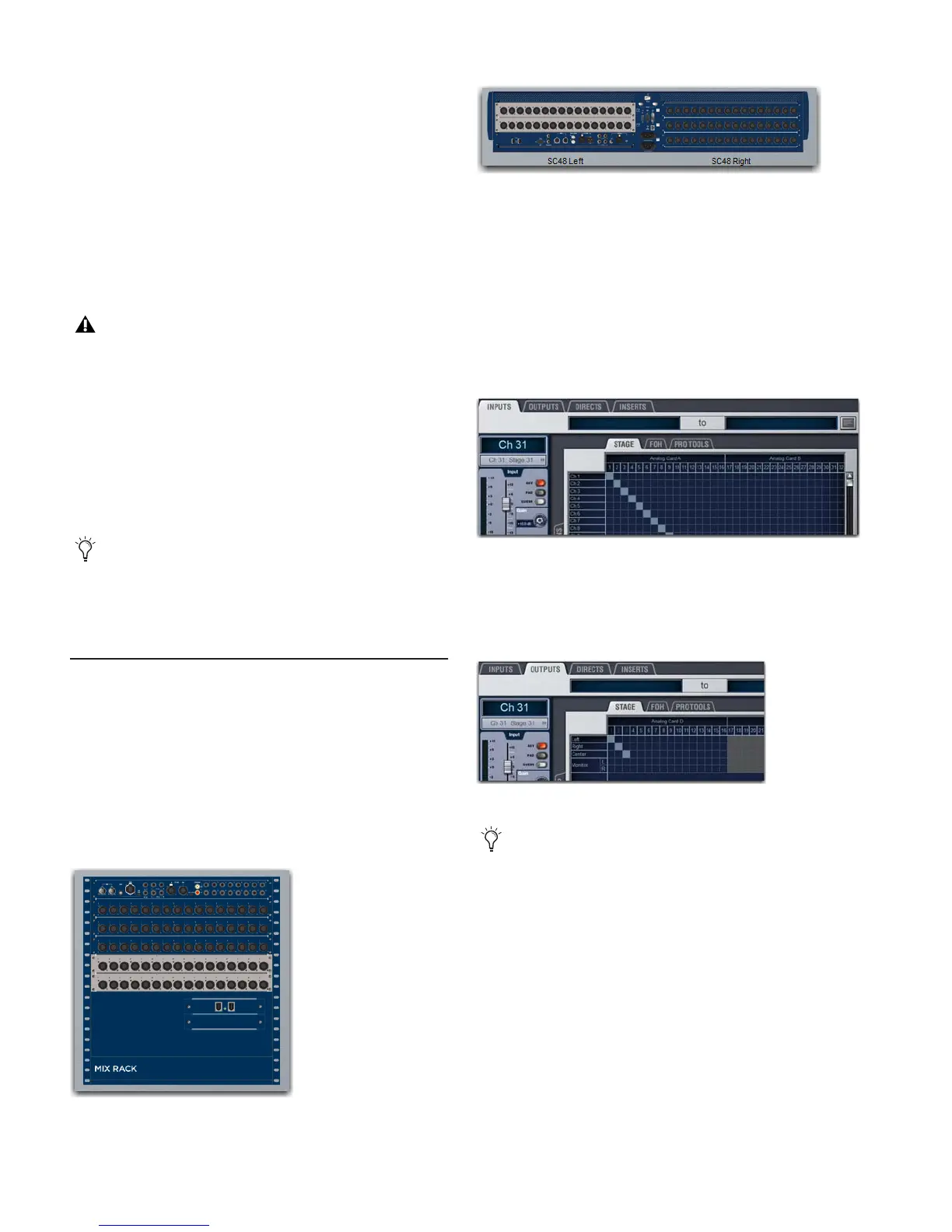

Detail of Options > Devices page showing installed I/O in Mix Rack
Detail of Options > Devices page showing installed I/O in SC48
Stage Inputs in the Patchbay
Stage Outputs in the Patchbay
If you have converted a standard SC48 to an SC48 Remote
system, the local and remote I/O channel configuration may
differ.
