WIRELESS ALARM KIT
EN
C - INSTALLATION

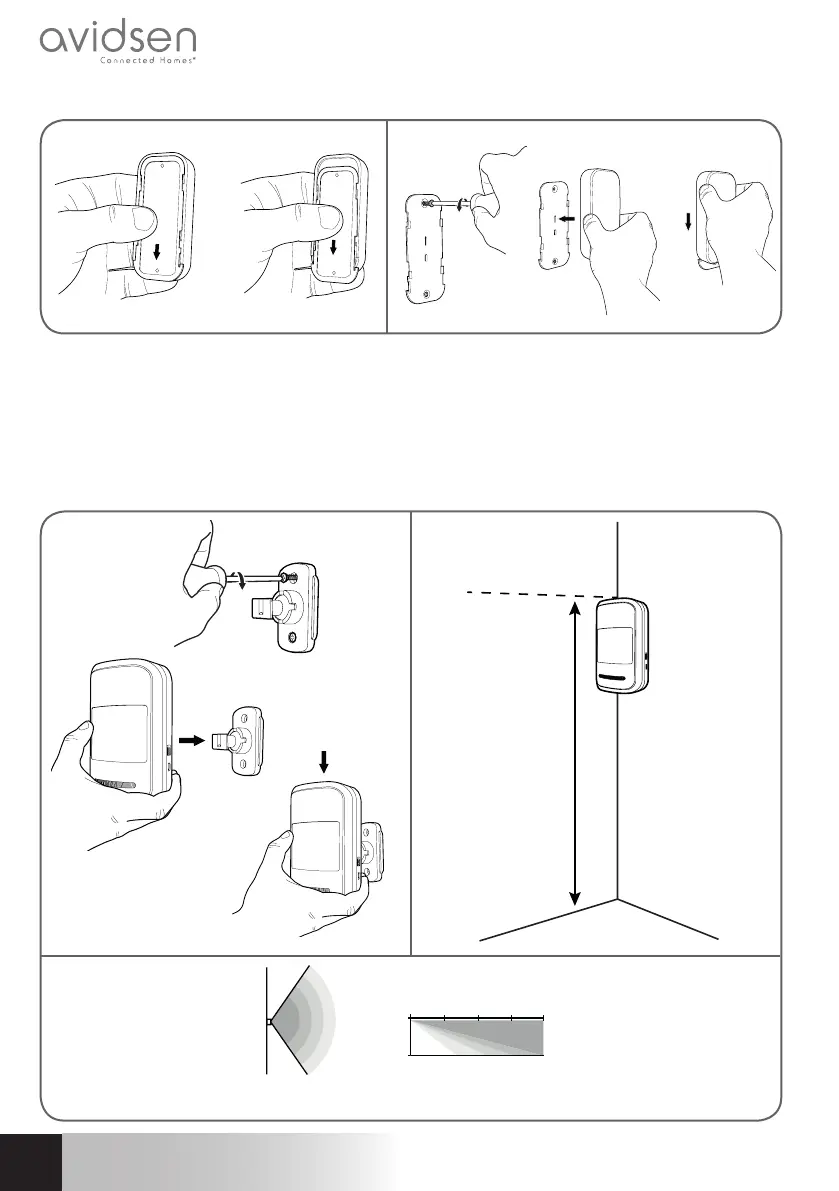

The opening detectors can be fixed to either a window or door using the double-sided strip or
screws and wall plugs suitable for the type of surface. We recommend that the magnet is placed on the
moving part (door or window) and the detector is placed on the frame. Ensure that you respect the mounting
orientation: the markers on the side of the magnet and those on the side of the detector must line up when
the door or window is closed.
Movement detector
Fix the wall support using the screws provided and attach the detector. It must be installed 2.2 metres above
the floor. Adjust the support to modify the distance and angle.
110°
Vue de dessus Vue de côté
0m
2m
0m
2m 4m 6m 8m
ON
OFF
DC-5V
Ground
ON
OFF
DC-5V
ON
OFF
DC-5V
2.2m
above
the floor
