System Overview 1-19
PFD ANNUNCIATIONS
The top strip of the PFD is dedicated for autopilot mode
annunciators. Active modes are depicted in green and armed
modes are depicted in cyan. Alerts are depicted in yellow and
are listed in order of priority. If multiple alerts are received, then
the highest priority message is displayed.
Whenever “UNDERSPEED” or “OVERSPEED” are displayed
while the autopilot is coupled, all engaged (green) autopilot mode
annunciators will flash.

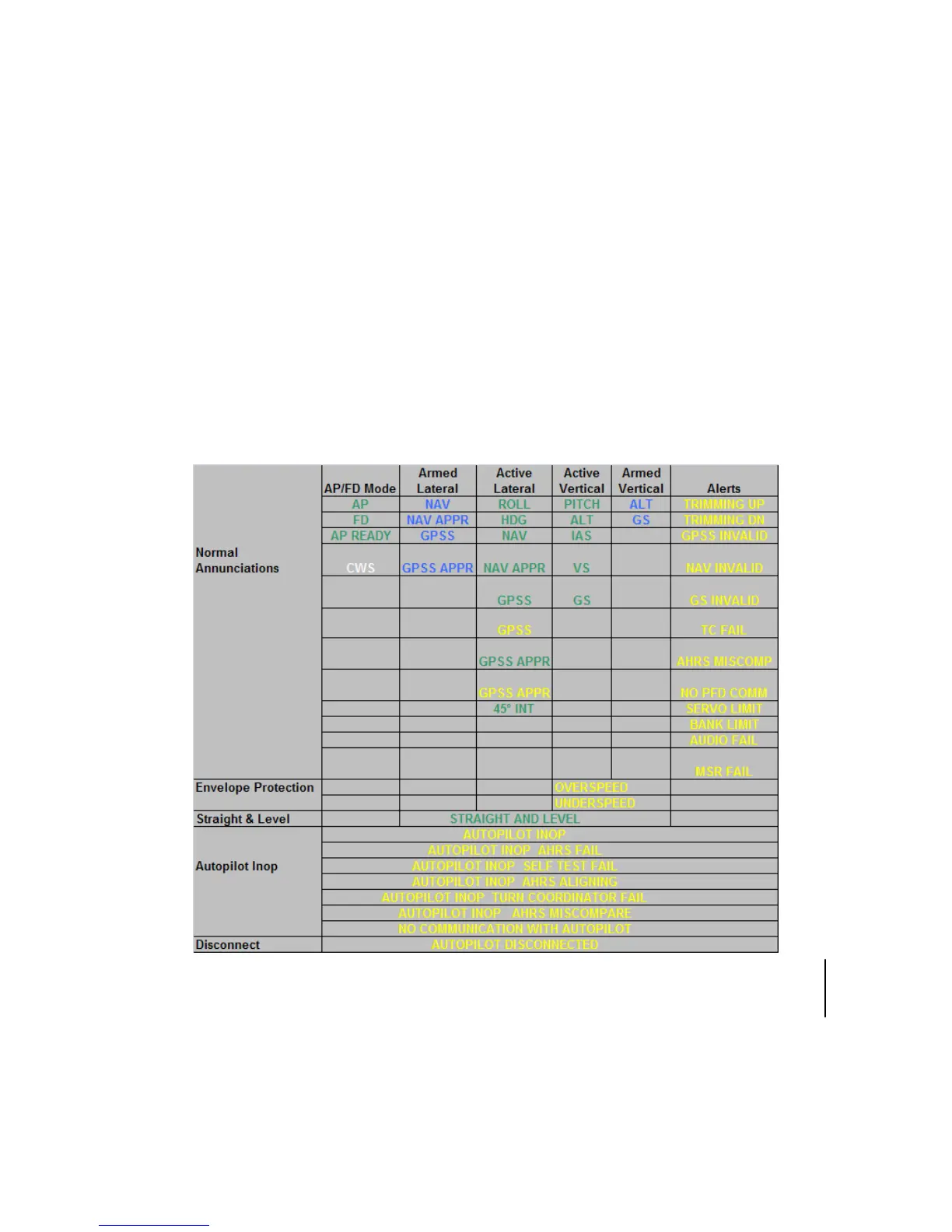

The tables below are a listing of all annunciations that are
possible with the DFC90 system.
DFC90 Annunciations
Note: In Aspen PFD equipped aircraft, “AP READY” is shortened
to “AP RDY”.
