Overview

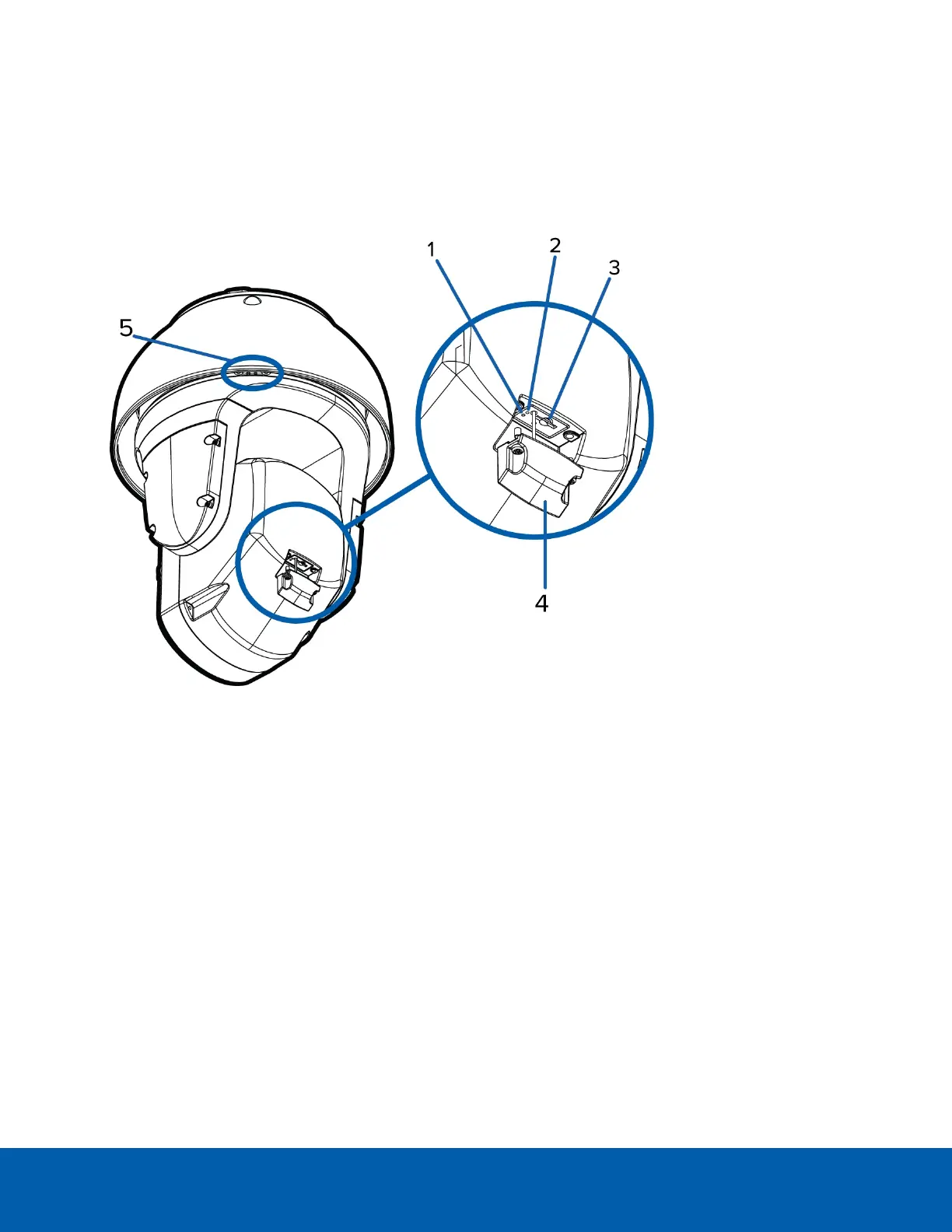

Rear View
1.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
2.
Connection status LED indicator
Green LED provides information about device operation. For more information, see Connection Status
LED Indicator on page24.
3.
microSD card slot
Accepts a microSD card for onboard storage. For more information, see (Optional) Configuring
microSD Card Storage on page16.
4.
microSD cover
Protective cover for the microSD card slot. Uses tamper resistant screws to secure the cover.
5.
Sprayer mounting location
(Available on -WP models only.) An optional washer can be mounted at this location for cleaning the
lens and IR window . Connect digital output 1 from the camera to the washer pump. This will allow the
camera WebUI or Avigilon Control Center to activate the washer whenever a washing sequence is
initiated. For more information, please refer to the Camera WebUI guide. The washer and cleaning
Overview 1
