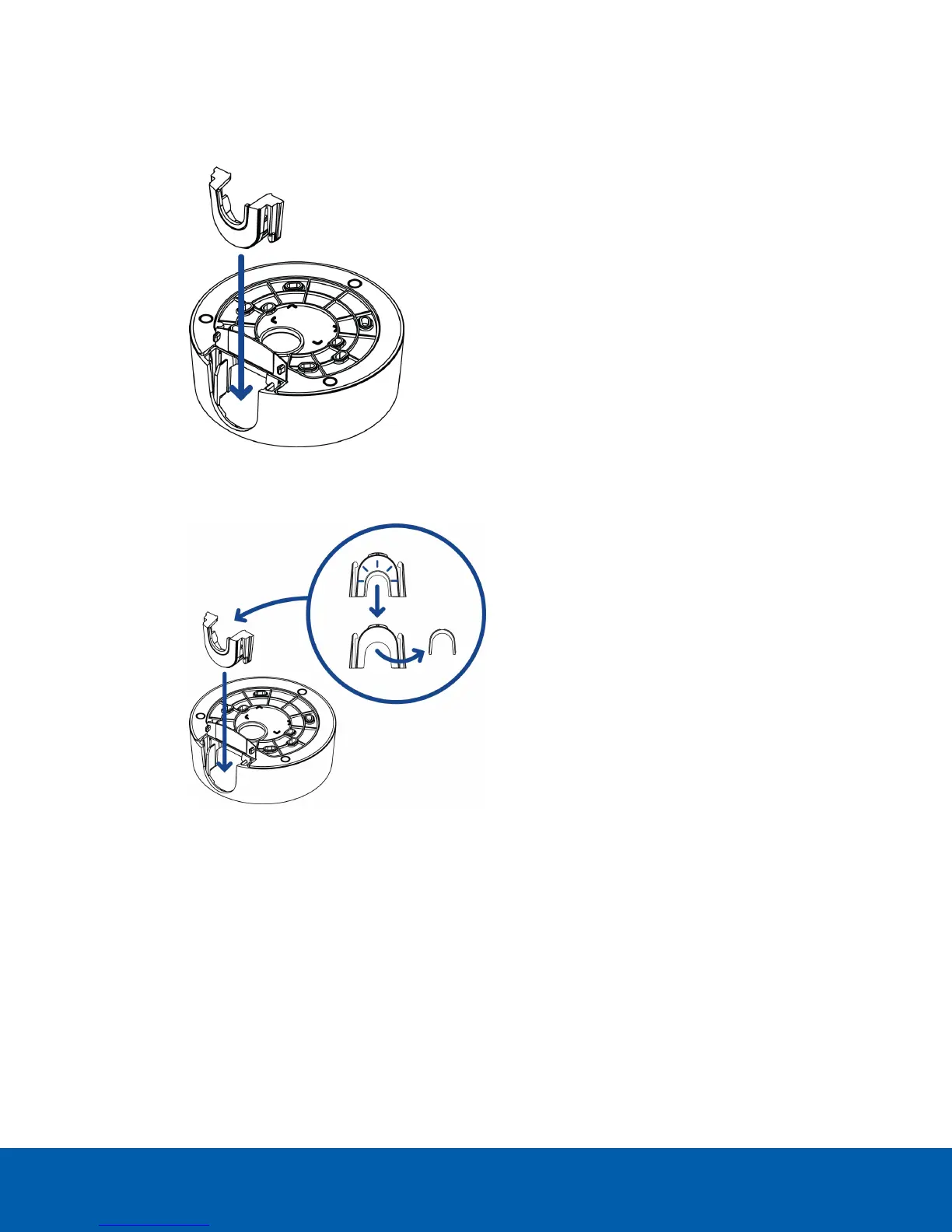

4. Depending on the conduit used, make the required adjustments to the side cable entry hole:
l If you are using a 1/2" or 20mm interior conduit, install the provided side conduit cover on to the
mounting adapter.
l If using ¾” or 25mm interior conduit, remove the center knockout piece on the provided side
conduit cover then install the side conduit cover on to the mounting adapter.
Mounting the Dome Camera Using the Side Cable Entry 10
