5. Drive 4 screws to fasten the mounting adapter to the ceiling or wall.
Mounting the Dome Camera to an Electrical Box
Perform the following steps if the required electrical components and cables will be contained in an electrical
gang box inside the mounting surface.
1. Pull the required Ethernet cable through the cable entry hole.
Make sure the Ethernet cable is threaded through the sealing grommet from the camera base. For more
information, see Inserting Cables through the Sealing Grommet on page7.
2. Use pan head screws to install the mounting adapter to the electrical box.

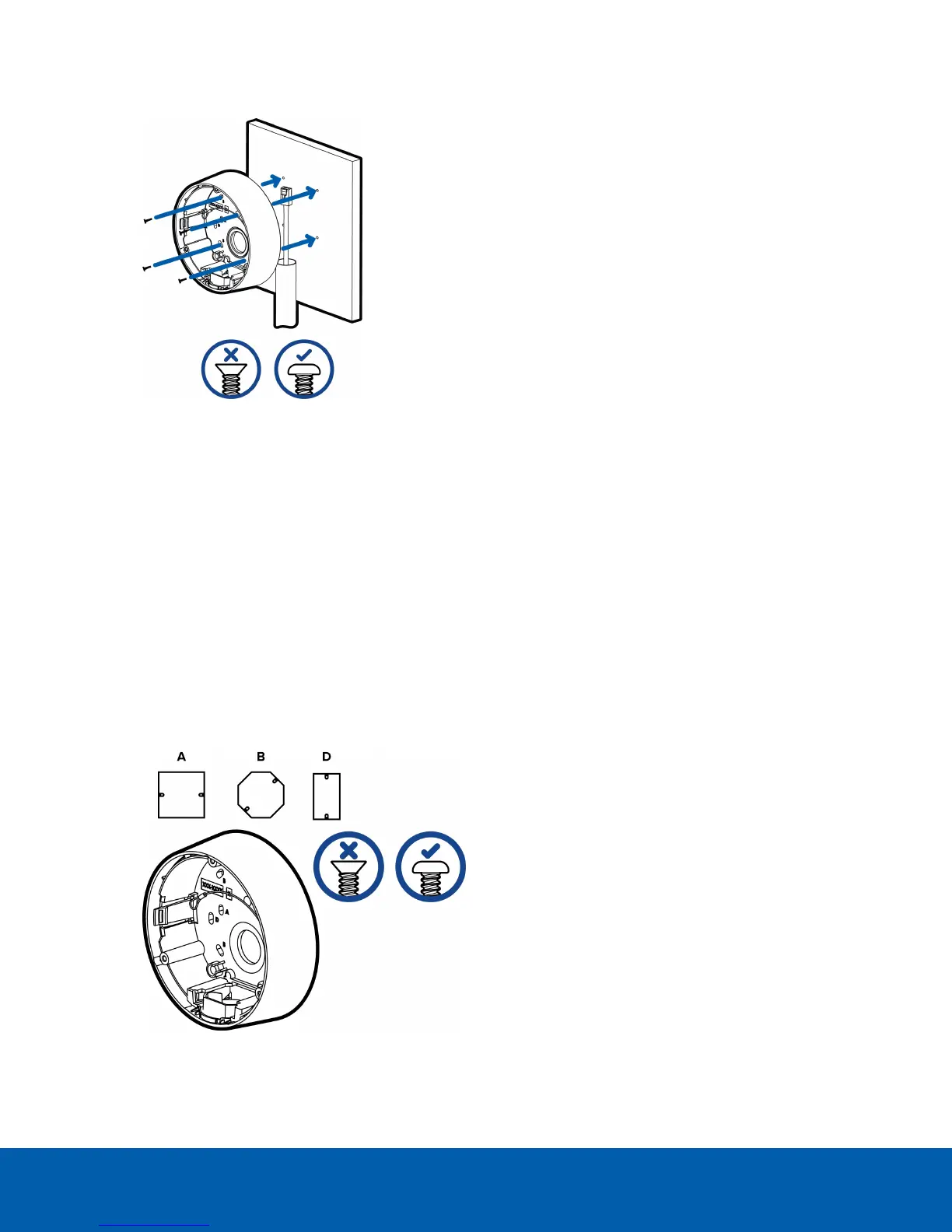

Select the hole configuration that matches the electrical box shape:
A — UK standard single gang box
B — Octagon gang box
D — US standard single gang box
Installing the Camera Base to the Mounting Adapter
After you install the mounting adapter, mount the camera base to the adapter.
Mounting the Dome Camera to an Electrical Box 12
